Section 1: System Introduction
1.1 Specifications
Downloading Software Support
• PC585 v2.2C uses DLS-3 v1.3 and up.
Flexible Zone Configuration
• 4 fully programmable zones; system expandable to eight
zones using keypad zone inputs and wireless zones
• 38 access codes: one master code, one guard code, two
duress codes, two supervision codes and 32 general
access codes
• 29 zone types; 8 programmable zone attributes
• Normally closed, single EOL and double EOL zone wiring
• Eight wireless zones available using the PC5132 Wireless
Receiver

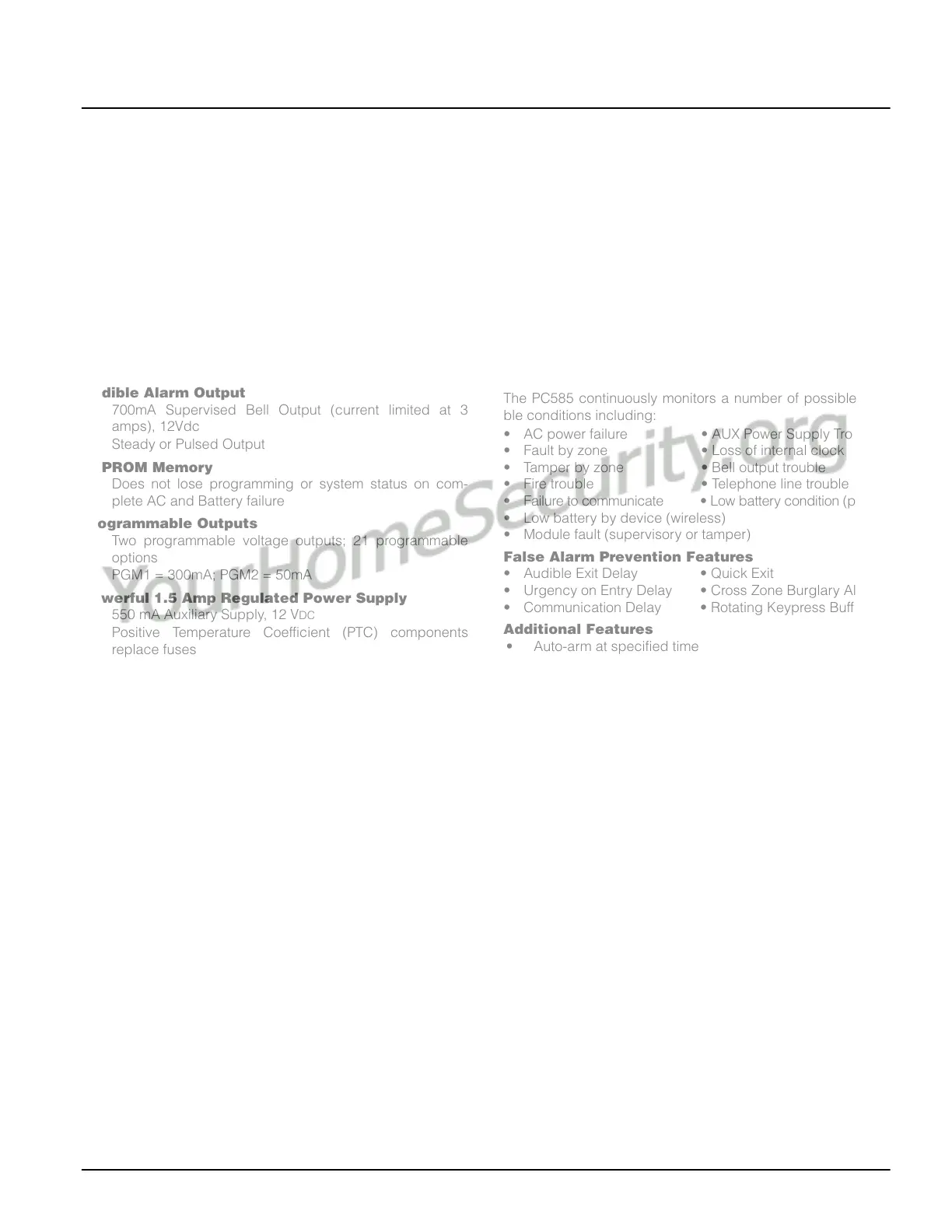

Audible Alarm Output
• 700mA Supervised Bell Output (current limited at 3
amps), 12Vdc
• Steady or Pulsed Output
EEPROM Memory
• Does not lose programming or system status on com-
plete AC and Battery failure
Programmable Outputs
• Two programmable voltage outputs; 21 programmable
options
• PGM1 = 300mA; PGM2 = 50mA
Powerful 1.5 Amp Regulated Power Supply
• 550 mA Auxiliary Supply, 12 VDC
• Positive Temperature Coefficient (PTC) components
replace fuses
• Supervision for loss of AC power, low battery
Power Requirements
• Transformer = 16.0 VAC, 40VA
• Battery = 12 volt 4 Ah minimum rechargeable sealed
lead acid battery
Remote Keypad Specifications
• Keypads available:
- PC1555RKZ 8-zone LED keypad with zone input
- PC5502Z2 2-zone LED keypad with two zone inputs
- PC5508Z 8-zone LED keypad with zone input
- LCD5500Z programmable message LCD with zone input
- LCD5501Z fixed message LCD keypad with zone input
• All keypads have five programmable function keys
• Connect up to eight keypads
• 4-wire (Quad) connection to Keybus
• Built in piezoelectric buzzer
Digital Communicator Specifications
• Supports major communication formats including SIA
and Contact ID
• Residential Dial format
• Event-initiated personal paging
• Three programmable telephone numbers
• Supports GSM1000 cellular communication
• Two account numbers
• DTMF dialing
• DPDT line seizure
• R-button feature
• Split reporting of selected transmissions to each tele-
phone number
System Supervision Features
The PC585 continuously monitors a number of possible trou-
ble conditions including:
• AC power failure • AUX Power Supply Trouble
• Fault by zone • Loss of internal clock
• Tamper by zone • Bell output trouble
• Fire trouble • Telephone line trouble
• Failure to communicate • Low battery condition (panel)
• Low battery by device (wireless)
• Module fault (supervisory or tamper)
False Alarm Prevention Features
• Audible Exit Delay • Quick Exit
• Urgency on Entry Delay • Cross Zone Burglary Alarm
• Communication Delay • Rotating Keypress Buffer
Additional Features
• Auto-arm at specified time
• Keypad-activated alarm output and communicator test
• All modules connect to the system via a four wire Keybus
up to 1000’/305m from main panel
• An event buffer which records the past 128 events with
both the time and date at which they occurred; buffer can
be printed using PC5400 serial interface module, or
viewed with the LCD5500Z keypad.
• Supports the addition of the PC5132 wireless receiver for
integration of wireless devices
• Uploading and downloading capability
• Local downloading capability through the use of the
PC-LINK adaptor
• Added Keybus fault protection: clock and data outputs
have been programmed to withstand shorts to +12v to
prevent control panel damage
1.2 Additional Devices
In addition to the information below, see the back cover for a
DSC module compatibility table.
PC5132 Wireless Receiver
The PC5132 Wireless Receiver can be used to connect up to
8 wireless devices to the system. All devices are spread spec-
trum, 433MHz, fully supervised devices which use standard
‘AAA’ or ‘AA’ alkaline batteries.
Devices available are as follows:
WLS904/WLS904PLWireless Motion Detector
WLS925L Wireless Universal Transmitter
Adds wireless door or window contacts to your system.
