DSC T-Link TL300 - Stand-alone Installation (Modes 2 & 3)

6
Section 4: Stand-alone Installation (Modes 2&3)
Install the TL250/TL300 in a DSC enclosure (model PC5003C) when used in a stand-alone configura-
tion or with the PC5108 module. Connect the + and - terminals to the external 12-24Vdc power source.
NOTE: For UL Listed installations, the power supply used must be UL Listed for the application.
NOTE: For ULC Central Station Fire and Burglary Monitoring configurations please refer to ULC Installa-
tion Sheet part #29002157.

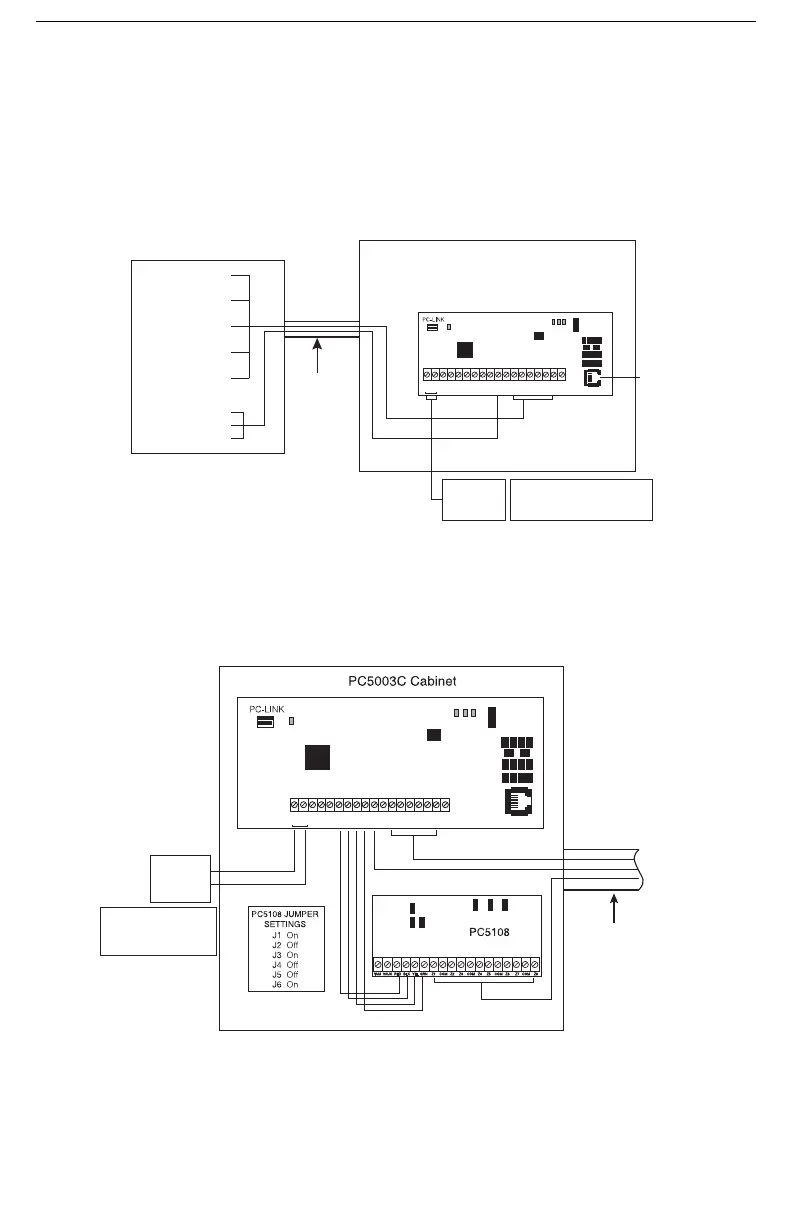

4.1 Stand-alone Mode 2 Configuration
4.2 Input Expander (Mode 3 Configuration)
To expand from 4-zone inputs a PC5108 must be connected to the T-Link TL250/TL300 . Connect
the Keybus from the PC5108 to the Keybus of the TL250/TL300. Devices that require 12V
DC ,
motion detectors, glass-break detectors, etc. will require an external 12V DC power supply.
PC5003C Cabinet
NOTE: Wiring between the control panel and the T-Link
TL250/TL300 must be enclosed in metal conduit.
Outputs
Input
12-24Vdc
TX RX GND RED BLK YEL GRN IN1 IN2 IN3 IN4 EARTHGND GND1 PGM 2
LK
A
CT
SPD
STAT
T-LINK TL250/TL300
12V 275mA
UL Listed
Power Supply
Hardware Rev. 05 or higher:
24V 275mA/360mA, UL Listed
Power Supply can also be used.
CAT5 Cable
(shielded)
10/100 BaseT
Network
PGM1 Trouble Output
IN1 - IN4
Zone Inputs
(Not supervised)
Fire/Burglary
Alarm Panel
Metal Conduit
(20ft max.)
DG009335
+
-
J6
J4
J5
J1
J2 J3
12-24Vdc
GND RED BLK
YEL
GRN GNDIN1 GND
EARTH IN3 IN4IN21 PGM 2
TX RX
LK ACT SPD
STAT
Cat5
Network
10/100 BaseT
T-LINK TL250/TL300
12V 275mA
UL Listed
Power Supply
PGM1 Trouble Outputs
Metal
Conduit
(20ft max.)
Z1 - Z8 Inputs (NO/NC)
(Not supervised)
IN1 - IN4 Inputs (NO/NC)
(Not supervised)
Connect
to Fire/Burg.
Alarm
Panel
Hardware Rev. 05 or higher:
24V 275mA/360mA
UL Listed Power Supply
can also be used
DG009336
+ -
