Specification
18

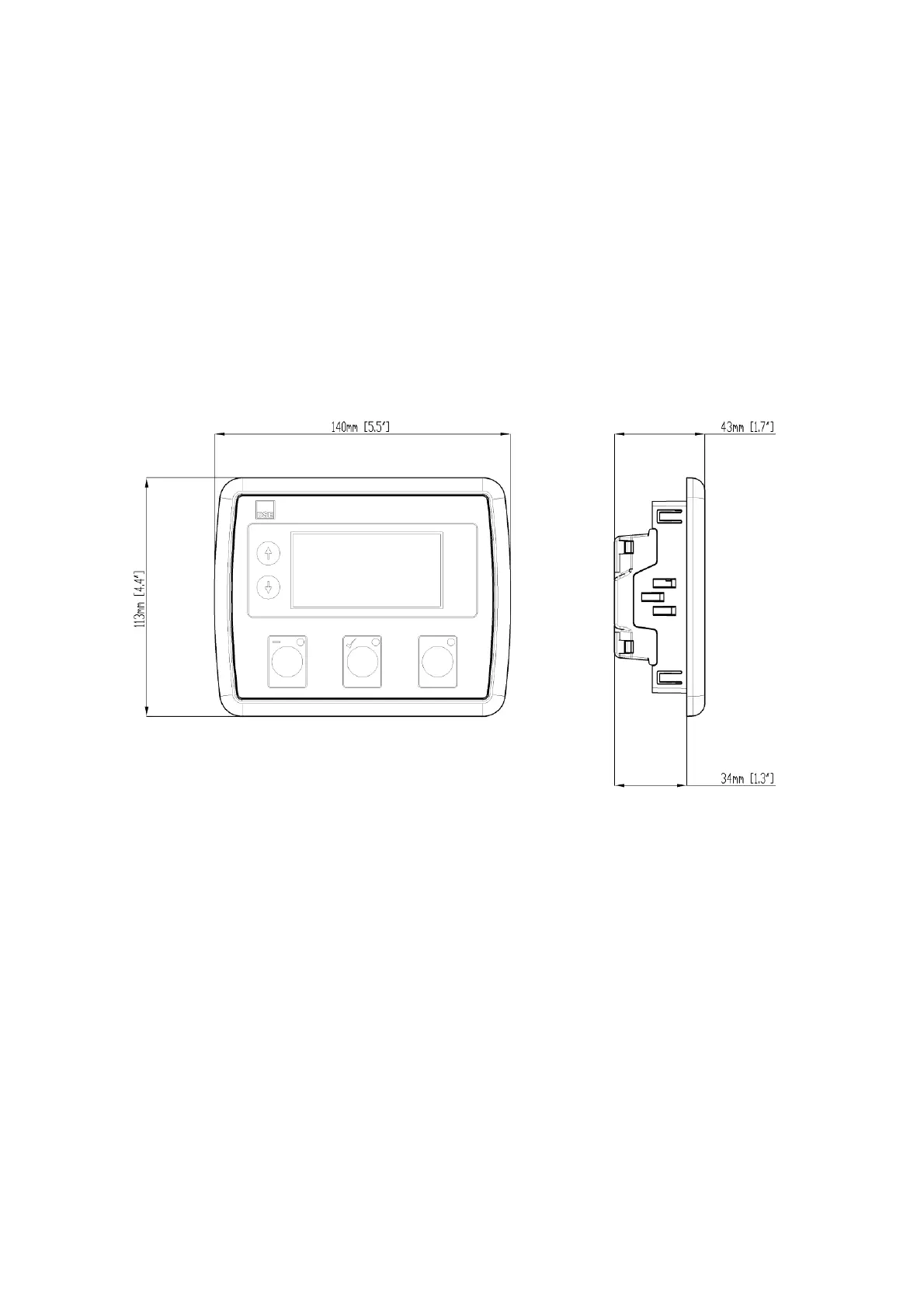

3.13 DIMENSIONS AND MOUNTING
3.13.1 DIMENSIONS
140.0mm x 113mm x 43mm
(5.5” x 4.4” x 1.7”)
3.13.2 PANEL CUTOUT
118mm x 92mm
(4.6” x 3.6”)
3.13.3 WEIGHT
0.16kg
(0.35lb)
