Installation – Typical Wiring Diagrams
32

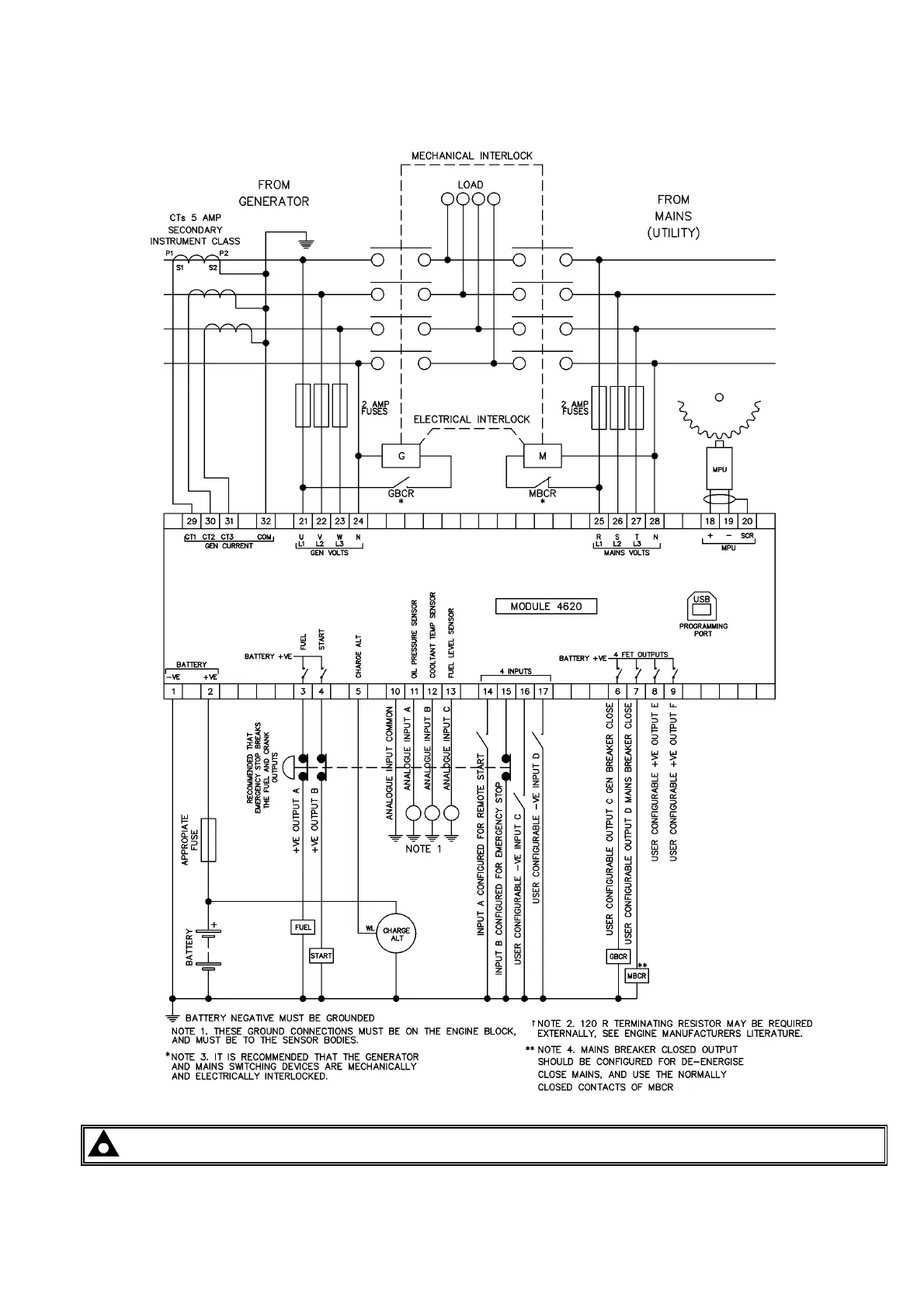

4.2.2 DSE4620 TYPICAL WIRING DIAGRAM (3 PHASE 4 WIRE)
NOTE: Terminals 29-32 are not fitted on the DSE46xx-01 variant.
