DSE7200 / 7300 Series Operators Manual
59
NOTE:- “Generator on load” LED has two modes of operation depending upon the configuration of
the controllers digital inputs.
1) Digital input configured for “Generator closed auxiliary” – The LED illuminates when the generator
closed auxiliary input is active – The LED shows the state of the auxiliary contact.
2) There is NO input configured for “Generator closed auxiliary” (factory default setting) – The LED
illuminates when the 7x20 gives the loading signal to the generator – The LED shows the state of the
7x20’s loading request.

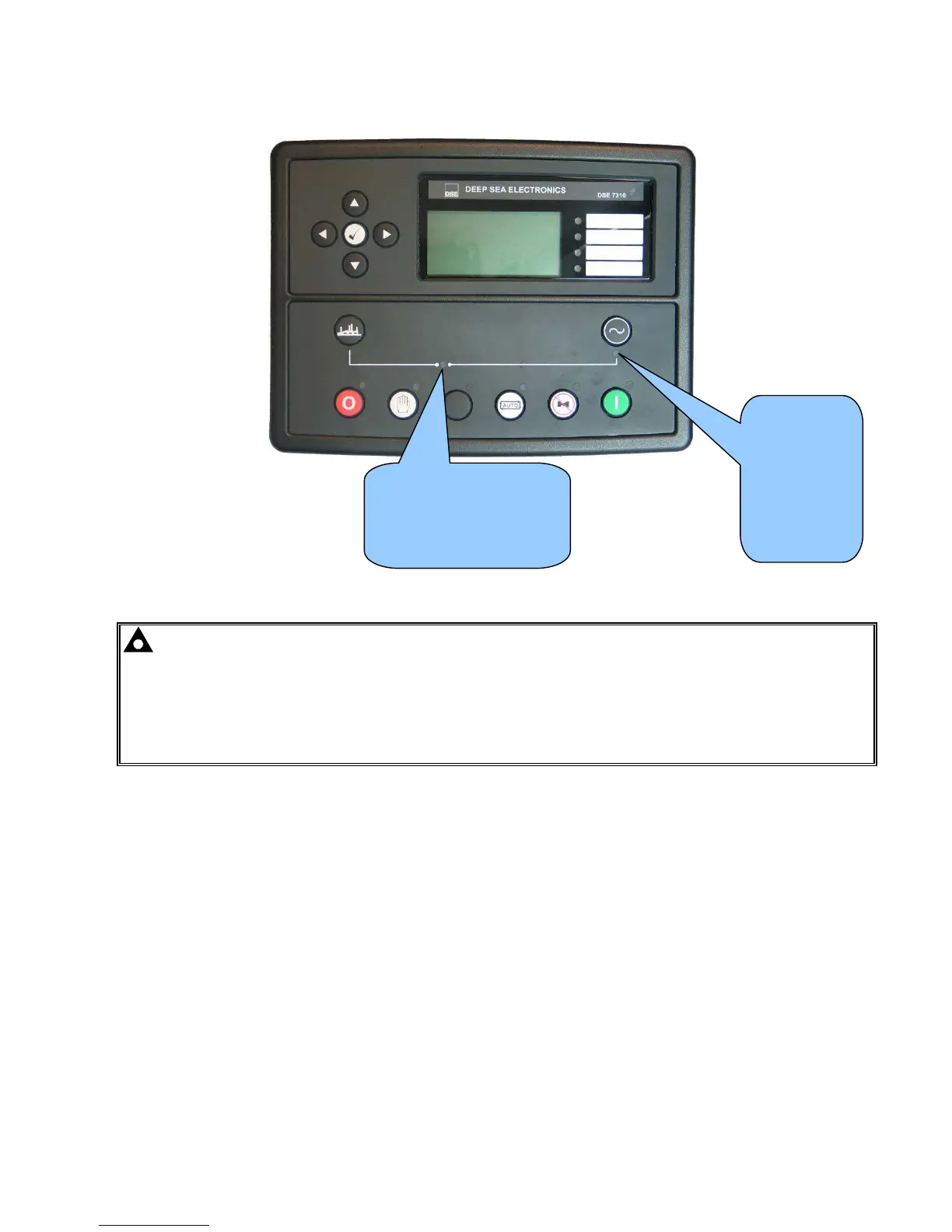

Close Generator LED.
On When the Generator
Breaker closes /
generator is on load
Generator
Available
LED.
On when the
generator is
within limits
and able to
take load.
