5 DESCRIPTION OF CONTROLS
The following section details the function and meaning of the various controls on the module.

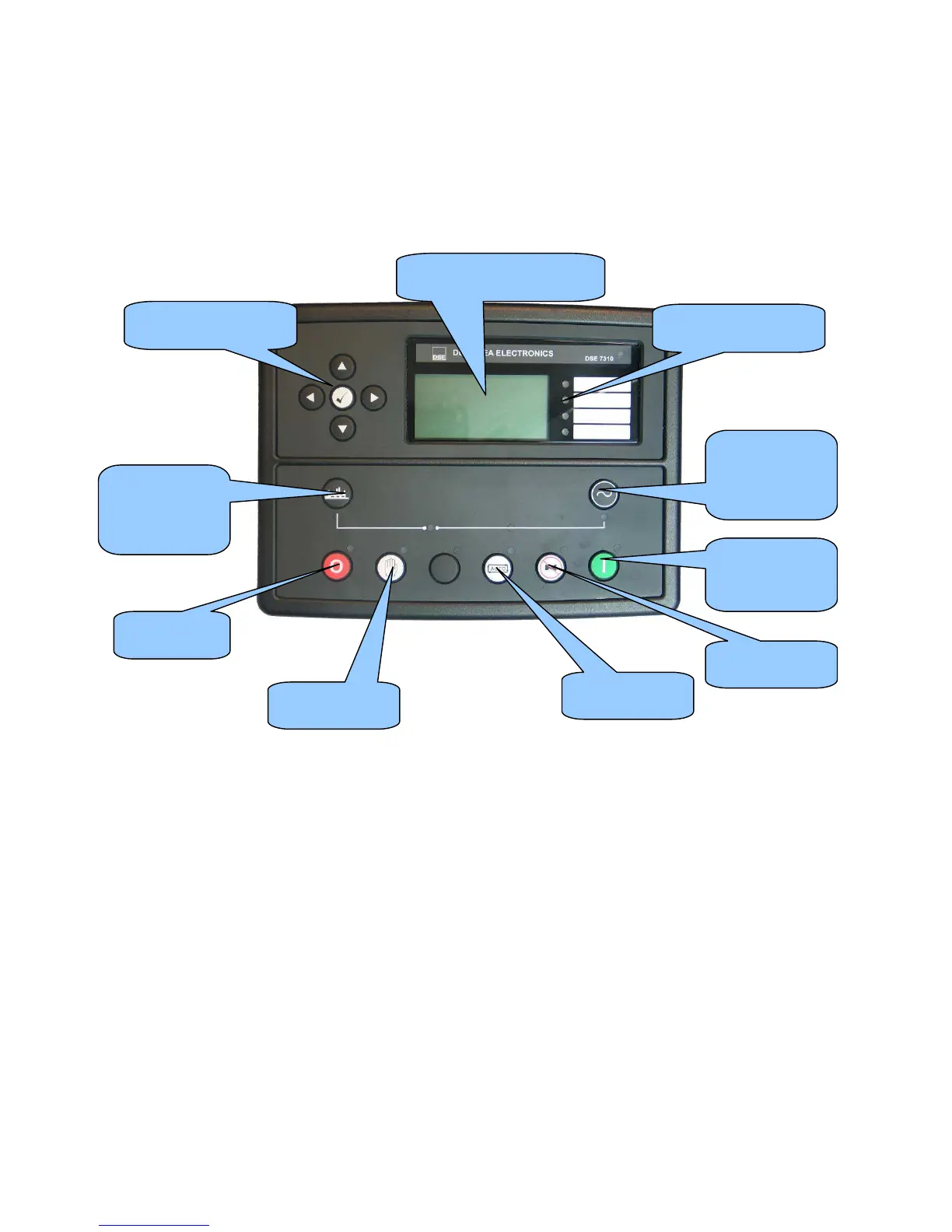

5.1 DSE7210 / DSE7310 AUTOSTART CONTROL MODULE
Menu navigation
buttons
Four configurable
LEDs
Select Stop
mode
Select Manual
mode
Select Auto
mode
Mute alarm /
Lamp test
Start engine
(when in
manual mode)
Close
generator
(manual mode
only)
Open
generator
(manual mode
only)
Main status and
instrumentation display
