DSE DSE9461 - INDICATIONS

Operation
23

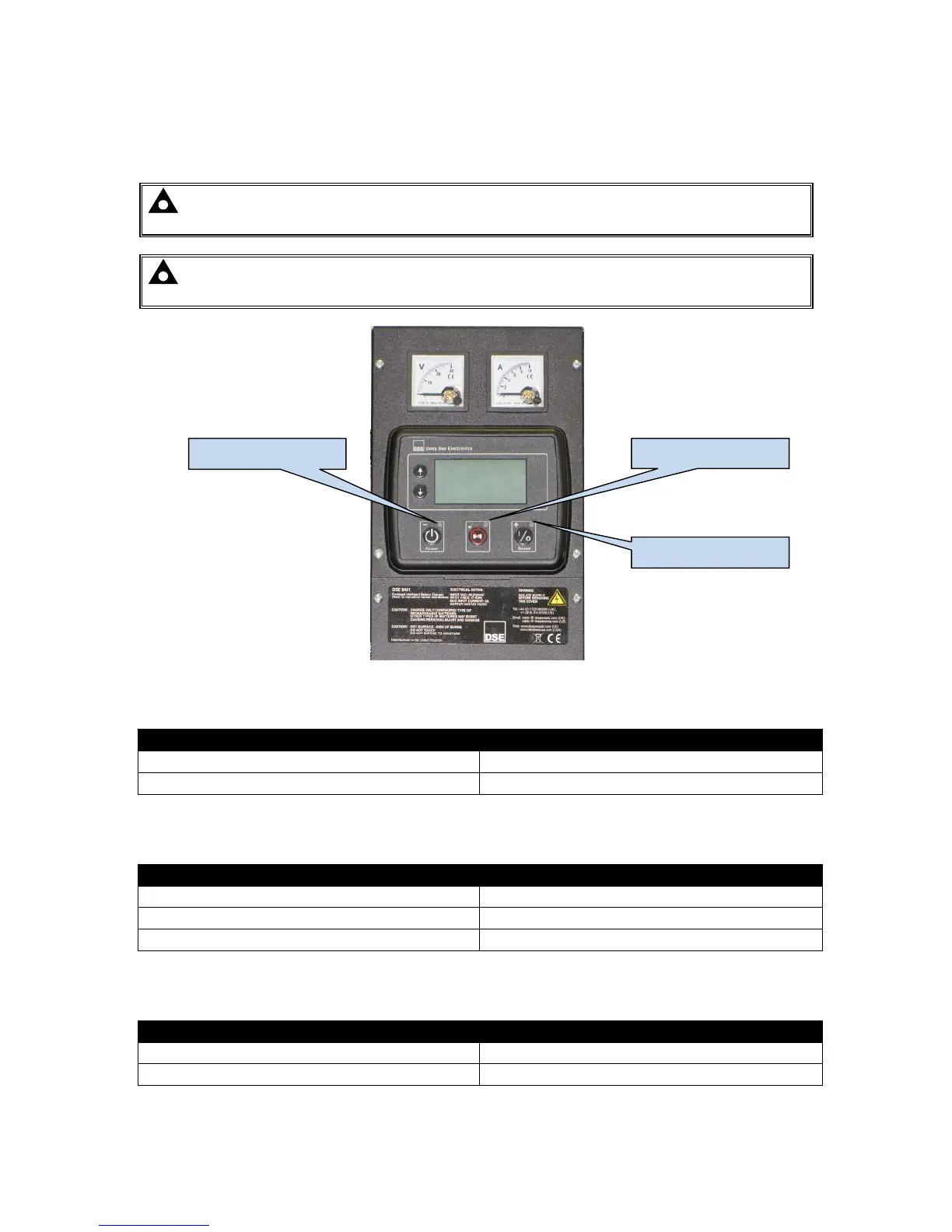

5 INDICATIONS
5.1 LCD DISPLAY
NOTE: LCD display is fitted only to the following model numbers : 9460-01, 9460-02, 9461-
01, 9461-02
NOTE: For details of controls and LCD indication, see the section entitled Operation
elsewhere in this document.
5.1.1 CHARGER STATUS
Condition
LED State
Charger off OFF
Charger on Constant Red
5.1.2 FAULT STATUS
Condition
LED State
No Fault OFF
Warning Fault Constant Red
Shutdown Fault Flashing Red
5.1.3 BOOST MODE
Condition
LED State
No Boost OFF
In Boost Mode Constant Red
Charger status LED Fault status LED
Boost Mode LED
