DSE DSE9461 - Enclosure Mounted Leds; Status; Charge Mode

Operation
24

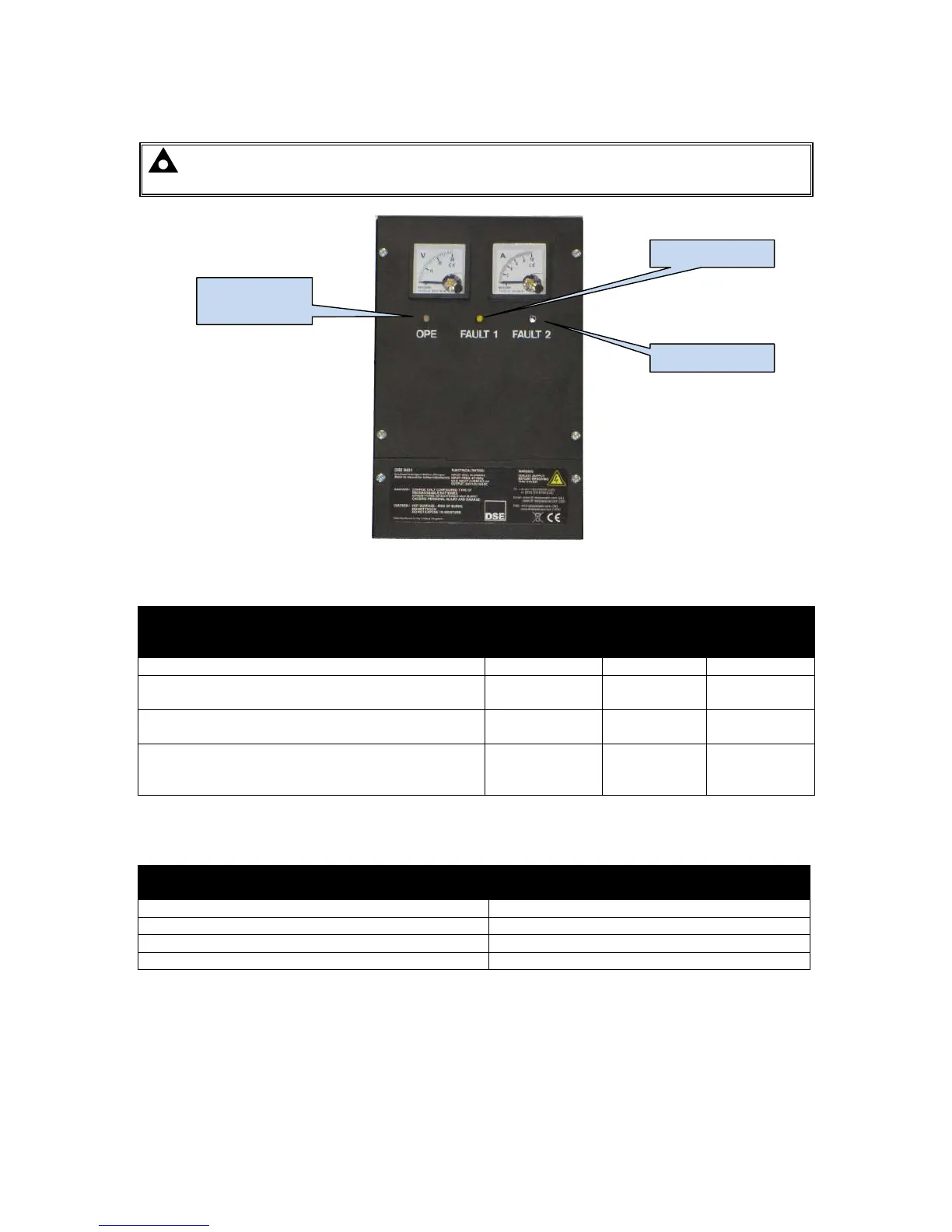

5.2 ENCLOSURE MOUNTED LEDS
NOTE: - Enclosure mounted LED indicators are fitted only to the following model
numbers : 9460-03, 9460-04, 9461-03, 9461-04
5.2.1 STATUS
Condition
LED DESIGNATION
OPE
Yellow/Green
FAULT 1
Yellow
FAULT 2
Red
Charger Off Off Off Off
Battery not Detected (Battery Detection Mode)
Green
Flashing
Yellow
Flashing
Red
Flashing
Battery Connected (Battery Detection Mode)
Green
Constant
Yellow
Constant
Red
Constant
Not Charging
(Charger is operating correctly but the ouput has
been disconnected from the battery)
Off
Yellow
Constant
Red
Constant
5.2.2 CHARGE MODE
Mode
LED DESIGNATION
OPE
Bulk Charge in progress Yellow Constant
Absorption Charge in progress Yellow Flashing
Float Charge in Progress Green Constant
Storage Charge in Progress Green Flashing
OPE LED
(Operation)
FAULT 2 LED
FAULT 1 LED
