5.2.3 FAULT CONDITIONS
Condition
LED DESIGNATION
FAULT 1
FAULT 2
High Output Voltage (DC)
Red
Constant
Off
High / Low Input Voltage (AC) or High Output Current (DC)
Red
Flashing
Off
High Ambient / Charger Temperature, High Battery
Temperature (if enabled)
Off
Red
Constant
Short Circuit/ Reverse Polarity (DC Output Connection) Off
Red
Flashing

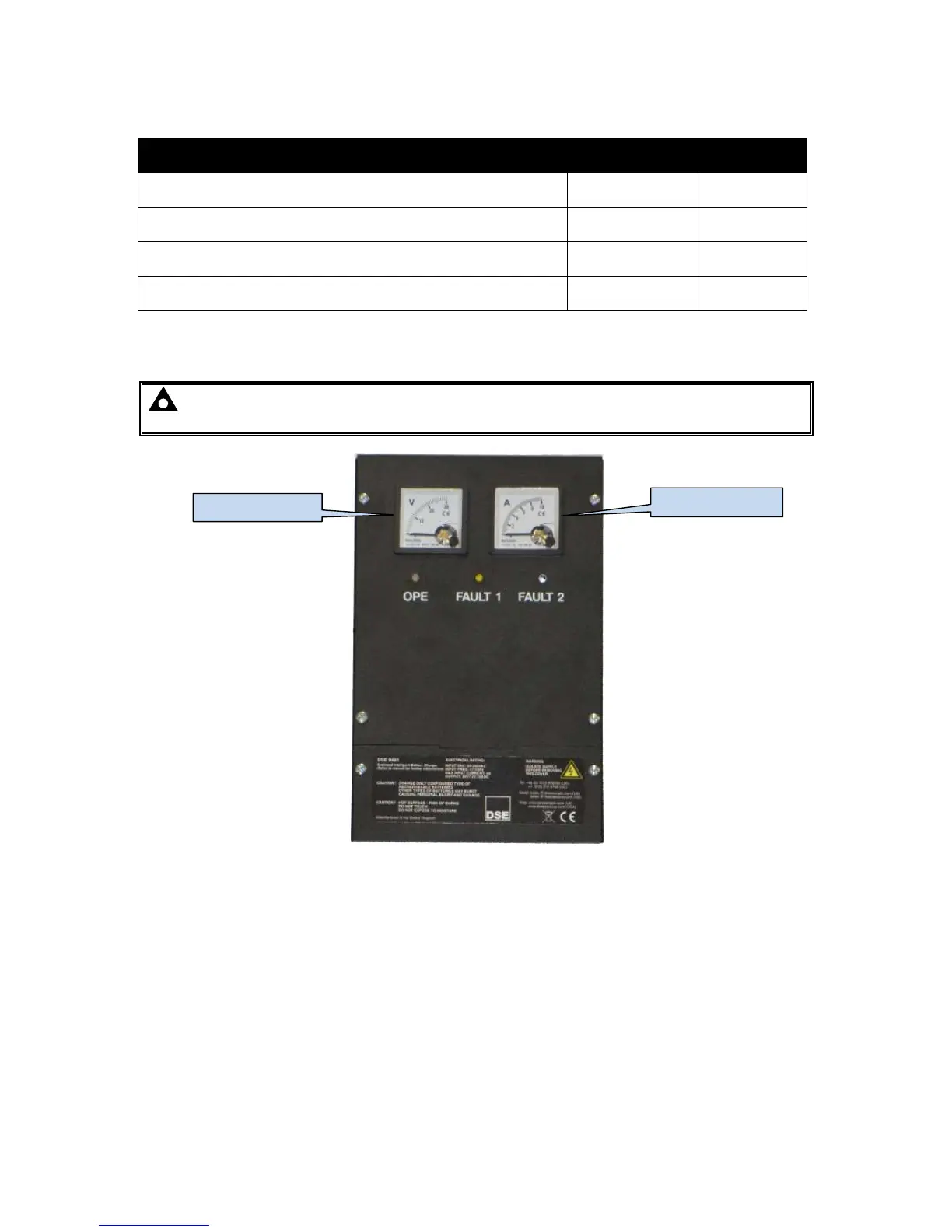

5.3 ENCLOSURE MOUNTED ANALOGUE METERS
NOTE: - Enclosure mounted analogue meters are fitted only to the following model
numbers : 9460-02, 9460-03, 9461-02, 9461-03
DC Voltmeter
DC Ammeter
