6.2.8 VIEWING THE INSTRUMENTATION
Press the navigation buttons (up) and (down) to cycle through the available instrumentation
screens.
All instrumentation screens have the following common icons :
An icon is used to show the meaning of the currently visible screen as shown in the following
sections.

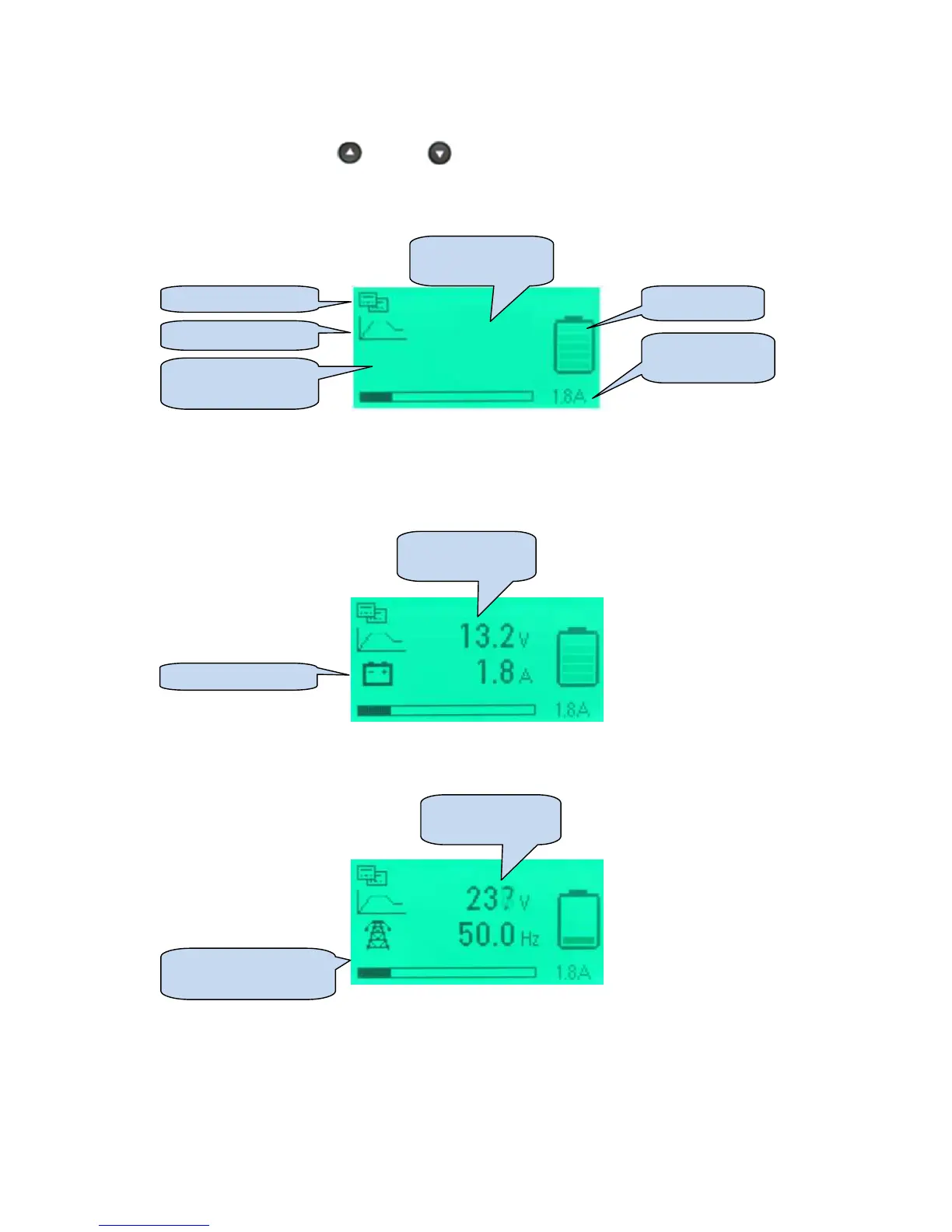

6.2.8.1 BATTERY
6.2.8.2 MAINS
Mains (utility) screen
icon
Mains (utility)
instrumentation
Battery screen icon
Link icon
Charge graphic
Instrumentation
screen type icon
Instrumentation
area
Battery icon
Battery charge
current
Battery
Instrumentation
