NOTE : DSE9000 series chargers are designed to be mounted with the base to a vertical surface with
the terminal strips at the bottom.
NOTE : This document is intended as a ‘quick start’ guide only. For full operating instructions and
specifications, refer to DSE publication: 057-085 DSE9xxx Series Operator Manual

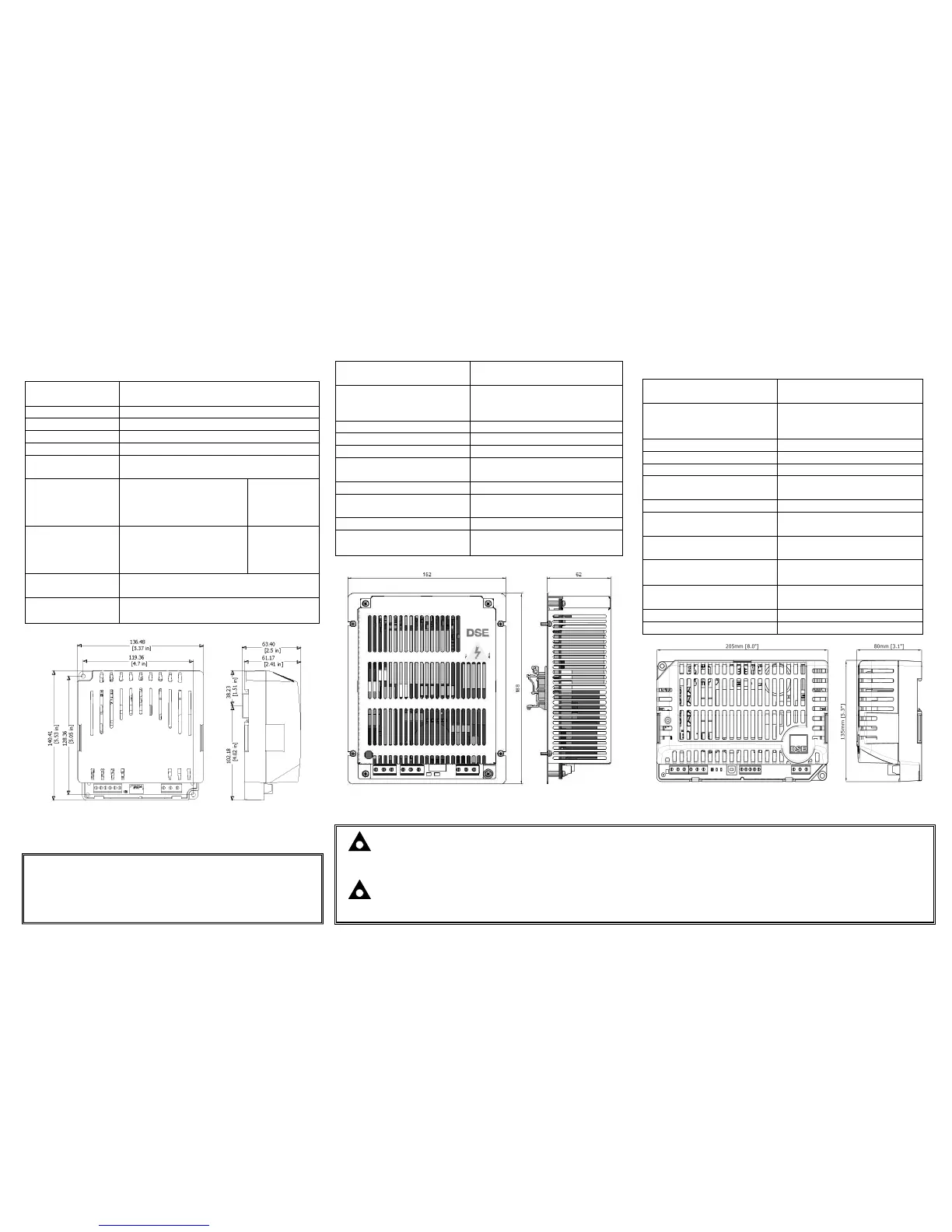

Dimensions and Mounting
DSE9130 12V 5A DSE9250 24V 3.7A *
DSE9155 30V 2A DSE9255 24V 5A
* This model is no longer available
Overall size 136mm x 140mm x 63mm
(5.37” x 5.53” x 2.5”)
Weight 0.5kg
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes Suitable for M4
Mounting hole
centres
119.36mm x 128.36mm
(4.7” x 5.05”)
Input voltage
(nominal)
DSE9250-001 24V 3.7A
DSE9250-002 24V 3.7A
DSE9130 12V 5A
DSE9255 24V 5A
110V-240V
110V-277V
110V-277V
110V-277V
Input voltage
(absolute range)
DSE9250-001 24V 3.7A
DSE9250-002 24V 3.7A
DSE9130 12V 5A
DSE9255 24V 5A
90V-265V
90V-305V
90V-305V
90V-305V
Charge failure
relay rating
3A DC resistive, 30V maximum
Operating
Temperature
-30
°
C to 55
°
C
(-22°F to 131°F)
Dimensions in mm unless stated
Dimensions and Mounting
DSE9140 12V 10A
DSE9260 24V 10A
Overall size 152mm x 188mm x 62mm
(6” x 7.4”x 2.44”)
Weight
DSE9140 12V 10A
DSE9260 24V 10A
0.75kg
0.85kg
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes Suitable for M4
Mounting hole centres 142mm x 128mm
(5.59” x 5.0”)
Input voltage (nominal) 110V-277V
Input voltage
(absolute range)
90V-305V
Charge failure relay rating 3A DC resistive 30V Maximum
Operating Temperature
-30
°
C to 55
°
C
(-22°F to 131°F)
Dimensions in mm unless stated
Deep Sea Electronics Plc.
Tel:+44 (0)1723 890099
Fax: +44 (0)1723 893303
Email: sales@deepseaplc.com
Web: www.deepseaplc.com
Deep Sea Electronics Inc.
Phone: +1 (815) 316-8706
Fax: +1 (815) 316- 8708
Email: sales@deepseausa.com
Web: www.deepseausa.com
Dimensions and Mounting
Intelligent Battery Chargers
DSE9481 MKII 12V 5A
DSE9472 MKII 24V 5A
DSE9480 MKII 12V 10A
DSE9470 MKII 24V 10A
Overall size 205mm x 135mm x 80mm
(8.1” x 5.3” x 3.1”)
Weight
DSE9470 MKII
DSE9472/80/81 MKII
0.78kg
0.7kg
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes Suitable for M4
Mounting hole centres 190mm x 120mm
(7.5” x 4.7”)
Input voltage (nominal) 110V-277V
Input voltage
(absolute range)
95V-305V
Charge failure relay rating 3A DC resistive
30V maximum
Operating Temperature
-30
°
C to 85
°
C with de-rating
(-22°F to 185°F)
Optional Temperature
Sensor
NTC connections for PT1000
sensor only
Communications RS485
PC connection (USB) To enable PC Configuration
Dimensions in mm unless stated
6in
2.44in
7.4 in
