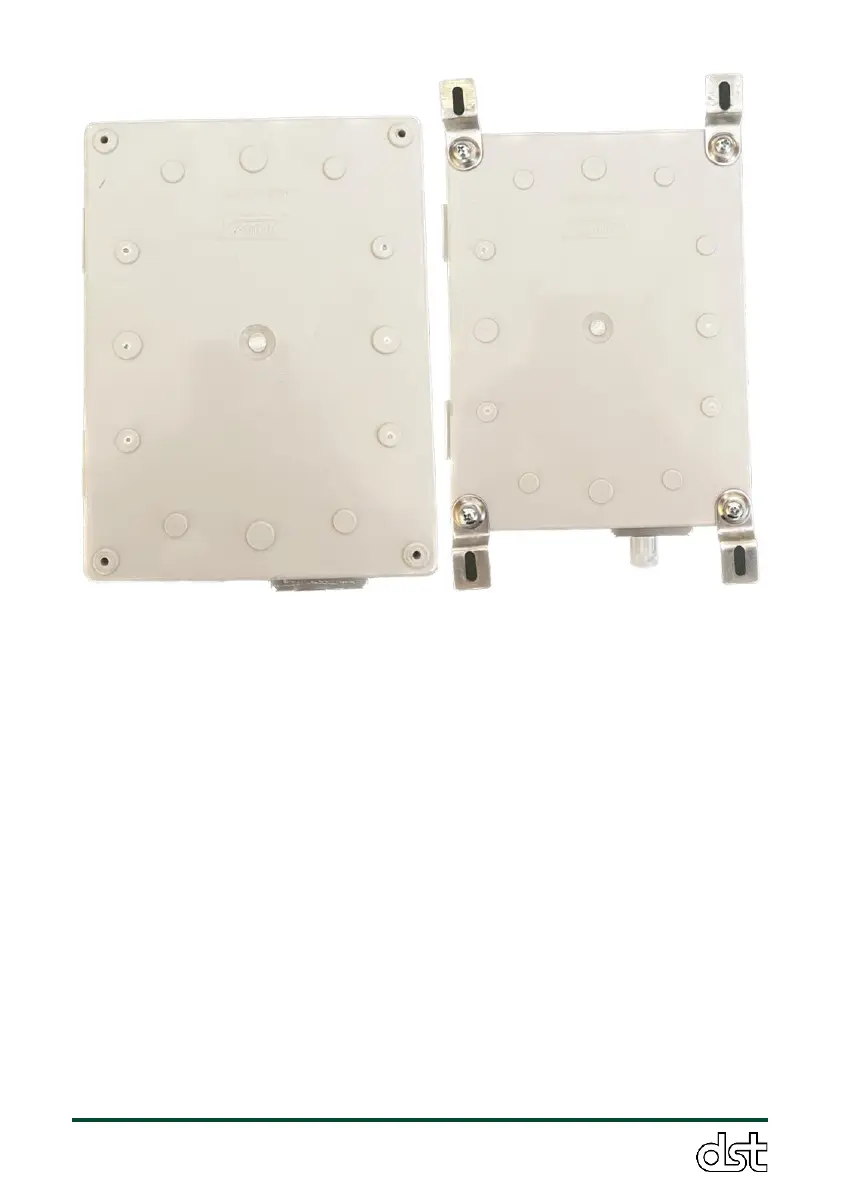

Figure 11. Enclosure Mounting Points
In Figure 12 below, a deployed ObservAir sensor is illustrated,
demonstrating the proper mounting orientation. The bottom side, which
houses the PM sensor, RH/T sensor, and inlet/outlet vents, should be
positioned facing the ground. This image also includes the optional solar
panel attachment.
When mounting the sensor, ensure that all four mounting points are
securely fastened to prevent the device from being dislodged by wind or
other forces. Additionally, it is crucial to mount the sensor in a manner
that minimizes direct exposure to sunlight. If possible, choose a shaded
location for deployment, as this is highly preferable for maintaining
optimal sensor performance and longevity.
