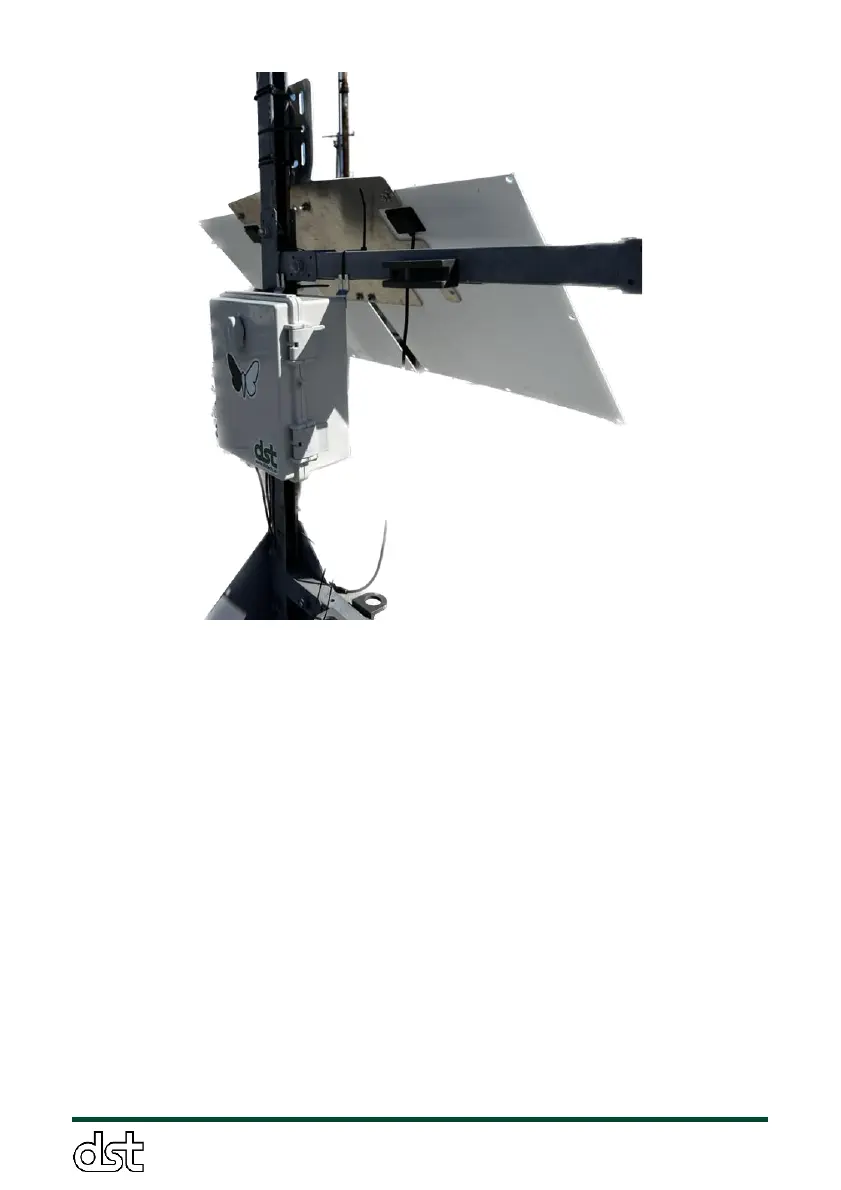

Figure 12. Mounted enclosure showcasing orientation with the
inlet/outlet facing the ground.
3.5.3. Solar Power Kit
The optional solar power kit designed to enhance the device's functionality
and convenience. The kit includes a versatile mounting bracket capable of
supporting one or two solar panels simultaneously. Additionally, a solar
charging enclosure is provided, which houses a backup battery to extend
the device's operational lifespan, as well as the necessary charging
circuitry.
The solar charging enclosure shares the same mounting process as the
ObservAir Outdoor Enclosure, with hardware attached to the rear
mounting points as detailed in 23
Figure 13 below displays the complete ObservAir system, incorporating
the solar charging enclosure, mounting bracket with solar panel, and
ObservAir enclosure. This image illustrates the interface between each
component and their respective connections.
