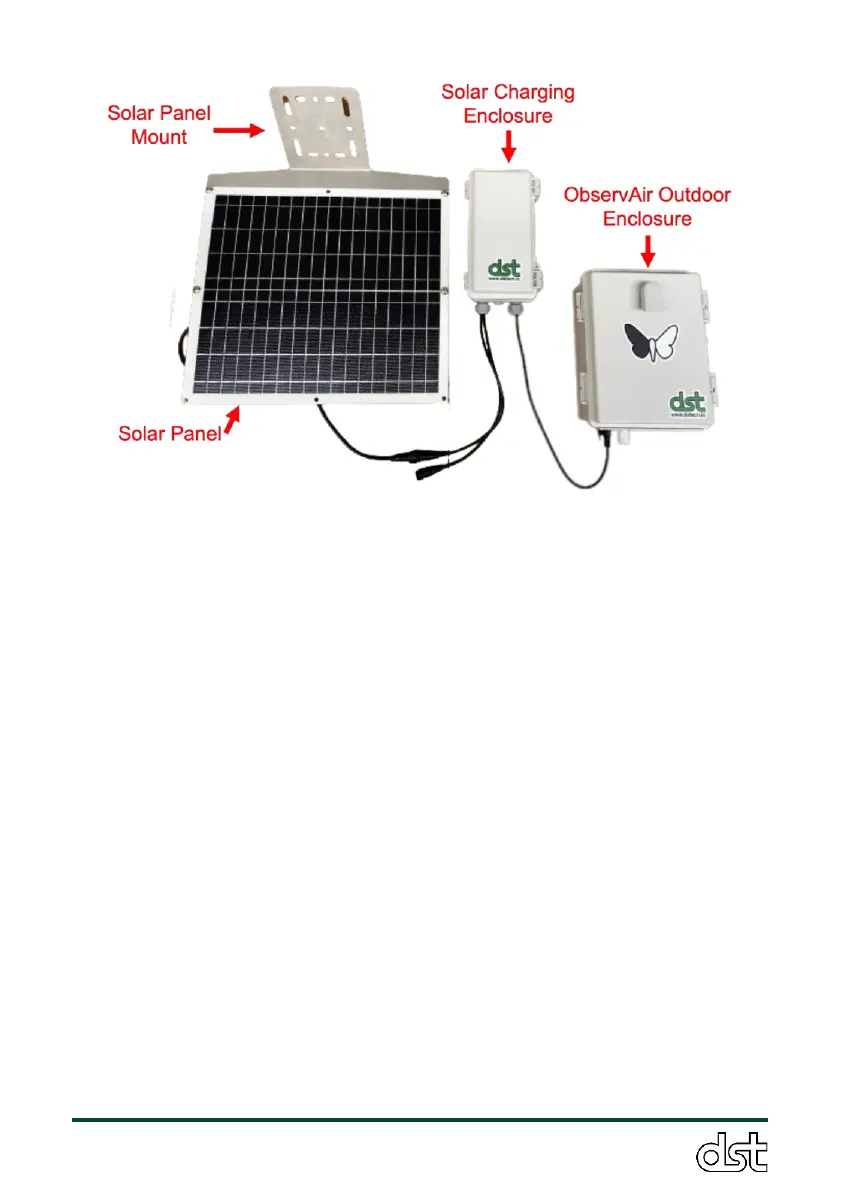

Figure 13. ObservAir System with Solar Kit – This illustration
showcases the complete ObservAir system, highlighting the respective
connections between the different components. In the image, the
second unused connection is designed for use with a dual-panel
system.
3.5.4. Mounting Panels to Bracket
The solar panel bracket is a versatile, universal bracket featuring multiple
mounting points, allowing for flexible installation using U-bolts, screws,
metal zip ties, or other suitable fasteners. This design enables the
convenient mounting of the system in various locations, depending on user
preference.
The solar panel bracket can accommodate either one or two panels. In a
single panel configuration, the solar panel is oriented horizontally and
secured with four supplied bolts/nuts. For a dual panel setup, the two
solar panels are positioned vertically next to each other, with each panel
fastened at three points using three bolts/nuts each.
Figure 14 below illustrates the two different mounting configurations for
the solar panel bracket.
