2 INTRODUCTION

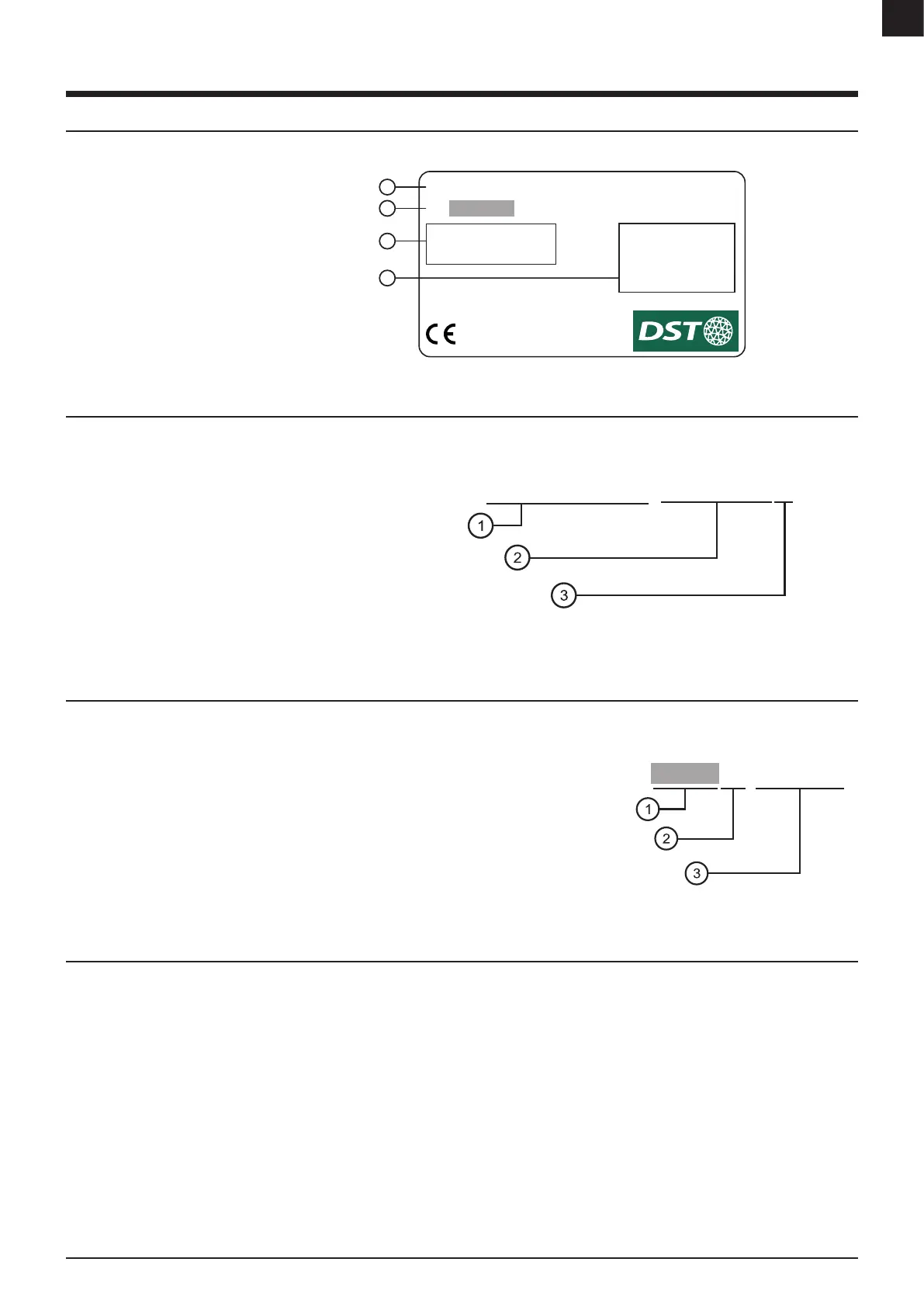

2.1 TYPE PLATE OVERVIEW
The manufactured unit is identied by a type plate. The type plate is positioned on front or the right side of the unit. The details on the type plate are set out as follows:
1. Model designation
2. Serial number
3. Rotor type and date of
production
4. Electrical supply information
RECUSORB RLF-122S
Nr DR-50R.0000XXX
3 x 400V ~ 50Hz
P motors 0.23kW
P tot 4.3 kW
I tot 10 A
Seibu Giken DST AB
Avestagatan 33
16353 SPÅNGA, Sweden
1
2
3
4
Rotor: RRR
Manuf. date: yyyy yyyy
FIGURE 1: Type plate
2.2 MODEL DESIGNATION
The model designation is the name of the model and what type of regeneration the unit is tted with.
1. Principle type
2. Model name
3. Regeneration heater type - the type of heater the unit is
equipped with.*
R = Resistive (electric)
G = Gas
S = Steam
HW = Hot water
WW = Warm water
D = Diesel
O = Oil
RECUSORB RLZ-102R
Nr DR-50R.0000XXX
Electric heater P nom 63 kW
3 x 400V ~ 50Hz
P motors 7.4kW
P tot 70.4 kW
I tot 97 A
Seibu Giken DST AB
Avestagatan 33
16353 SPÅNGA, Sweden
RECUSORB RLZ-102R
Nr DR-50aa.bbbbbbb
FIGURE 2: Model name
*Not applicable for single-phase unit.
2.3 SERIAL NUMBER STRUCTURE
The serial number is composed of di󰀨erent codes to identify the unit type. Units manufactured pre 2006 have a modied serial number structure which does not match the
current structure.
1. Unit (e.g. RLZ-102)
2. Special unit (aa) - code to indicate a special manufactured unit
SP = Special
Note: The absence of SP indicates a standard manufactured unit; e.g. RLZ-102SP is a special
manufactured unit, and RLZ-102 is a standard manufactured unit.
3. Serial number (bbbbbbb) - serial number of the manufactured unit
001, 002, 003, 004... n
RECUSORB RLZ-102R
Nr DR-50R.0000XXX
Electric heater P nom 63 kW
3 x 400V ~ 50Hz
P motors 7.4kW
P tot 70.4 kW
I tot 97 A
Seibu Giken DST AB
Avestagatan 33
16353 SPÅNGA, Sweden
RECUSORB RLZ-102R
Nr DR-50aa.bbbbbbb
FIGURE 3: Serial number structure
2.4 OTHER UNIT INFORMATION
In the appendix, a component list details spare parts with articlenumbers as well as the electrical diagram number for the electrical box. If there is a special unit with custom-
installed components that list will include a list of installed options.
