6

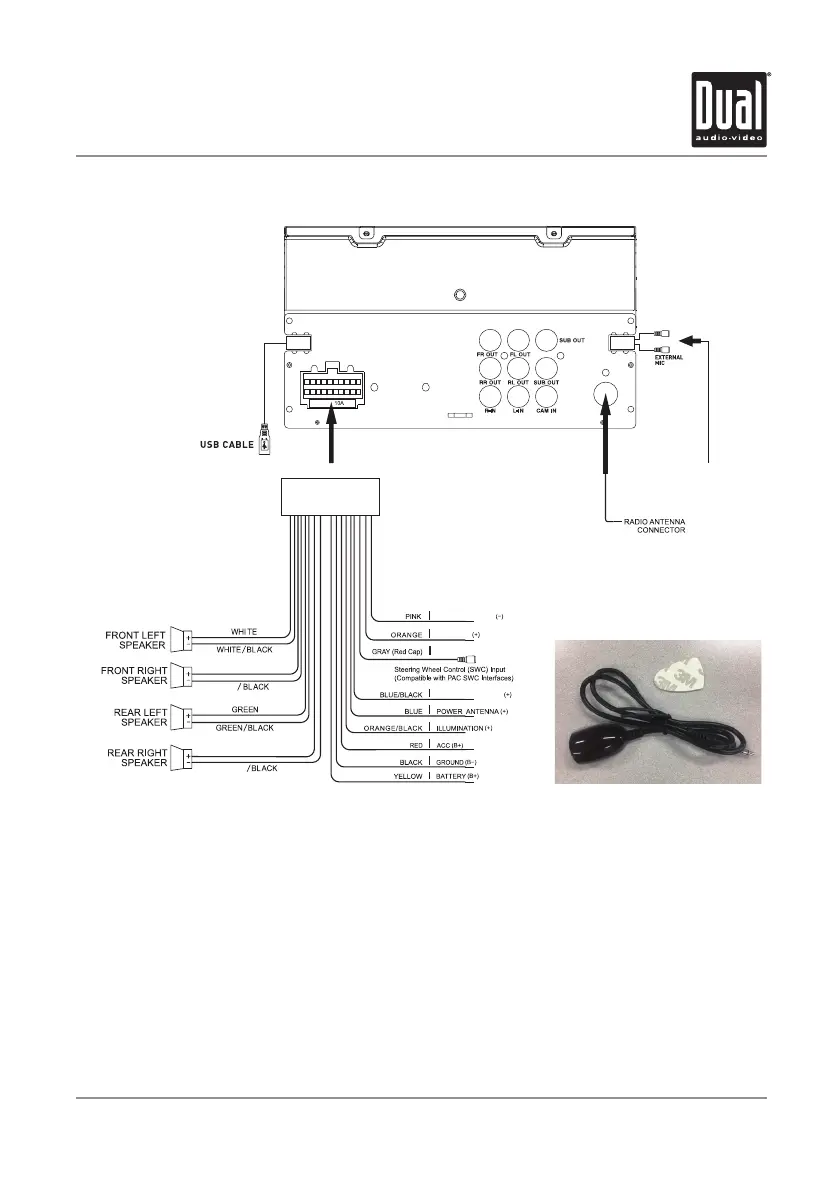

Wiring Diagram - Inputs/Outputs
XDCPA9BT INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause
damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
·External IR Sensor
IR Sensor
PA RKING BRAKE
SWC - 3.5mm JACK
REVERSE
REMOTE TURN-ON
MAIN HARNESS
EXTERNAL IR
SENSOR WIRE
FUSE
VIOLET
VIOLET
GRAY
GRAY
DC 12V
DC 12V
To Next Page
