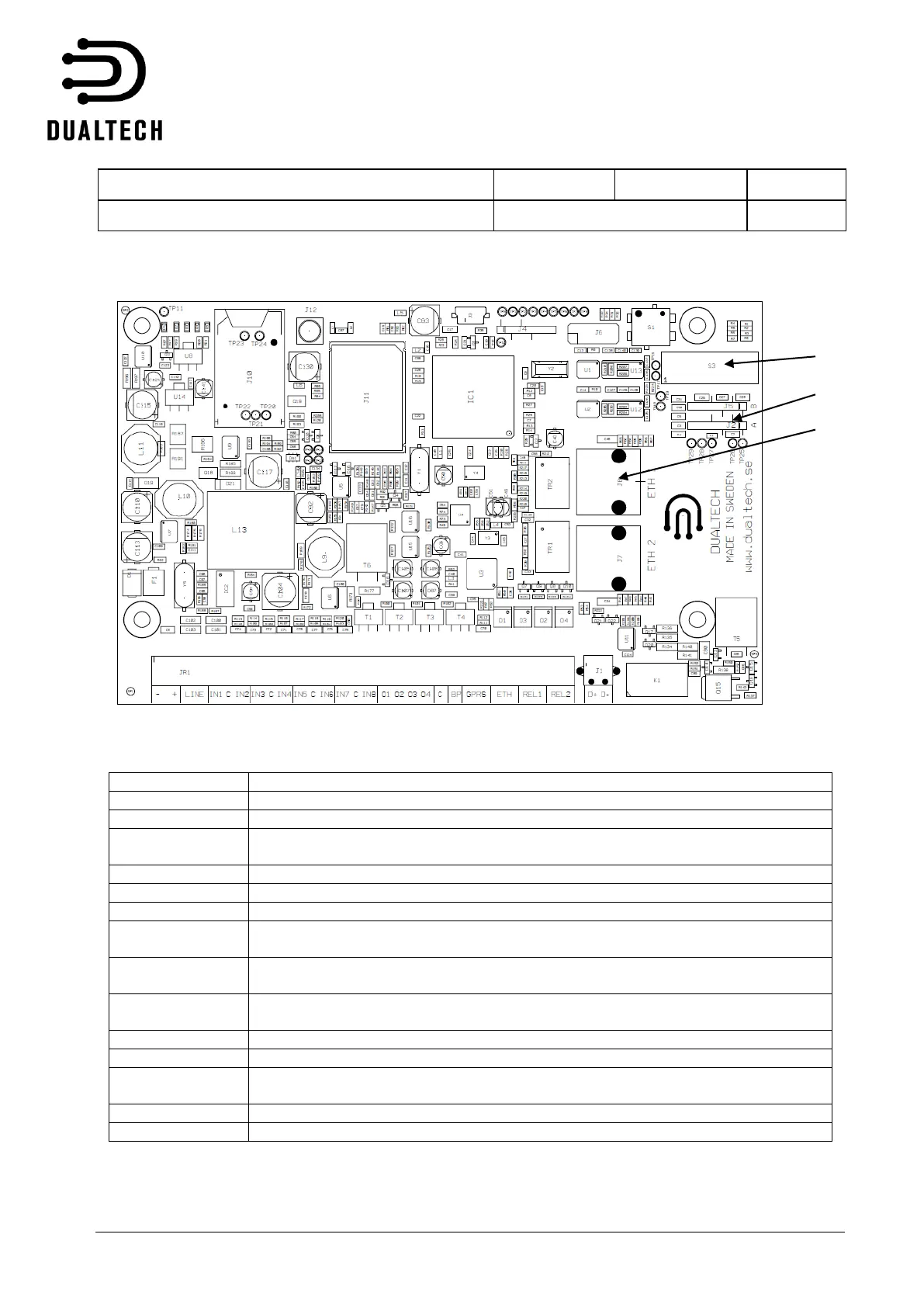

6 Technical Specifications DALMx000
6.1 Hardware
6.1.1 Connections
Connection
Function
12/24V
Connection power supply, 11-30 VDC. Secure with external fuse, 1A
LINE OUT
Simulated telephone line for connecting an analogue dialler
GPRS/3G
ERROR
Potential free relay output for GPRS/3G error, max 100mA
ETH ERROR
Potential free relay output for Ethernet error, max 100mA
REL1
Transmission to ARC failed indicated with a two second puls
REL2
Transmission to ARC succeeded indicated with a two second puls
IN1-IN8
Alarm inputs 1-8. Activated via potential free closure to or opening from system
ground, depending on configuration during system programming.
O1-O4
Remote controllable open collector outputs, closes to or opens from system
ground. Max current per output: 250 mA.
BP
Bypass input. If BP closes against C, the inputs on DALMx000 that are not
programmed to 24h (always active) are bypassed
C
System ground, Common.
ETH1
Ethernet connection socket for connection to local area network
ETH2
Socket for connection to other IP equipment. ETH1 and ETH2 are connected via a
standard IP switch solution onboard the PCB.
J2-A:
Pin strip for connection of cable for serial communication from external system.
D+ D-
RS-485 connection for serial communication from external system
J2-A
DIP Switch
ETH 1
