Dualtech DALM3000 3G - 6.2 LED indication

Title
Installation DALMx000 IP/2G/3G
Confidentiality
Document no.
1
Revision
3
Project
Published by
AJ
Date
2015-06-03
File name: Installation DALMx000 IP_2G_3G EN r3 Page 17 (18)

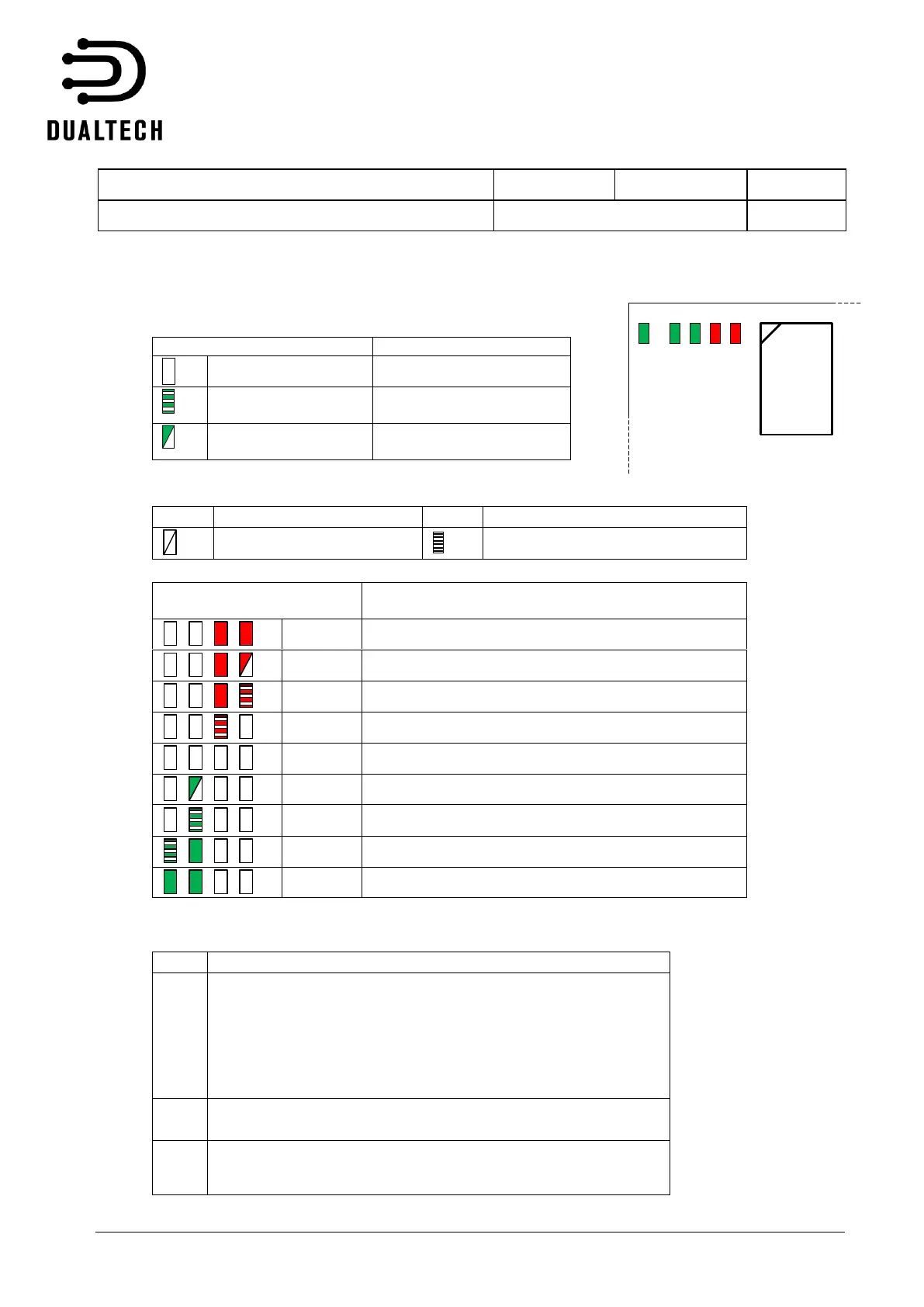

6.2 LED indication
DALMx000 has five LEDs for indicating status and errors.
LED 1
Status
Description
Off
GSM module switched off
Flashes once per
second
Searching for GSM
network
Two short flashes
every three seconds
Connected to GSM
network
LEDs 2-5 Indication at initial start-up and first programming
Figure
Description
Figure
Description
Flashes once per second
Flashes 5 times per second
Status LEDs
2 3 4 5
Description
The product starts
Function check GSM module
Checking SIM/PIN
Registering on GSM network
Waiting for programming request
Connecting to EWM server
Establishing encrypted connection
Retrieving programming
Programming complete
LEDs 2-5 Indication during normal operation (after initial start-up and first programming)
LED
Description
2
Off: DALMx000 connected
Flashes once/second: DALMx000 connected.
During alarm transmission:
Off: IP transmission via fixed Internet
Lit: IP transmission via GPRS/3G.
Flashes 5 times/second together with LED 3: Sending SMS or E-
mail
3
Flashes once/second: Countdown for alarm in progress.
Flashes 5 times/second: Alarm transmission in progress.
2+3
Flashes three times together after alarm transmission:
Transmission OK.
1 2 3 4 5
SIM-kort
