Rear brake pedal

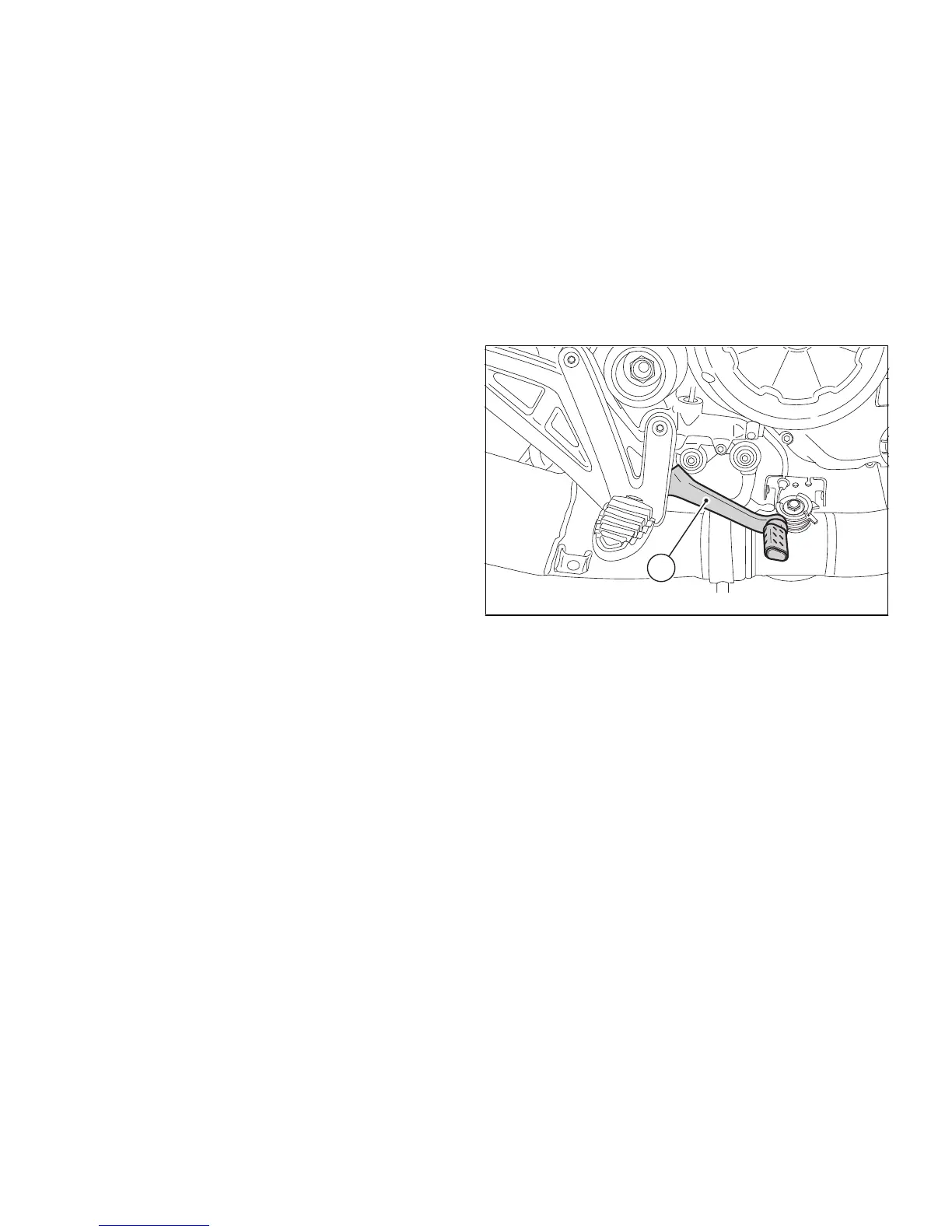

Push down on the pedal (1) to apply the rear brake.
The system is hydraulically operated.
1
Fig. 105
154
