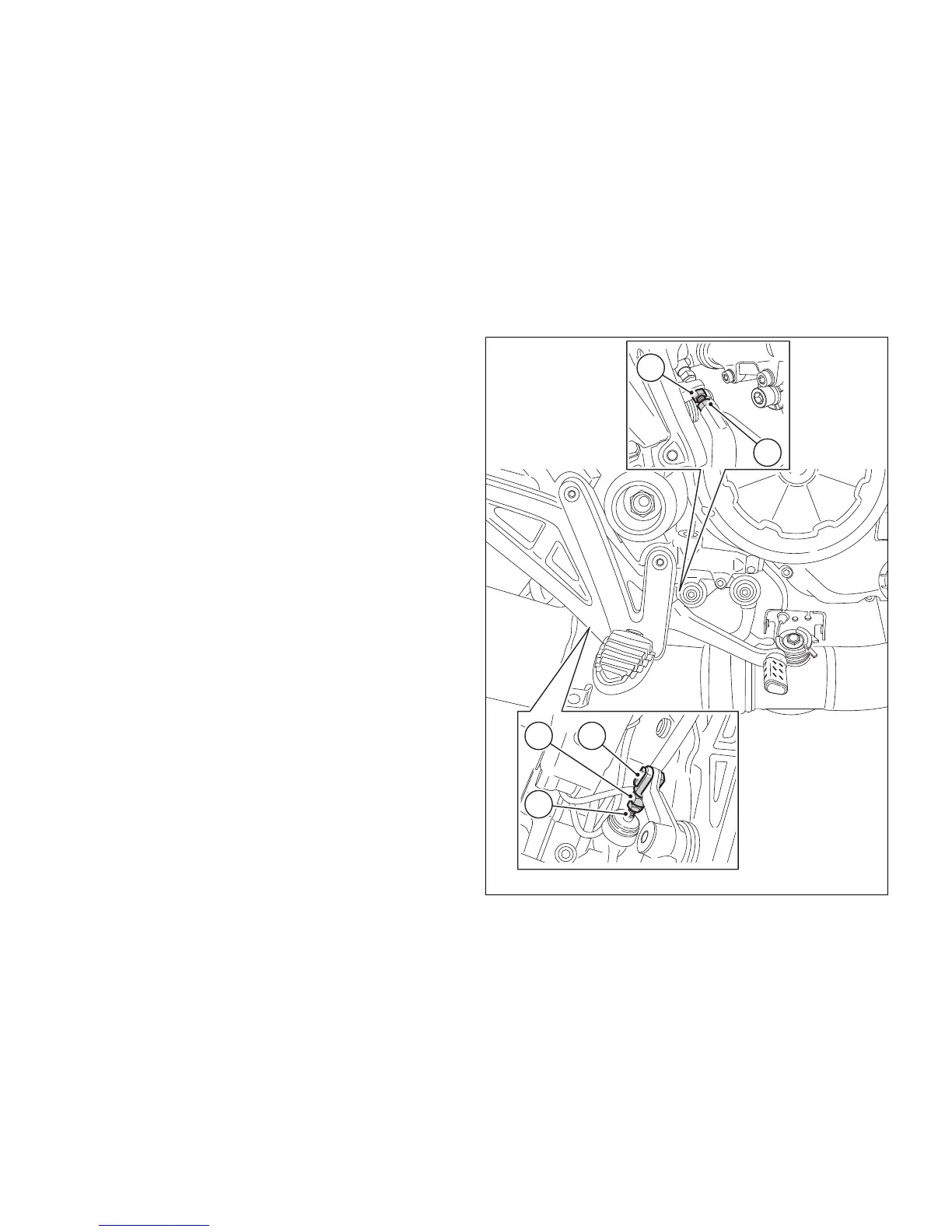

Rear brake pedal.
Loosen counter nut (7).
Turn pedal stroke adjusting screw (6) until pedal is in
the desired position.
Tighten the counter nut (7).
Operate the pedal by hand to check that there is a
free play of 3 to 6 mm before the brake bites.
If not, adjust the length of the master cylinder
pushrod as follows.
Slacken off the counter nut (10) on the pushrod.
Screw the pushrod (8) into the fork (9) to increase the
free play, or screw it out to reduce it.
Tighten the counter nut (10) and recheck the pedal
freeplay.
