The front secondary fuse box (B) and rear 
fuse box (C) are located under the rider seat. To
access its fuses, it must be removed as described in
the "Seat lock" sub-section.
Spare fuses in the front and rear fuse boxes:
- box (B): 15A, 10A, 25A;
- box (C): 5A, 15A, 20A.
Refer to the table below to identify the circuits
protected by the various fuses and their ratings.
The fuses of the front (B) and rear (C) fuse boxes can
be reached by removing the relevant inspection
covers, which show the mounting order and
amperage of the fuses you find inside.

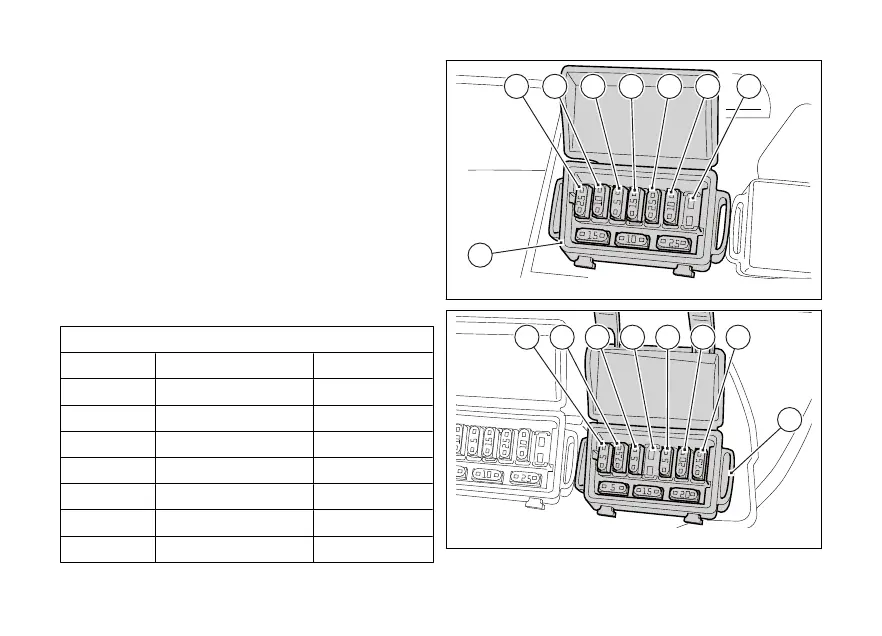

Front fuse box (B) key
Pos El. item Rat.
5 +30 EMS Relay Load 25 A
6 +30 Fuel pump relay 10 A
7 +30 BBS2 25 A
8 +30 Dashboard 15 A
9 +30 BBS1 25 A
10 Accessories 10 A
11 +30 E-Call 25 A
5
B
6 7 8 9 10 11
Fig 240
12 13 14 15 16 17 18
C
Fig 241
258

Ducati MULTISTRADA Series Specifications

General

Transmission	6-speed
Traction Control	Standard
Fuel System	Electronic fuel injection
Front Brake	Dual discs, Brembo calipers
ABS	Standard
Frame	Tubular steel trellis
Fuel Capacity	20 - 22 liters
