Duke TSC-6 Service Manual

27
Maintenance Manual for DUKE TSC Proofer
Oven with Touch Screen Controls
PARTS LIST AND ILLUSTRATIONS

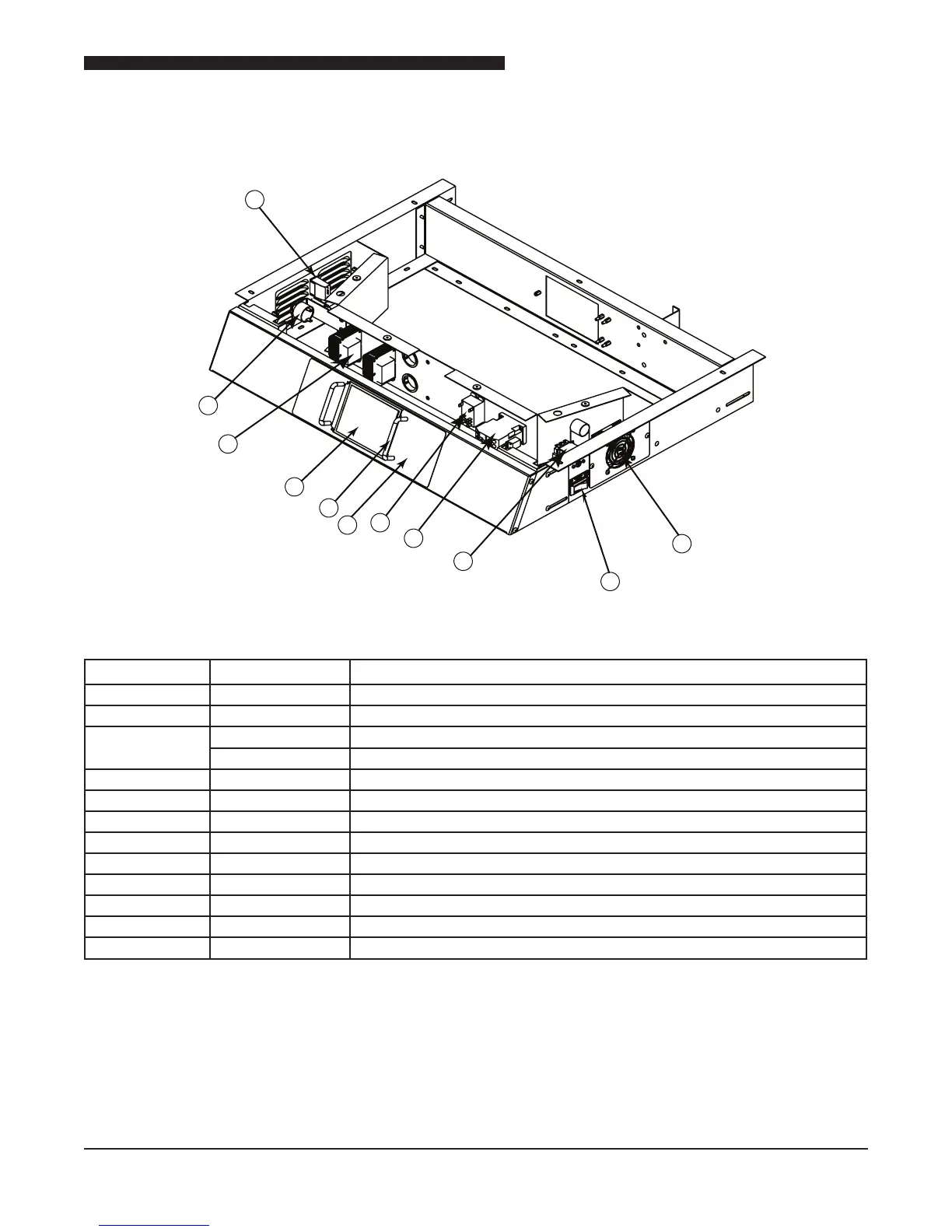

Control Panel Exploded View
ITEM # PART# DESCRIPTION
42 512771 USB Port
43 512568 Buzzer
44 502937 Transformer 230V
502840 Transformer 208V
45 600183 TSC Proofer Oven Controller Replacement Kit
46 512547 Handle, Guard Control
47 512767 Overlay, Touch Screen
48 512781 Oven Motor Relay, 230V
49 512790 Oven Heaters Contactor, 240V 50/60Hz 3P
50 512765 Thermostat, Hi-Limit
51 512770 Breaker,Switch-10A
52 512760 AssemblyFanMufn-Proofer
53* 512880 Breaker,Circuit,3AmpforProoferLightTransformer
46
44
43
42
45
48
49
50
51
52
47
