23
Maintenance Manual for DUKE TSC Proofer
Oven with Touch Screen Controls
AIR-WASH DOOR INFORMATION AND
CLEANING INSTRUCTIONS
The Air-Wash door has two window panes. The
inner window can be easily separated from the
outer window for cleaning. This is achieved by
unlatching two clips and rotating the inner window
on it's hinges. After cleaning, the inner window
frame is easily clipped to the outer window by
squeezing the two windows together.

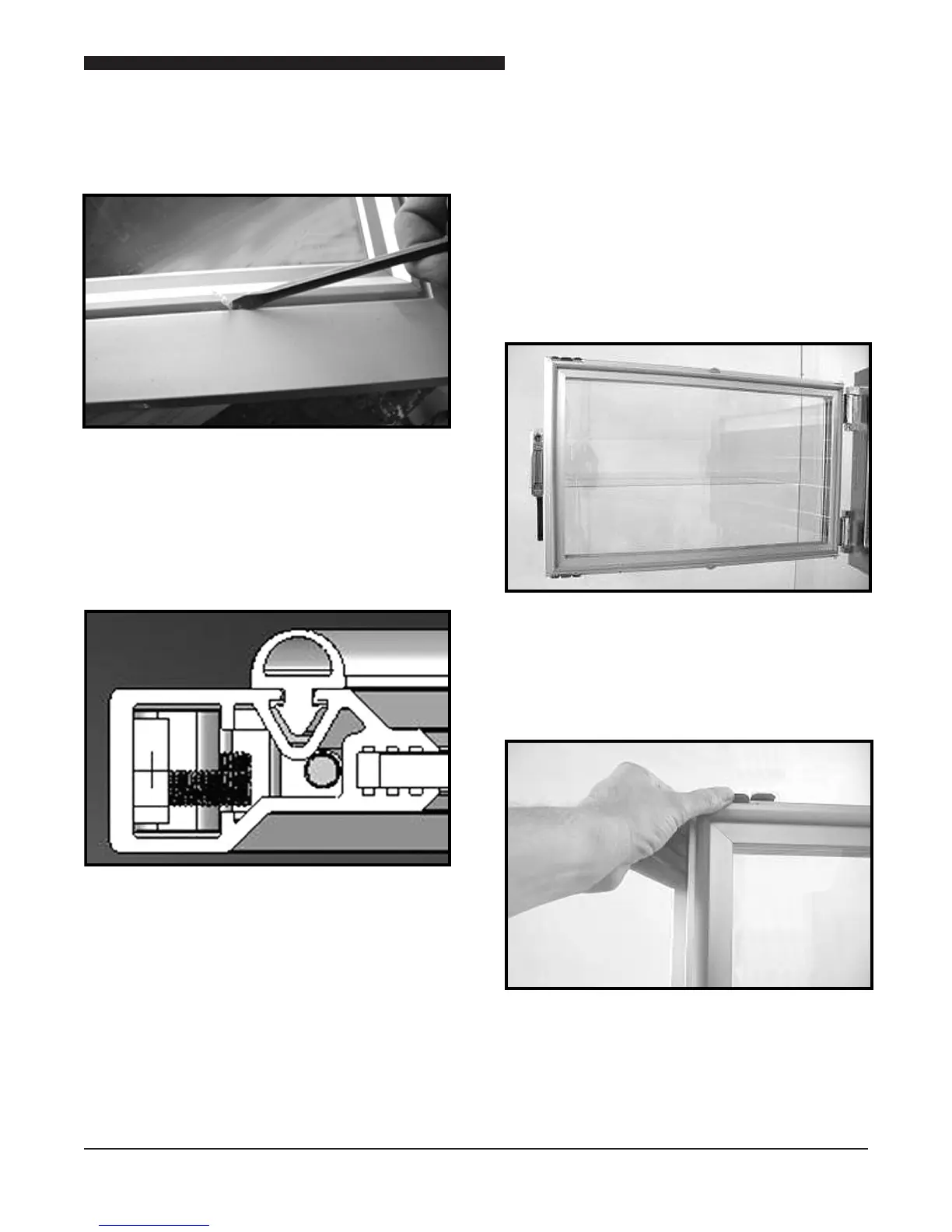

Figure 44: Air-Wash Door inside view.
1. To open the windows for cleaning, unlatch the
top clip.
Figure 45: Unlatch Top clip
2. Clean the groove with a screwdriver or other
at-bladed tool to remove any dirt or gasket
pieces.
Figure 42: Cleaning Gasket Groove
3. Press the new gasket into the groove. Make
sure it is fully seated in the groove and at
against the door frame.
Figure 43: Properly Seated Gasket
4. Check the door adjustment to make sure there
are not any leaks. Also, check that the new
gasket is not compressed too much, making
the door hard to close.
