Maintenance Manual for DUKE TSC Proofer
Oven with Touch Screen Controls
18
DOOR ADJUSTMENTS & GASKET MAINTENANCE
REVERSING OVEN DOOR SWING
DIRECTION
1. Remove cover from hinges to expose the
screws that hold the hinge to the front of the
oven.
2. Remove the hinge screws and door from the
oven.
3. Remove the door handle screws, ip the door
handle over and replace it on the door.
4. Remove the six screws on the front of the oven
to expose the hinge screw holes for the other
swing direction.
5. Use the six screws to ll the unused hinge
screw holes on the front of the oven.
6. Remove the latch strike plate from the front
of the oven and move it to the other side. Use
the screws from the other side to ll the screw
holes that are no longer used.
7. Position the door on the front of the oven and
tighten the hinge screws. Make sure the door
is level with the oven body before the screws
are tightened permanently.
8. Adjust the door gasket seal.

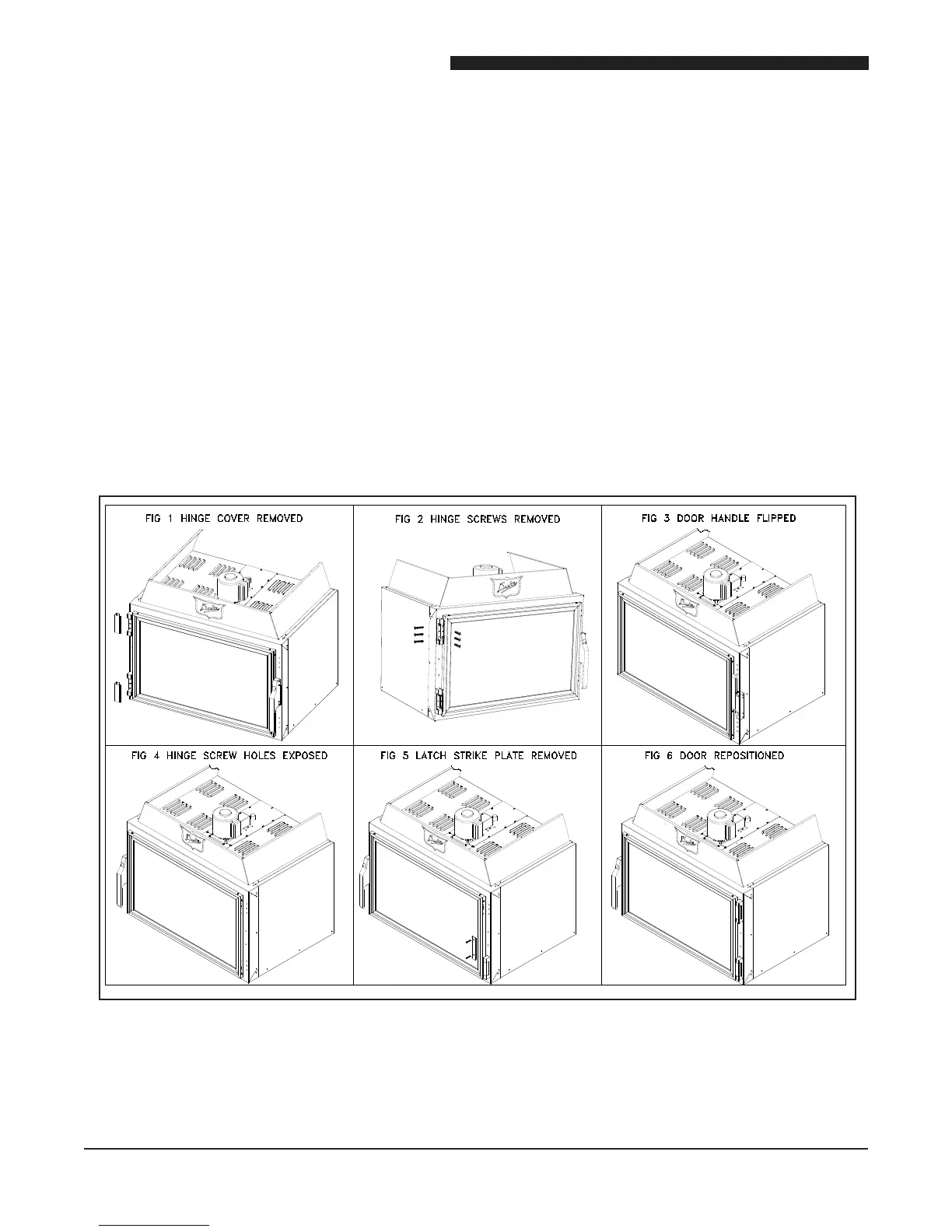

Figure 31: Illustration – Reversing Oven Door Direction
