Dulevo 100 elite - C - Vista Interna (Versione BS); C - Inside View (BS Version)

-4-
2010-04
6 / 24
Spazzatrice / Sweeper 100 Elite

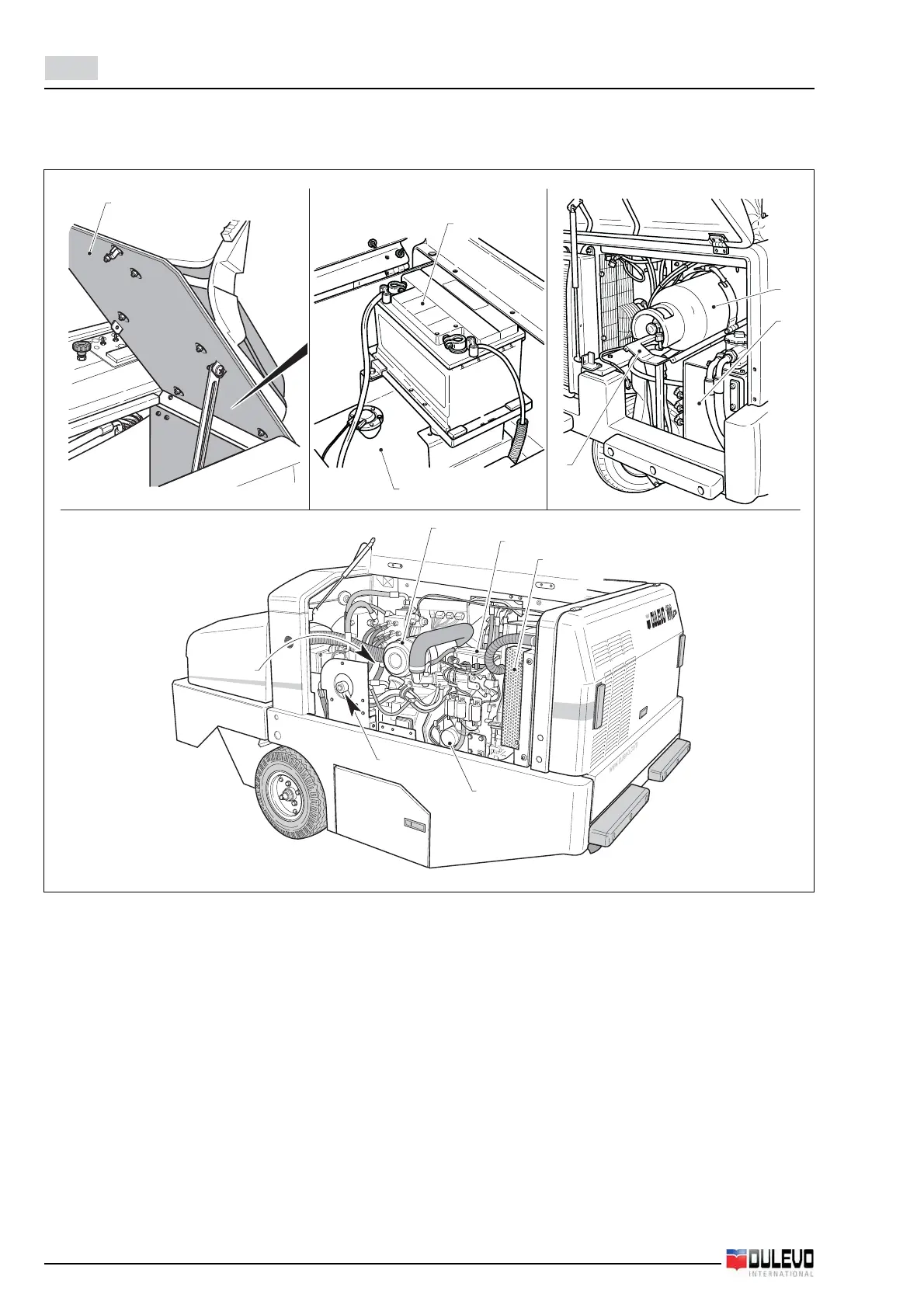

4.2.c - VISTA INTERNA (VERSIONE BS)
1) Cofano porta sedile
2) Batteria
3) Serbatoio carburante
4) Supporto bombola (OPT)
5) Bombola GPL (non fornita)
6) Serbatoio olio idraulico
7) Motore
8) Filtro aria
9) Filtro olio motore
10) Radiatore
11) Riduttore/vaporizzatore (OPT)
12) Pompe idrauliche
4
5
1
2
8
7
10
12
11
6
9
3
4.2.c - INSIDE VIEW (BS VERSION)
1) Seat cover
2) Battery
3) Fuel tank
4) Bottle support (OPT)
5) LPG bottle (Not supplied)
6) Hydraulic fluid tank
7) Engine
8) Air filter
9) Engine oil filter
10) Radiator
11) Reduction unit/sparkling nozzle (OPT)
12) Hydraulic pumps
