Dungs MPA22 - Service Mode: System Status and Address; Viewing Flame Quality and eBUS Address; Viewing Mode Indicator and Controller Address

Printed in Germany / M-MT-BOS
• Edition11.99 • # 231 763
93 … 112

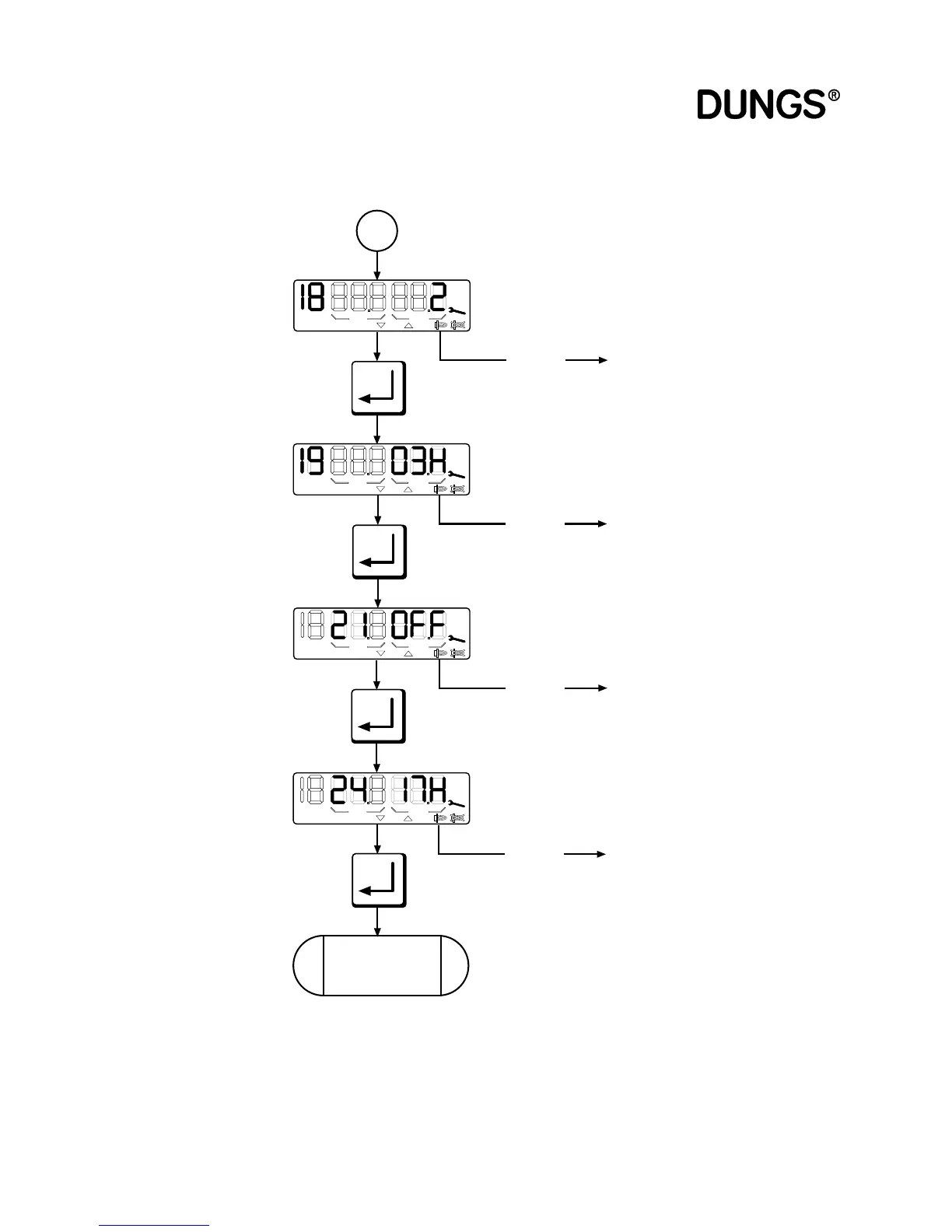

Display in service mode
Gas firing, pneumatic
modulation
Flame quality indication 0 - 4
0 = no flame
The eBUS address of this automatic
controller
approx. 0.2 s
Timeout
approx. 20 s
3
approx. 0.2 s
Timeout
approx. 20 s
approx. 0.2 s
Timeout
approx. 20 s
i
P
S
i
G
L/A
h
l,m
3
i
P
S
G
L/A
h
l,m
3
Back to operating
display
P
S
G
L/A
h
l,m
3
P
S
i
G
L/A
h
l,m
3
Timeout
approx. 20 s
approx. 0.2 s
Mode indicator: integrated valve
testing system is ON or OFF.
Controller address of this automatic
controller
