Dungs MPA22 - Service Mode Navigation: Three Stage Oil Firing; Viewing Ignition Point P0 and Working Point P1

Printed in Germany / M-MT-BOS
• Edition11.99 • # 231 763
95 … 112

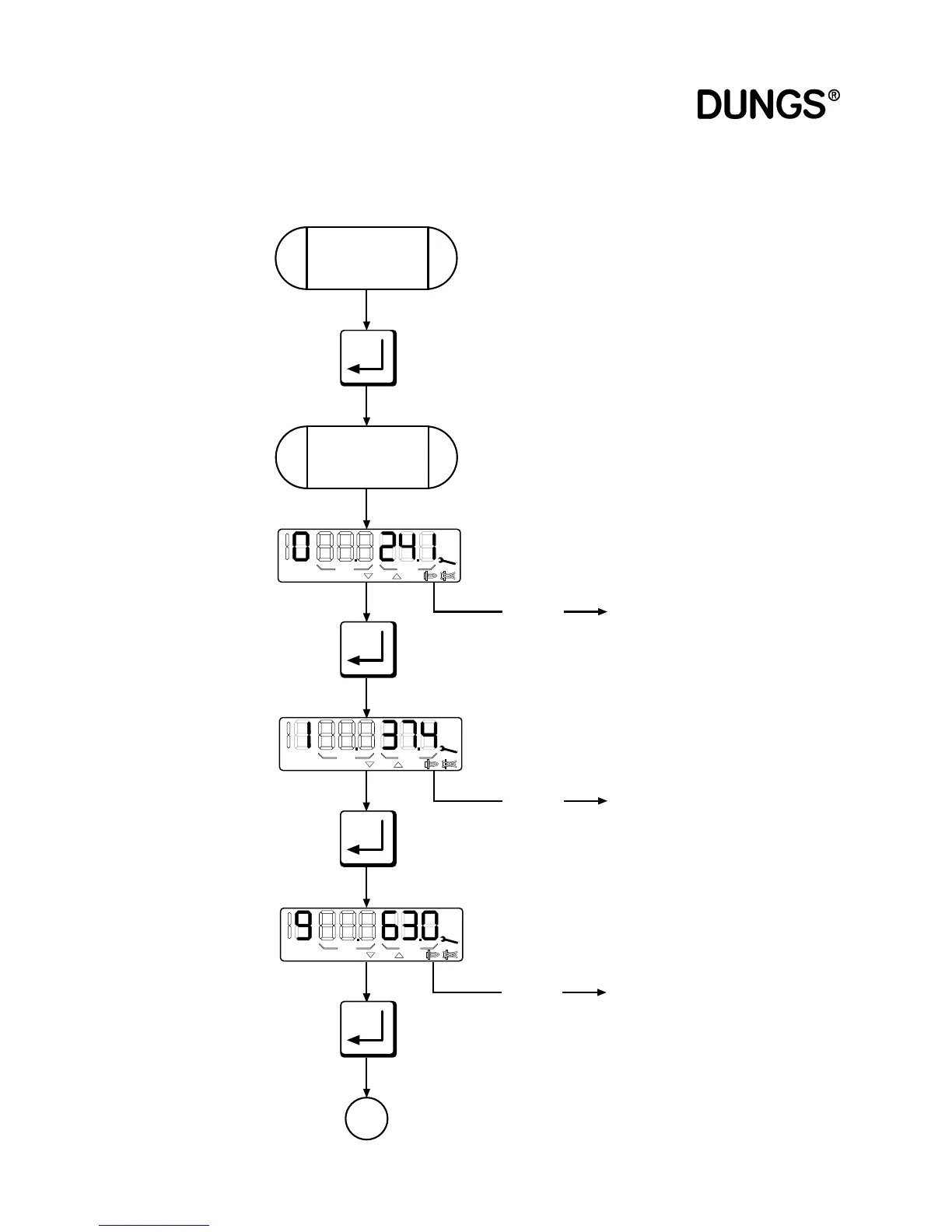

Display in service mode
Oil firing, three stage
Value of ignition point P0 for oil burner,
three-stage.
Value of working point, stage 1 (P1)
for oil burner, three-stage.
Value of changeover point P2 for
changeover between stage 1 and
stage 2 for oil burner, three-stage.
Press for approx. 0.5 s until the
"Wrench" symbol is displayed.
Release button. The "i" symbol is dis-
played for approx. 1.5 s beforehand.
P
S
G
L/A
h
l,m
3
N
approx. 0.2 s
approx. 0.2 s
Timeout
approx. 20 s
i
Service display
Operating display
P
S
i
G
L/A
h
l,m
3
P
S
G
L/A
h
l,m
3
1
approx. 0.2 s
Timeout
approx. 20 s
Timeout
approx. 20 s
approx. 0.2 s
