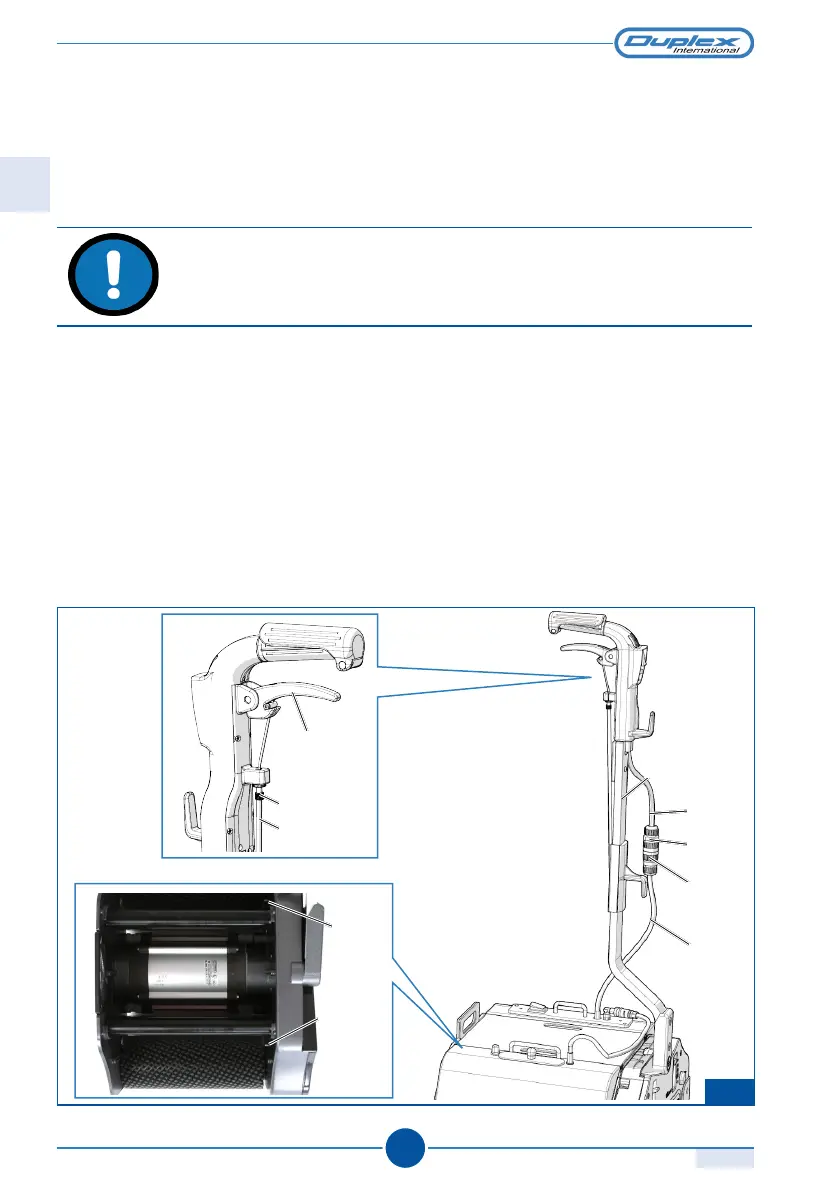

5) Adjust the screw 8 of the tensioning regulator 9 located under the lever 10 of the
handgrip paying attention to the movement of the feelers 11 that allow the liquid to
flow from the tanks.
6) Make sure that the feelers 11 remain flush with the side panel when the lever 10 is
not pulled
CAUTION
If the feelers protrude it may not be possible to insert or extract the
tank containing the liquid from their housings. Use a screwdriver
on the feelers to adjust their position either inwards or outwards.
For the Steam / Steam Plus models
7) Join the two connectors 12 on the cable 13
