Duplex Standard Series - Assembling the Main Handle

F.6
DUPLEX 340/420/620
1.0
95
1
4
7
5
6
6
6
2
3
3

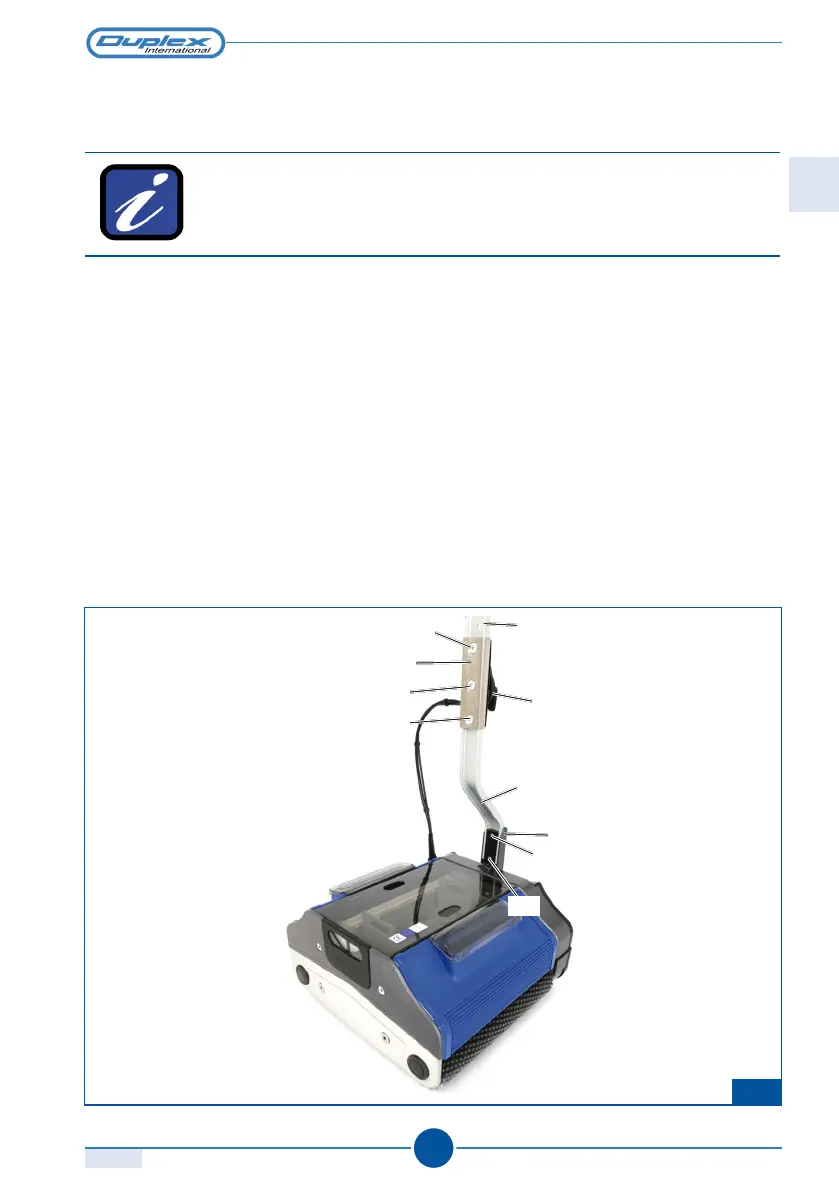

5.2 ASSEMBLING THE HANDLE
WARNING
Use the supplied hex wrench to assemble the handle as follows:
To assemble the handle, proceed as follows:
1) Insert the elbow of the handle 1 into the seat of the articulated support 2.
2) Tighten the two screws 3 using the screwdriver provided and tighten well.
3) Assemble the handgrip of the handle 4 by pushing it through the connecting plate 5
making sure that the screws 6 face inwards and that the cable-hook 7 faces downwards.
4) Tighten the three screws 6 using the same screwdriver provided.
Rev.
ASSEMBLING THE APPLIANCE
EN
