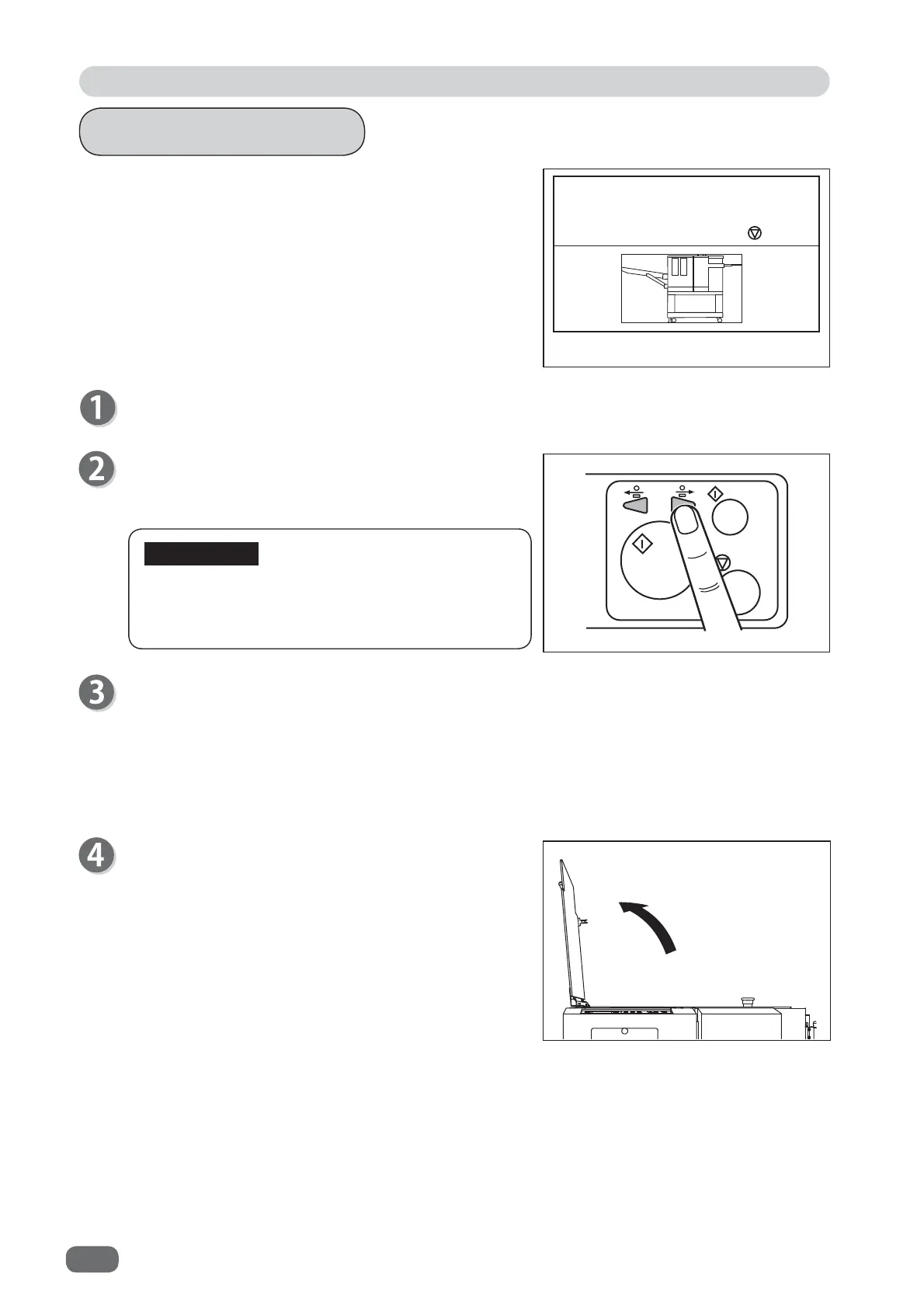

When a Document Jam Has Occurred
J05 SLOT1 AREA
Press the
elevator down switch
to lower the feed
tray to the bottommost position.
A document jam has occurred in slot 1.
-6/27$5($
5HPRYHGRFXPHQWIURP6ORWDUHD
WRFOHDU


IMPORTANT
Close the
top cover
when operating the machine.
The machine does not work when the
top cover
is open.
Press the JOG (forward/backward) key to eject the
document.
Press the STOP key to clear the error.
The machine is reset and the error message is
cleared.
If you cannot remove the jammed document in the
procedure above, follow the procedure below.
Open the
top cover
.
Loosen the two
fi xing screws
on the module in
slot 1
.
