Duplo DC-516 - Replacing the Module in Slot 1; Replacing the Module in Slot 2

2
19
Preparation Before Use
Before Using This Machine
1
Replacing the Module in Slot 1
Replacing the Module in Slot 2

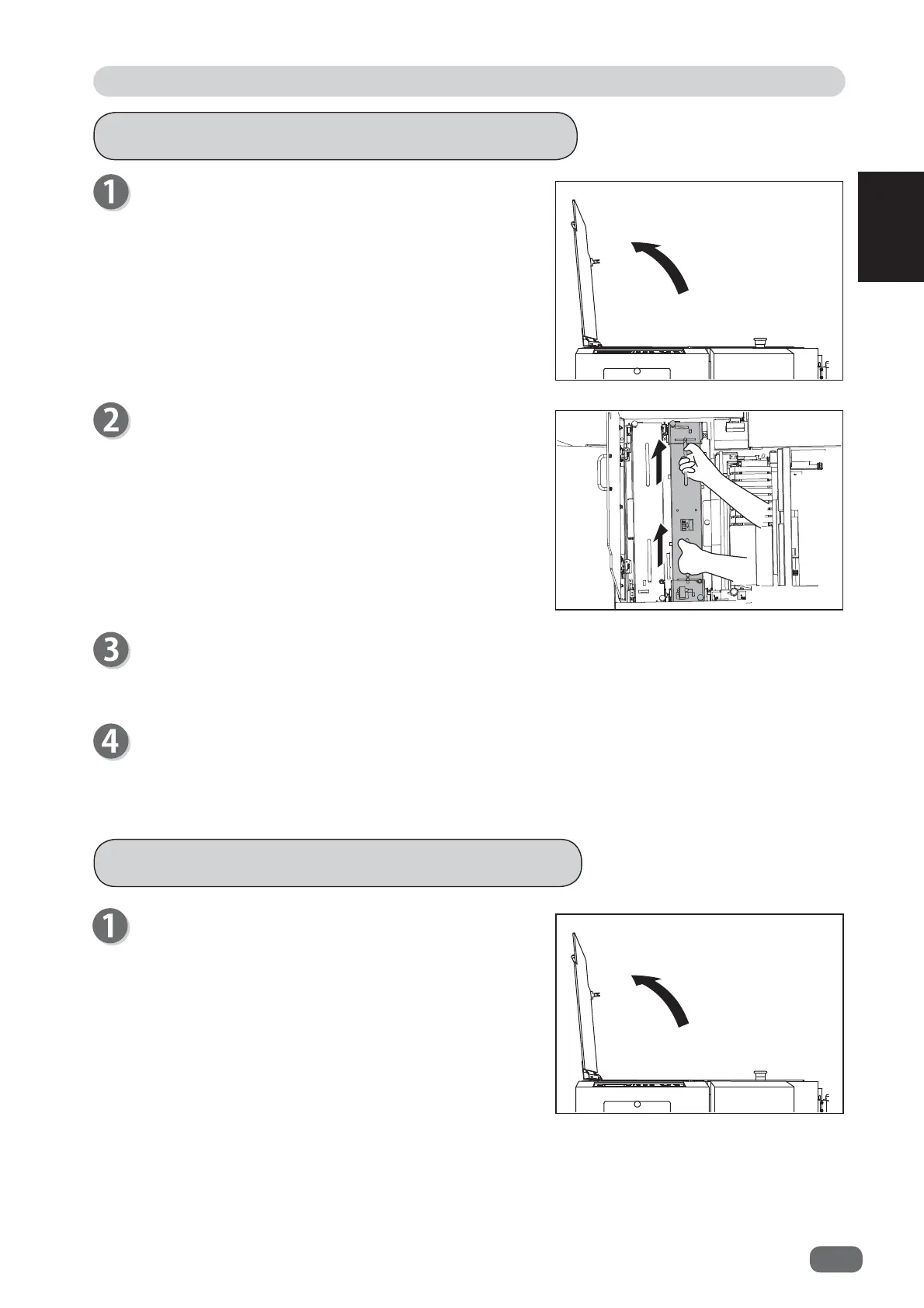

Open the
top cover
.
Loosen the two
fi xing screws
on the module in
slot 1
.
Grasp the handles to take out the module by lifting it
up.
Open the
top cover
.
Loosen the two
fi xing screws
on the module in
slot 2
.
Install the module according to the
positioning pin
of
slot 1
.
Tighten the
fi xing screws
(two each) to secure the
module.
Close the
top cover
.
