Slitter Modules
Before Using This Machine
1

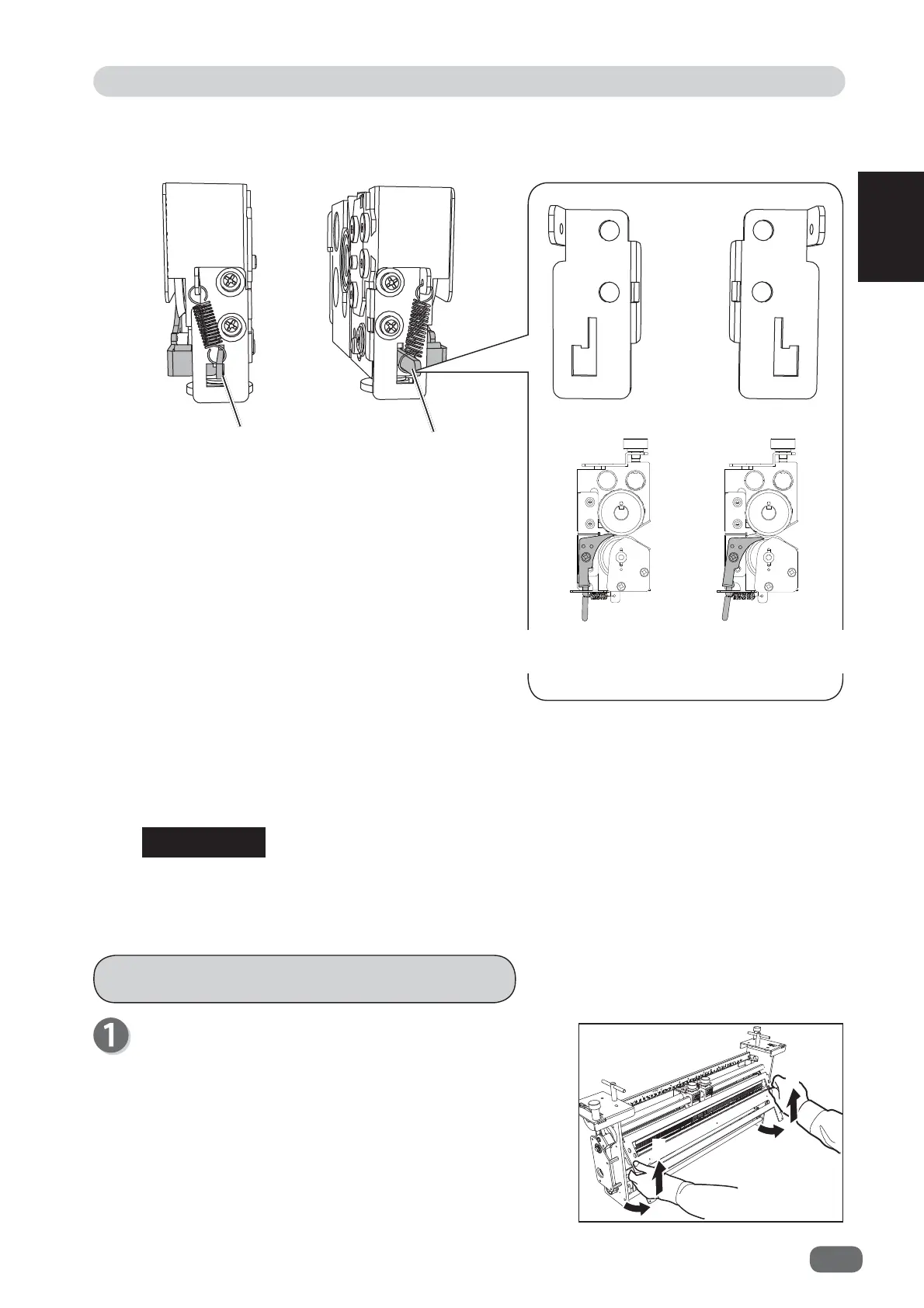

Removing the Slitter Units
Grasp the lower part of the
guide plate
(front, document
feed side) to remove it from the catcher. Slide it upward
to detach from the slitter module.
Gutter defl ectors
are attached to the
slitter units (left/right)
.
Adjusting the gutter defl ectors in the position
1
in the fi gure above drops gutter in the waste
box.
Adjusting the gutter defl ectors in the position
2
ejects gutter in the ejection tray as fi nished
products.
In order to cut off margins and drop them in the waste box, the
margin guides (left/right)
are attached only to the
slitter units (left/right)
on both edges.
● Lower side
REFERENCE
• Document feed side
1
1
2
2
Slitter unit (left) Slitter unit (right)
Gutter defl ector Gutter defl ector
1
: When dropping the gutter slit in the waste box.
2
: When there is no gutter slit.
1
1
1
2
2
2
