Duplo DC-516 - Skew Adjustment

2
13
Preparation Before Use
Before Using This Machine
1

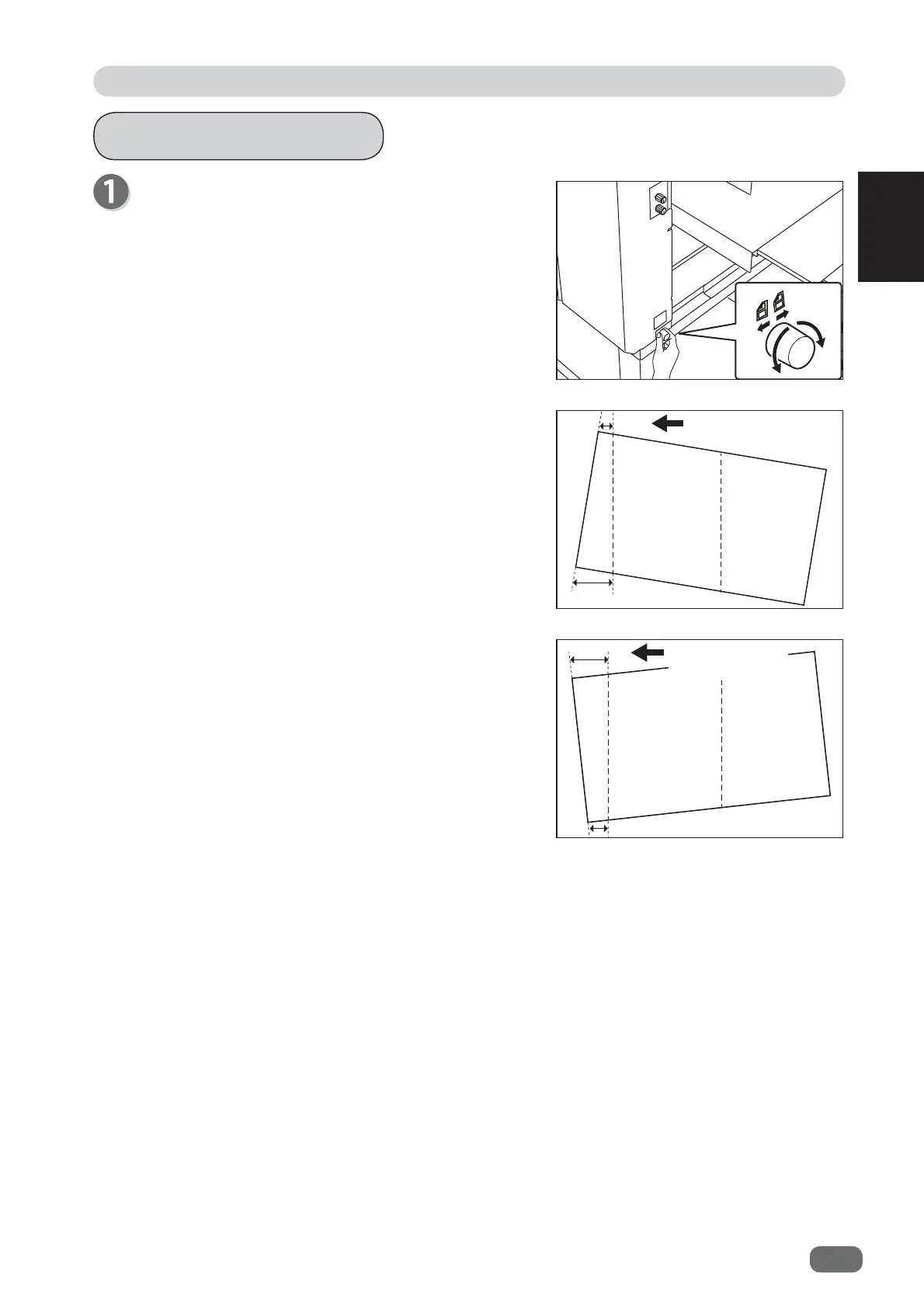

Skew Adjustment
• When the distance on the operator’s side is longer
than that on the non-operator’s side:
Turn the
skew adjustment knob
clockwise.
• When the distance on the operator’s side is shorter
than that on the non-operator’s side:
Turn the
skew adjustment knob
counterclockwise.
If the fi nished product is skewed, adjust the
skew
adjustment knob
.
Document
feed direction
Operator’s side
Operator’s side
Document feed
direction
