26
Slitter Modules

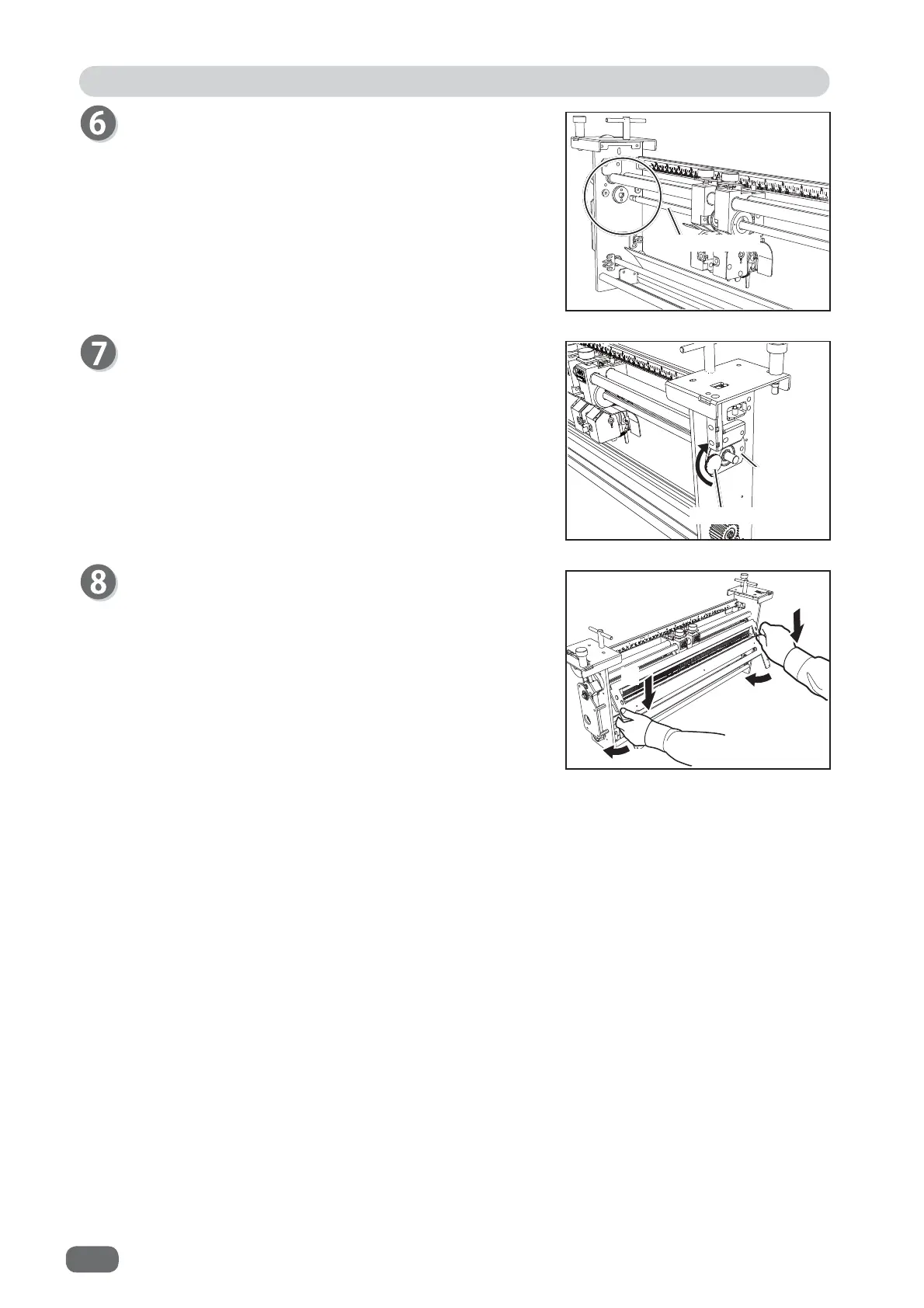

Hook the upper part of the
guide plate (front)
in the
slitter module
, and fi t it in the catchers in both of the
lower left and the lower right parts.
Put the
driving shaf
t though the
slitter units
and insert
the edge of the
driving shaft
in the hole of the bearing
holder.
Inset the
bearing holder
in the hole of the frame until it
stops and secure it with the
thumb screw
.
•
Document feed side
1
1
2
2
Driving shaft
Bearing
holder
Thumb screw
To Next Page
