3-20
Chapter 3 ADVANCED OPERATION
Paper
Side guide
Paper set lever
36 mm/
1-1/2 inches
3

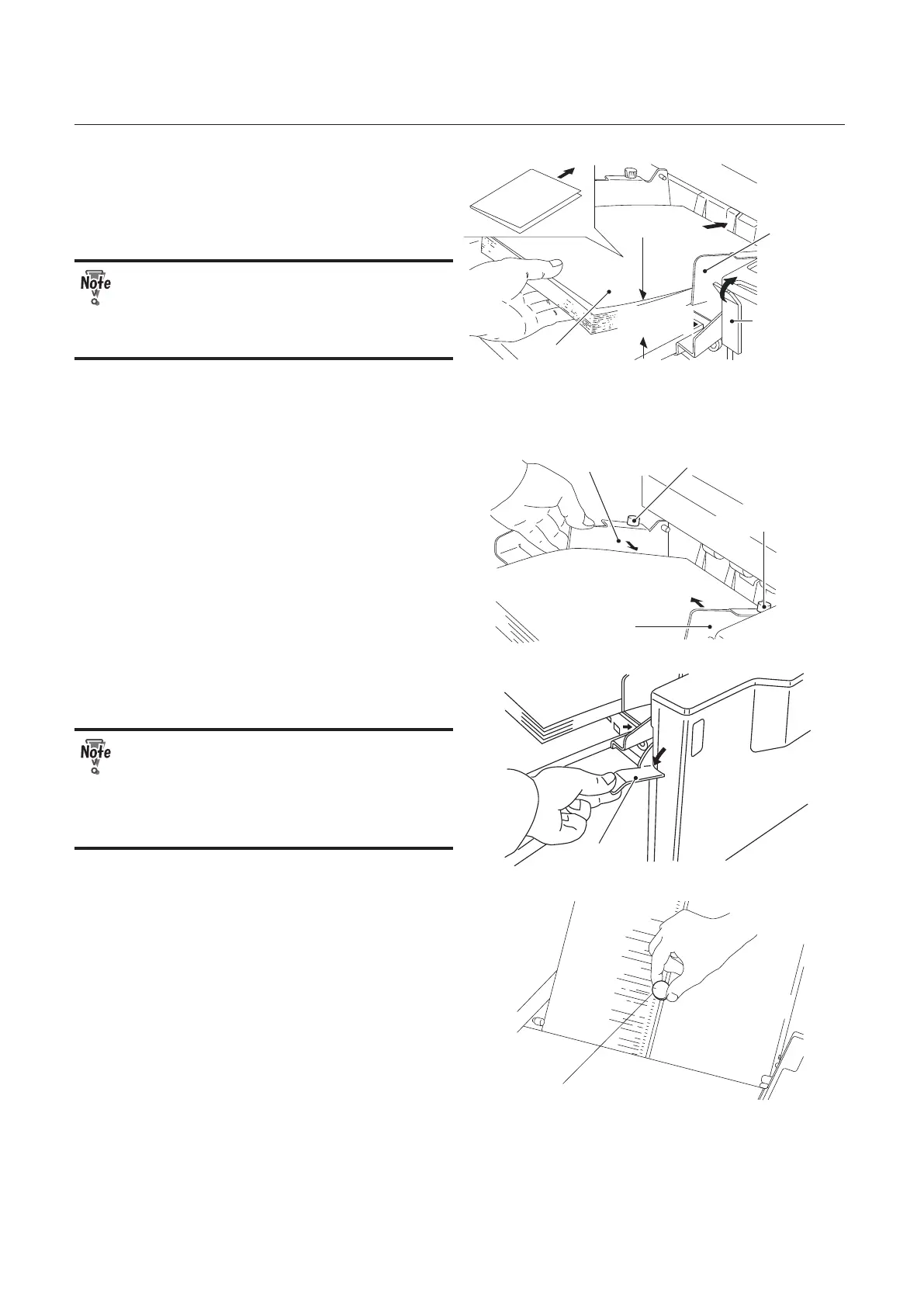

Raise the paper set lever and stack
the single-folded paper on the paper
feed table with the folded line facing
the non-operator's side.
The amount of paper stacked on the pa-
per feed table should be approximately
2/3 (approx. 36 mm/1-1/2 inches) of the
height of the side guide.
4
Loosen the xing screws of the side
guides.
Side guide
Side guide
Fixing screw
Fixing screw
5
After pressing the side guide to each
side of the paper lightly, tighten the
screws to secure the side guides.
Paper set lever
6
Lower the paper set lever.
The paper feed table will be raised.
Make sure that you lower the paper set
lever. If you start operations without the
paper set lever lowered, the paper feed
rings will run idle, causing the machine
to stop.
Rough adjustment knob
7
Move the rough adjustment knob of
the rst folding plate to the position
for single-fold A4/LT paper.
For EU
If the original paper size is B4, A4 or B5,
the knob should be moved to the position of
B5, A5 or B6 respectively.
To Next Page
