3-25
Chapter 3 ADVANCED OPERATION
Side guide
Paper set lever
36 mm/
1-1/2 inches
4

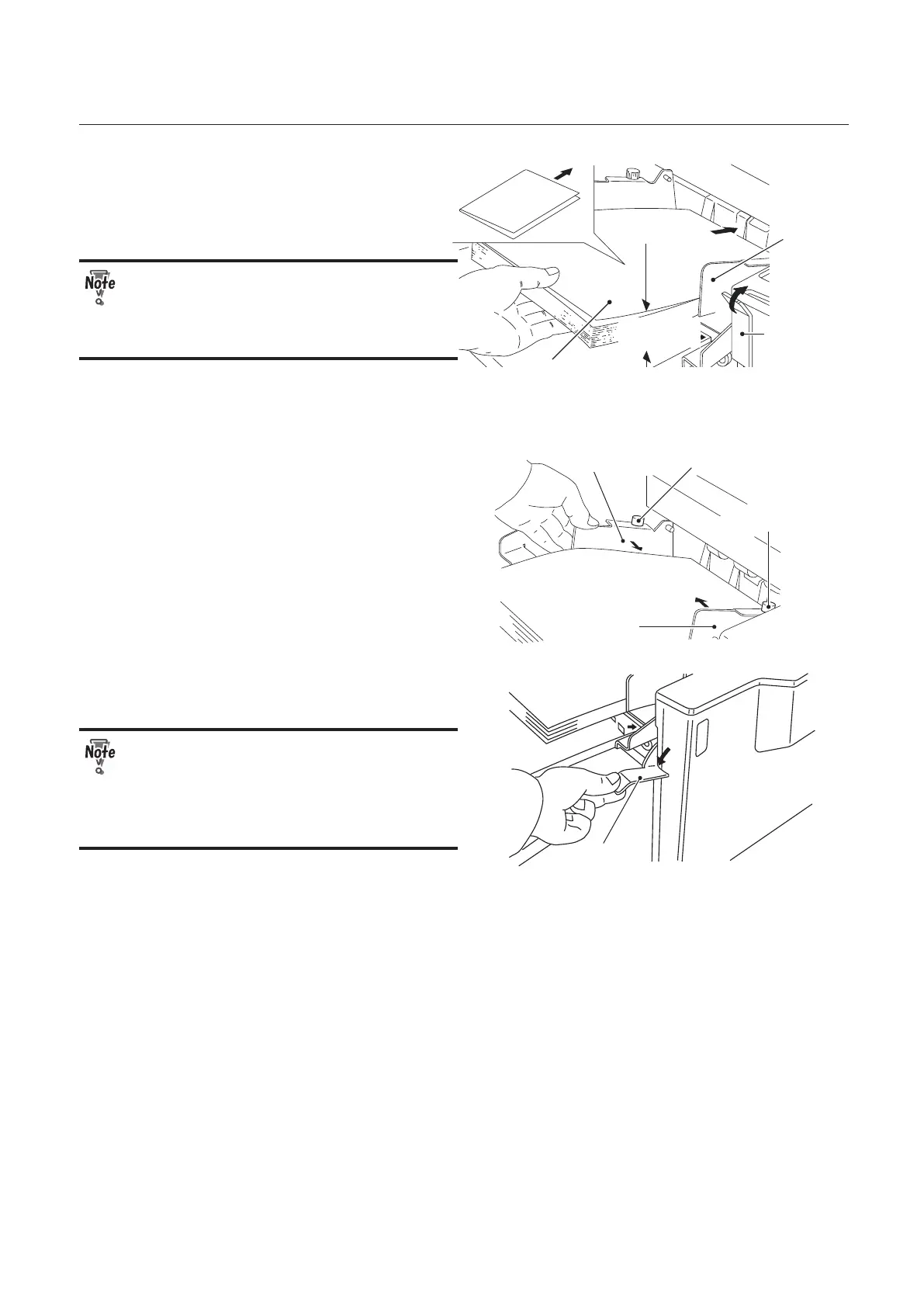

Raise the paper set lever and stack
the single-folded paper on the paper
feed table with the folded line facing
the non-operator's side.
The amount of paper stacked on the pa-
per feed table should be approximately
2/3 (approx. 36 mm/1-1/2 inches) of the
height of the side guide.
5
Loosen the xing screws of the side
guides.
Side guide
Side guide
Fixing screw
Fixing screw
6
After pressing the side guide to each
side of the paper lightly, tighten the
screws to secure the side guides.
Paper set lever
7
Lower the paper set lever.
The paper feed table will be raised.
Make sure that you lower the paper set
lever. If you start operations without the
paper set lever lowered, the paper feed
rings will run idle, causing the machine
to stop.
8
Refer to Table of Rough Adjustment
Knob Positions to check the appro-
priate positions of rst and second
folding plates.
To Next Page
