3-26
Chapter 3 ADVANCED OPERATION
Table of Rough Adjustment Knob Positions
L=Paper length
Folding
Pattern
Single Fold Letter Fold
First Folding
Plate
L/2 L/3
Second
Folding Plate
Upper End L/3
Rough adjustment knob

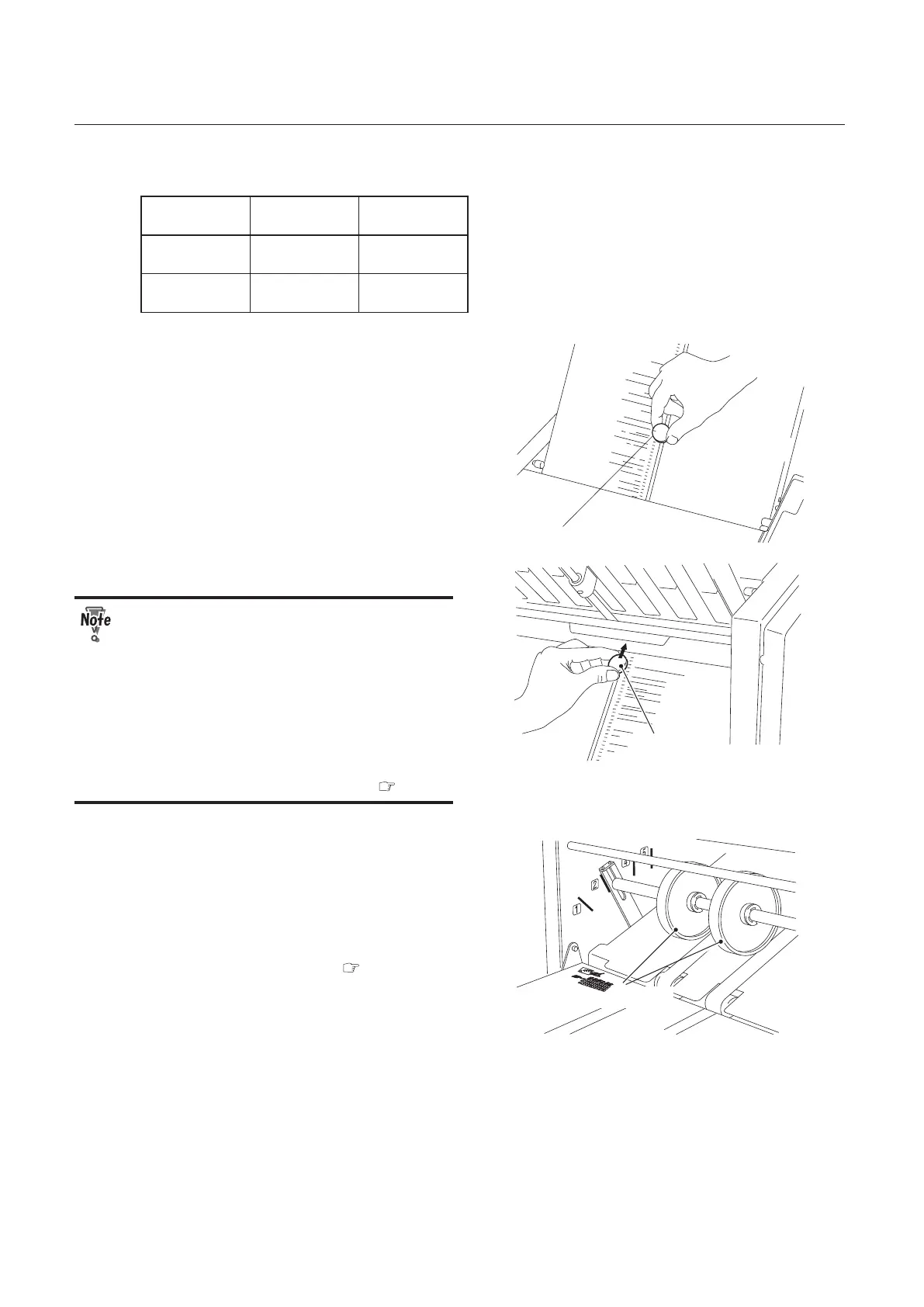

1) According to the table of rough adjust-
ment knob positions, move the knob of
the rst folding plate to 150 mm/6.00
inches (300÷2/12.00÷2).
Rough
adjustment knob
2) Move the rough adjustment knob of the
second folding plate to the upper end.
●
The rough adjustment knob cannot
be turned either clockwise or coun-
terclockwise. Make sure that you pull
up the knob when you want to move
it. (p.2-4)
●
After moving the rough adjustment
knob, turn the ne adjustment knob
to the right and left a few times to
check that it moves slightly. ( p.2-5)
Stacker roller
9
Move the stacker rollers to the ap-
propriate position.
The machine shown in the gure to the
right is a North America model.
Refer to Table of Stacker Rollers Position
for their appropriate position ( p.3-13).
For this example, move the stacker rollers
to "2."
Refer to procedures between step 10 of
p.3-21 and step 23 of p.3-24 for rest proce-
dures.
To Next Page
