Duplo DocuCutter CC-229 Service And Parts Manual

- 9 -

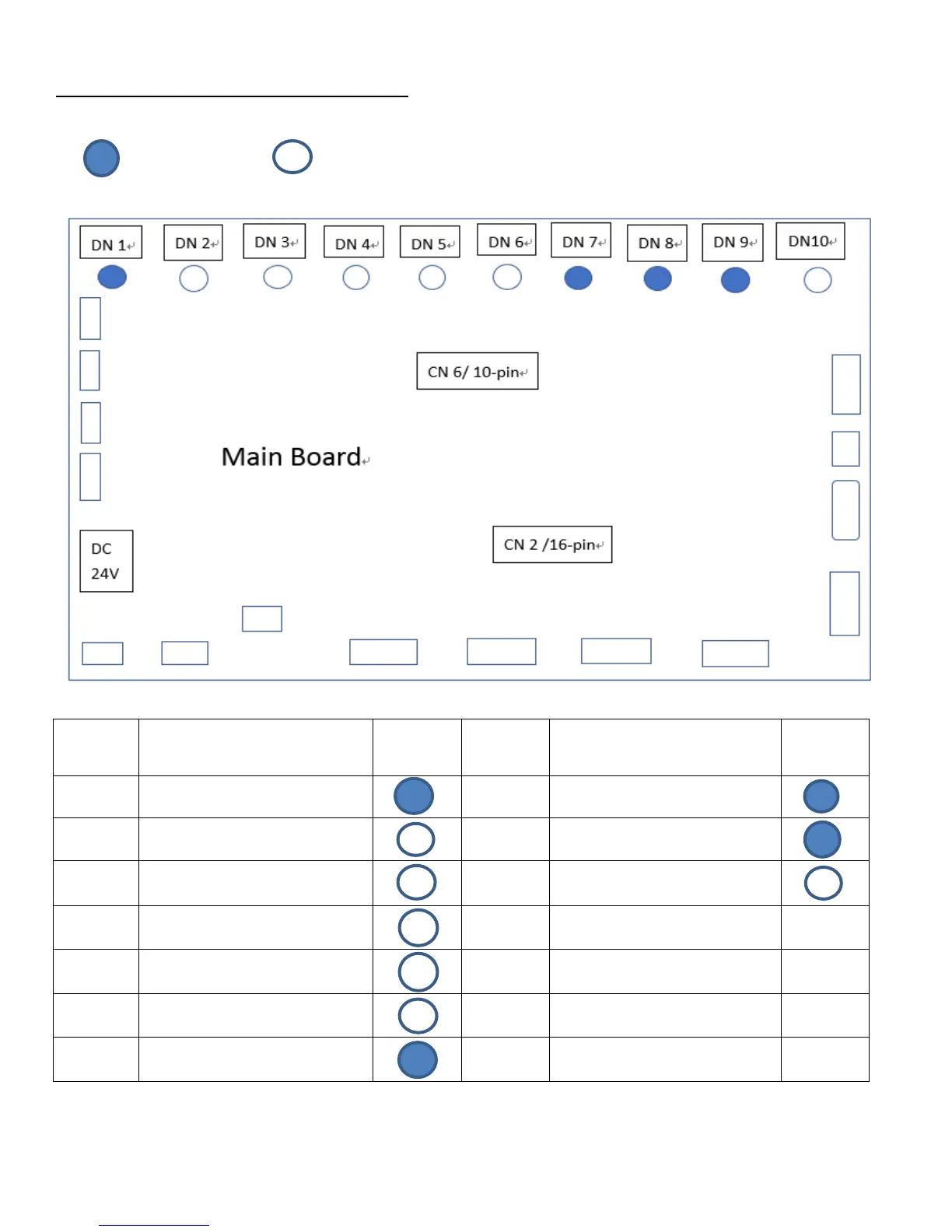

Electric Connections – Main Board
LED On LED Off while power is on and feed tray has paper
Connector
Connects to LED
On/OFF
Connector Connects to LED
On/OFF
DN1 Feed Tray Sensor S1 DN8 Waste Bin Switch S8
DN2 Transport Sensor S2 DN9 Rear Cover Switch S9
DN3 Top Margin/Mark Reader S3 DN10 Not in use
DN4 Die Home Position Sensor S4 CN2 Driver Board CN1
DN5 Cutter Sensor S5 CN6 Driver Board CN2
DN6 Cutter Index S6 CN4 24V Power Supply
DN7 Top Cover Switch S7

Duplo DocuCutter CC-229 Specifications

General

Brand	Duplo
Model	DocuCutter CC-229
Category	Cutter
Language	English
