- 37 -

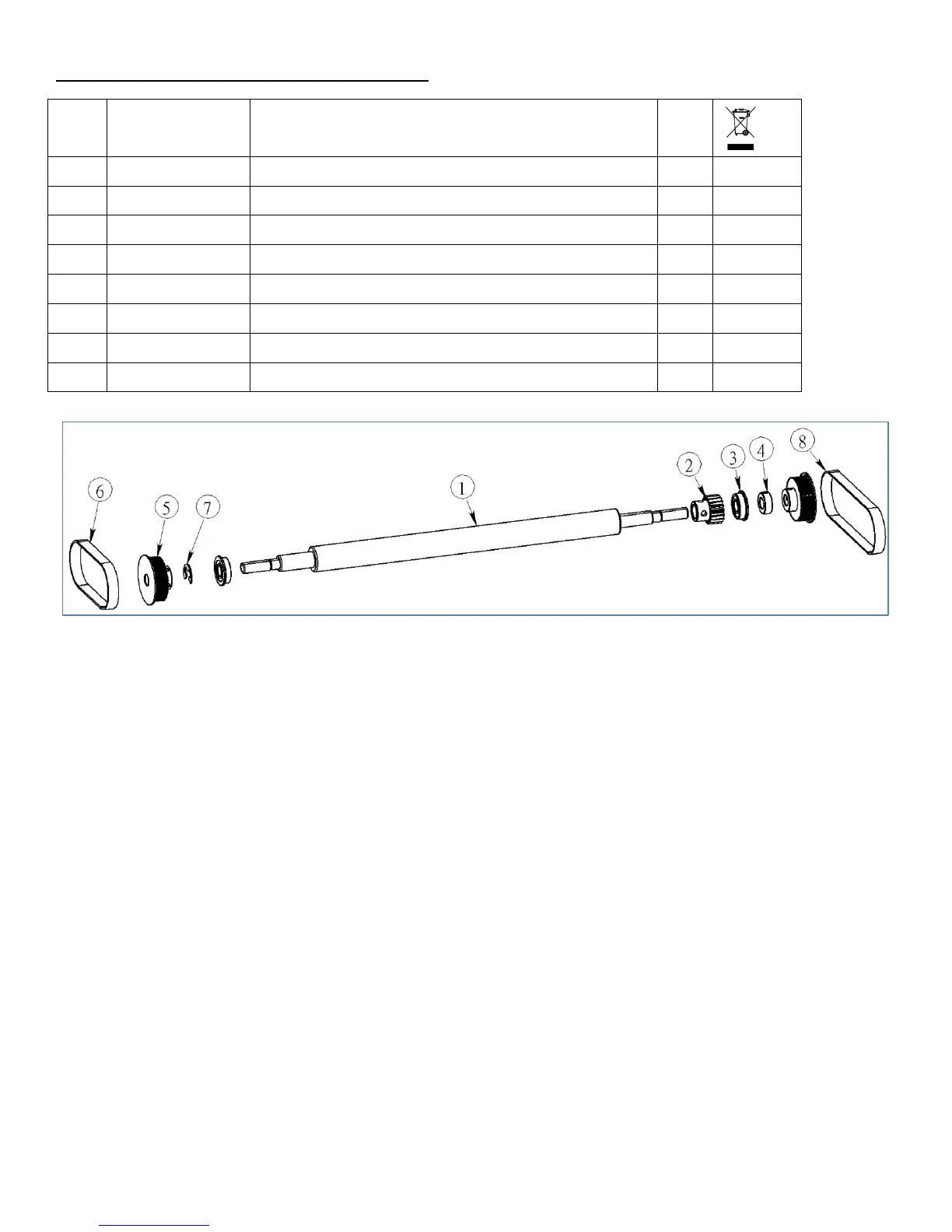

Middle Lower Trasport Roller Asm (Fig. 9)
NO P/N Name Q’TY
1 881-H01-000A
Roller, Transport, CC-228 1
2 00G-M10-1910
Gear, M1, 19T, ID 10 1
3 00B-00F-1980
Ball Bearing, LF-1980ZZ 2
4 00C-000-1205
Collar, OD16, ID 8
1
5 02P-51G-08WK
Pulley, 0 . 2 P, 51G, ID 8-WK 1
6 00B-MXL-099C
Belt, 0.2P, 99MXL, 8mm 1
MAR
7
00E-M08-000E
E-Ring, 8mm 1
8
00B-MXL-132C
Belt, 0.2P, 132MXL, 8mm 1
MAR
Fig. 9
