- 36 -

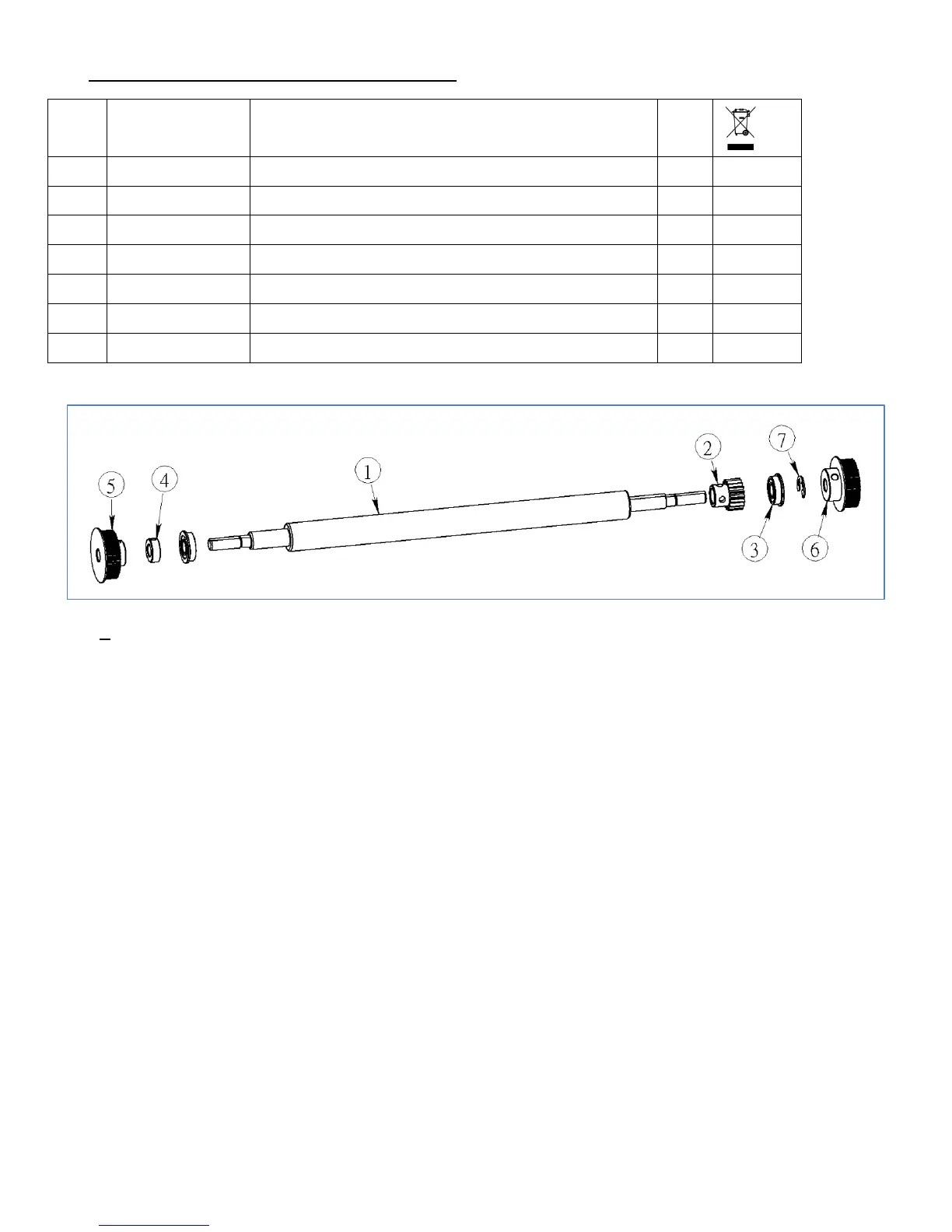

Front Lower Trasport Roller Asm (Fig. 8)
NO P/N Name Q’TY
1 881-H01-000A
Roller, Transport, CC-228 1
2 00G-M10-1910
Gear, M1, 19T, ID10 1
3 00B-00F-1980
Ball Bearing, LF-1980ZZ 2
4 00C-000-1205
Collar, OD16, ID 8
1
5 02P-51G-08WK
Pulley, 0 . 2 P, 51G, ID 8-WK 1
6 02P-51G-080A
Pulley, 0 . 2 P, 51G, ID 8 1
7
00E-M08-000E
E-Ring, 8mm 1
Fig. 8
