Duplo DocuCutter CC-229 Service And Parts Manual

- 44 -

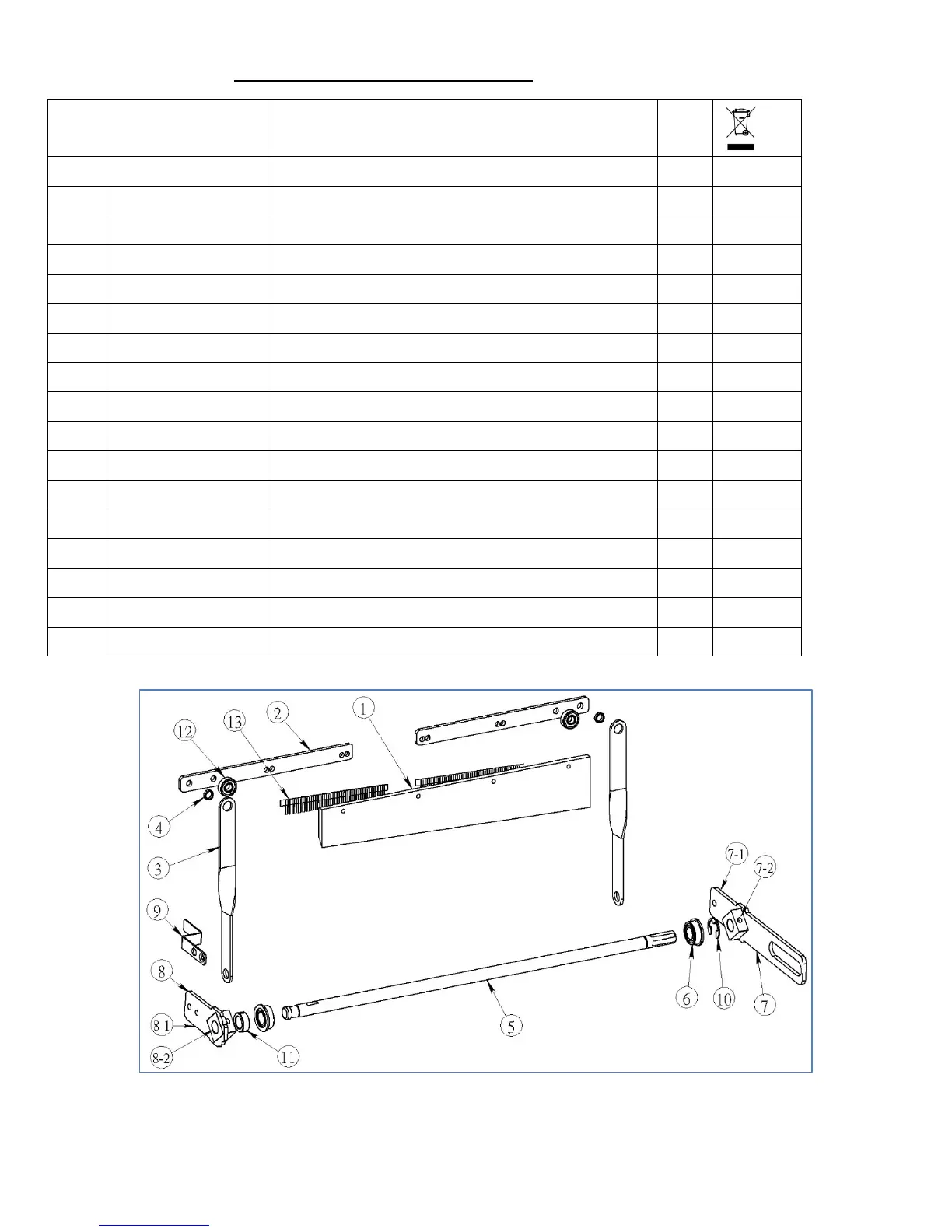

881-Q00-000A Upper Knife Driving Asm (Fig. 15)
NO P/N Name Q’TY
1 881-704-000A
Knife, Upper. CC-228 1
2 881-P02-000A
Plate, Upper KNIFE MOUNTING 2
3 881-719-000A
Link 2
4 881-701-000A
Bushing, OD7.9, ID6.1 2
5 881-P05-000A
Shaft, Knife Driving 1
6 00B-00F-1910
Ball Bearing, LF-1910zz 2
7
881-721-000A
Arm, R, Knife Driving 1
881-P07-010A
Plate, Knife Driving 1
881-P07-020A
Block, Arm Link 1
8 881-720-000A
Arm, L, Knife Driving 1
881-P08-010A
Plate, Knife Driving 1
881-P07-020A
Block, Arm Link 1
9 881-722-000A
Shutter, Index, CC-228 1
10 00E-M10-000E
E-Ring, 10mm 1
11
00C-000-1201
Collar, OD16, ID10
1
12 00B-00R-1560
Ball Bearing, R-1560ZZ 2
13
00B-000-1101
Anti-Static Brush 3” 2
