Duplo DocuCutter CC-229 Service And Parts Manual

- 35 -

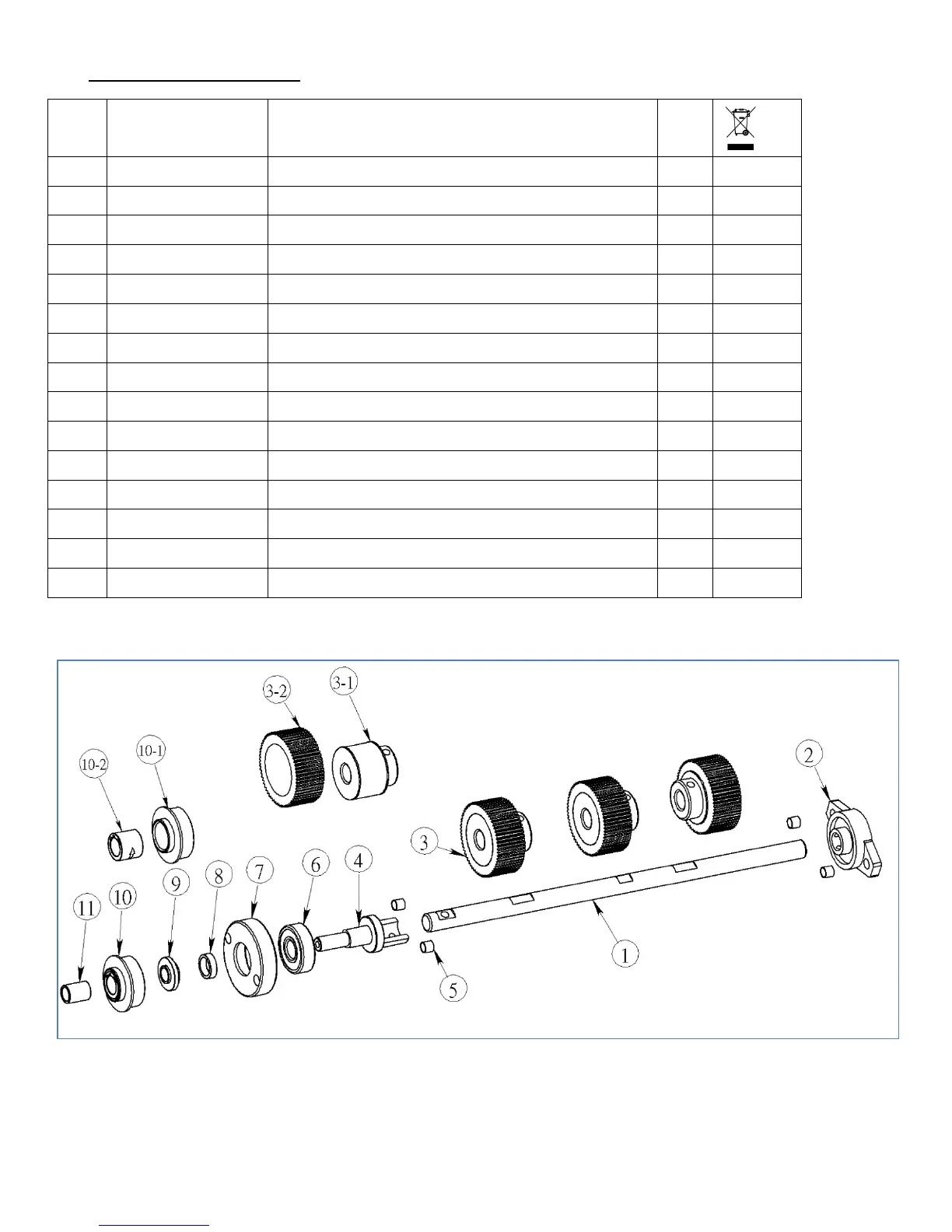

Feed Roller Asm (Fig. 7)
NO P/N Name Q’TY
1 881-N01-000A
Shaft, Feed Roller 1
2 00B-0UF-L001
Pillow Block Ball Bearings, UFL-001 1
3 00R-000-1502
Feed Roller, CC-228 3
881-N03-000A
Core, Feed Roller 1
00R-010-520A
Feed Roller 1
PU
4 881-N04-000A
Shaft, Feed Driving 1
5
162-107-0400
Bushing, OD7, ID6(162-107-0400) 4
6
00B-000-6201
Ball Bearing, 6201ZZ 1
7
881-N07-000A
Housing, Ball Bearing 6201ZZ 1
8 881-N12-000A
Bushing, OD16, ID12.1 1
9 881-N08-000A
Gasket 1
Nylon
10 00A-51G-FC12
Asm, Pulley/Clutch, 51G/FC12 1
02P-51G-180A
Pulley, 0 . 2 P, 51G,ID18 1
00O-000-FC12
One Way Clutch, OD18, ID12, FC-12 1
11 00B-000-1209
Hardening Bushing, OD12, ID9(LRT-91216) 1
Fig. 7
