LED flashing: the vibration behaviour
of the instrument is impaired.
– Contact pressure of the instru-
ment is too high during treatment
– reduce the contact pressure.
– Check the instrument for signs of
wear or bending.
18 LED in the fluid container
LED on: normal operation, fluid con-
tainer filled enough.
LED flashing: Fluid level low.
If the minimum fluid level is reached,
the LED of the fluid container will
start to flash and an acoustic warn-
ing signal will sound (3x high-
pitched sound).
Acoustic signals
Audible sig-
nals
Trigger/situation
Clicking noise – Touching of the operating
panel
– Function activated,
e.g. RINSE, CLEAN
Long, low
audible signal
– Function cannot be per-
formed
Warning sig-
nal, 3x high-
pitched audi-
ble signal
– Fluid level at minimum
– Waiting for fluid during the
cleaning process

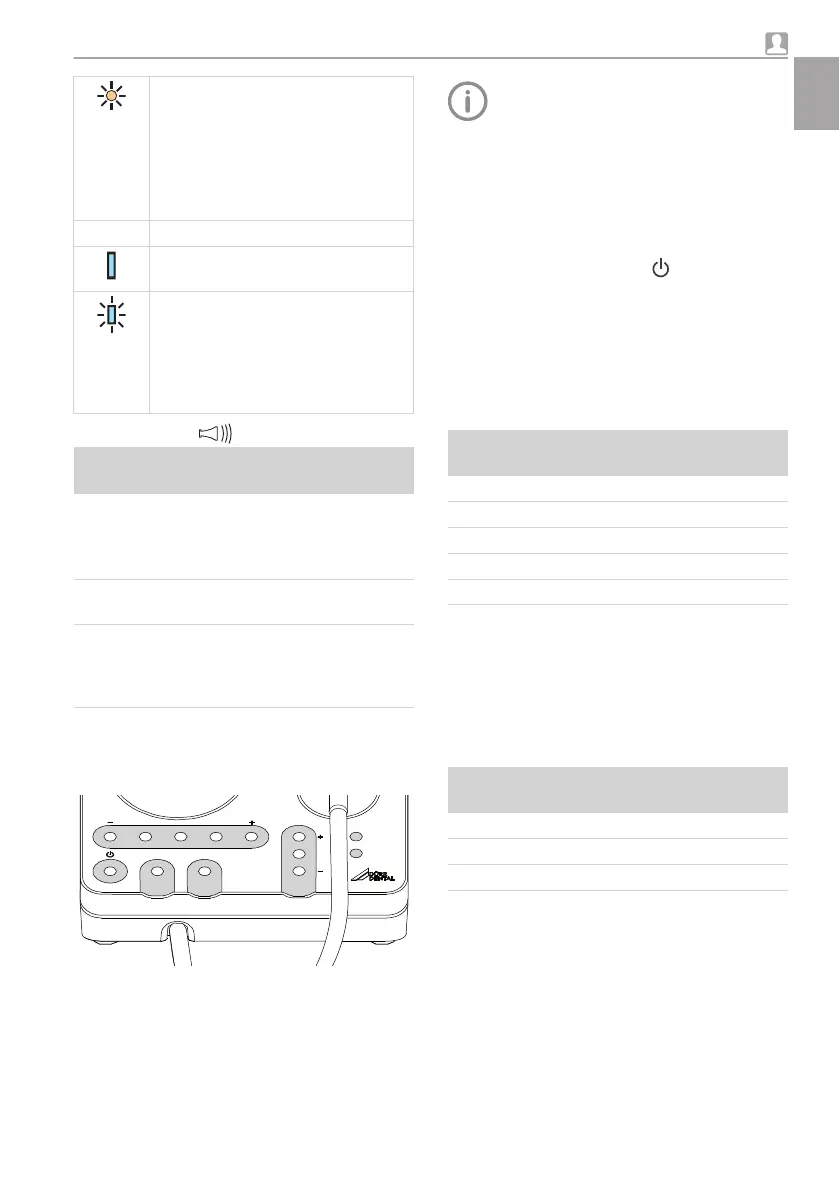

10.2 Adjustment options
Operating panel
CLEANRINSE
POWER
LIQUID
PEDAL
FUNCTION
Settings on operating panel
The settings are changed by touching but with-
out applying pressure.
The LEDs for POWER and LIQUID are
only active and light up when a handpiece
is inserted.
If no handpiece is inserted, the settings
for POWER and LIQUID cannot be adjus-
ted.
ON/Standby
The unit can be switched on or into standby
mode via the operating panel
ON / Standby.
The unit is equipped with an automatic standby
mode in order to save electricity. When the unit is
left unused for 30 minutes it switches off auto-
matically.
POWER
The power is adjusted from 1 to 5; the settings
are displayed via the 5 LEDs:
LED dis-
play
Power in %
1 20
2 40
3 60
4 80
5 100
The power is set to level 5 as the default factory
setting on delivery.
The adjustable operating frequency for the Scaler
handpiece is 20 - 120 mm
LIQUID
The water amount can be selected from 3 set-
tings and is displayed via 3 LEDs:
LED dis-
play
Water amount in ml/min
1 approx. 30
2 approx. 37-40
3 approx. 45
RINSE
After every treatment the system must be rinsed
with water.
The rinsing process is started by touching the
RINSE button; it ends automatically after approx.
30 seconds.
If a rinsing process is running it can be interrup-
ted at any time by touching the RINSE button.
Usage
9000-615-32/02 2012V003 23
EN
