3
The maximum frame rates (in frames per second) for the two available compression
modes are:
For more information about these video parameters, refer to the Device Configurator
User Manual.
Shipment
Your 9540 IP Camera shipment contains the following items:
The camera
A power-over-Ethernet kit (injector and power cord)
The DVTel Documentation and Utilities CD, which contains documentation for
the product as well as the Device Configurator application.
The 9540 IP Camera Quick Install Guide

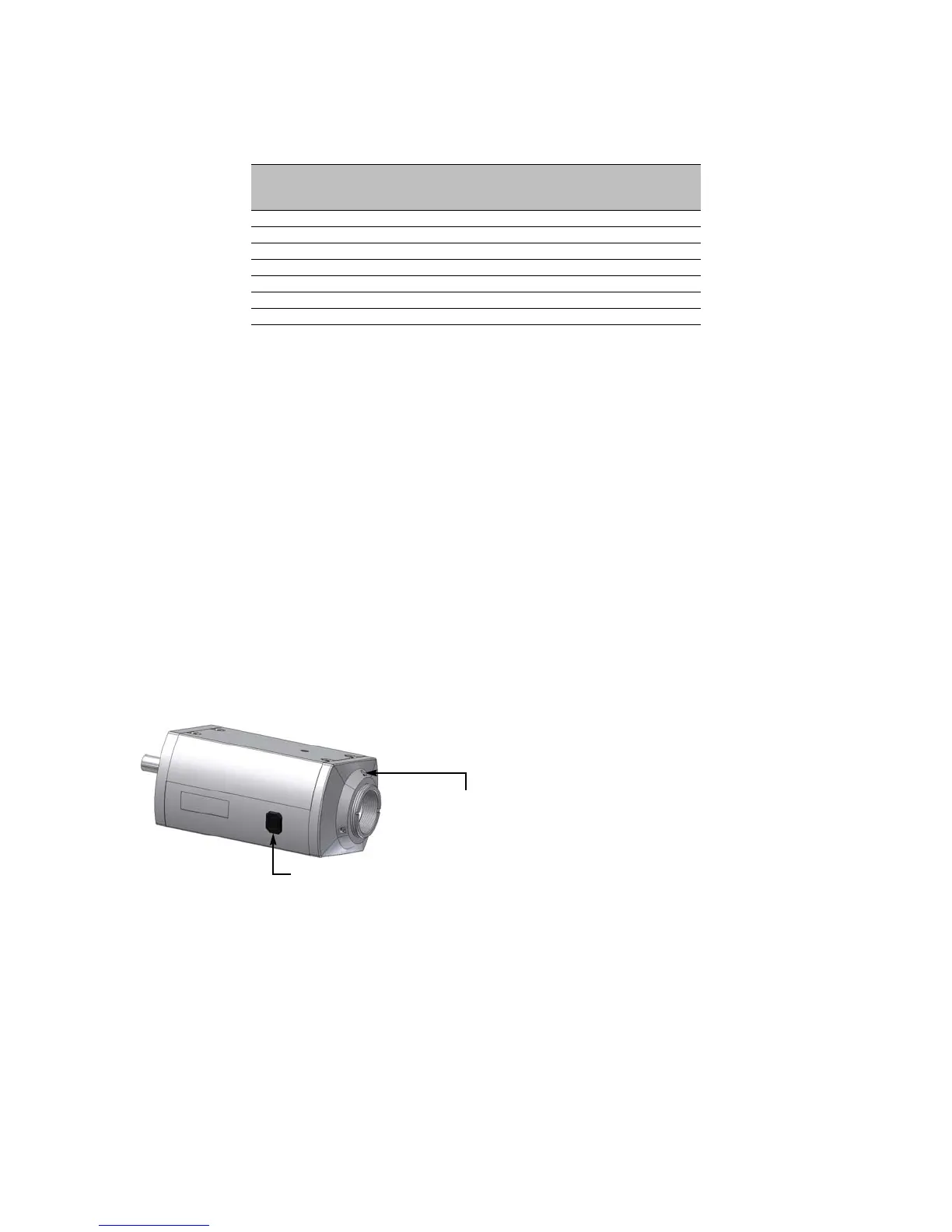

Casing Description
The 9540 IP Camera electronics are enclosed in a non-weatherproof steel casing that
should not be used outdoors.
The camera’s side and front panels contain an auto iris lens adaptor and a locking
screw:
The back panel consists of:
An RJ-45 jack supporting PoE
A system status LED
A reset button
A female BNC connector for video output
A five-pole connector for dry contact inputs and a relay output.
Resolution MPEG-4-based mode MPEG-4 ISO 14496-2
compliant mode
NTSC PAL NTSC PAL
QCIF 30 25 30 25
CIF 30 25 30 25
2CIFH 30 25 30 25
4CIF 30 25 15 12.5
All lines 30 25 30 25
2/3 D1 30 25 30 25
VGA 30 25 30 25
Auto iris lens adaptor
Locking screw
