Dyna-Glo DGSS1382VCS - Assembly Instructions - Access Door & Tray; Side Access Door Installation; Access Tray Handle Attachment

15

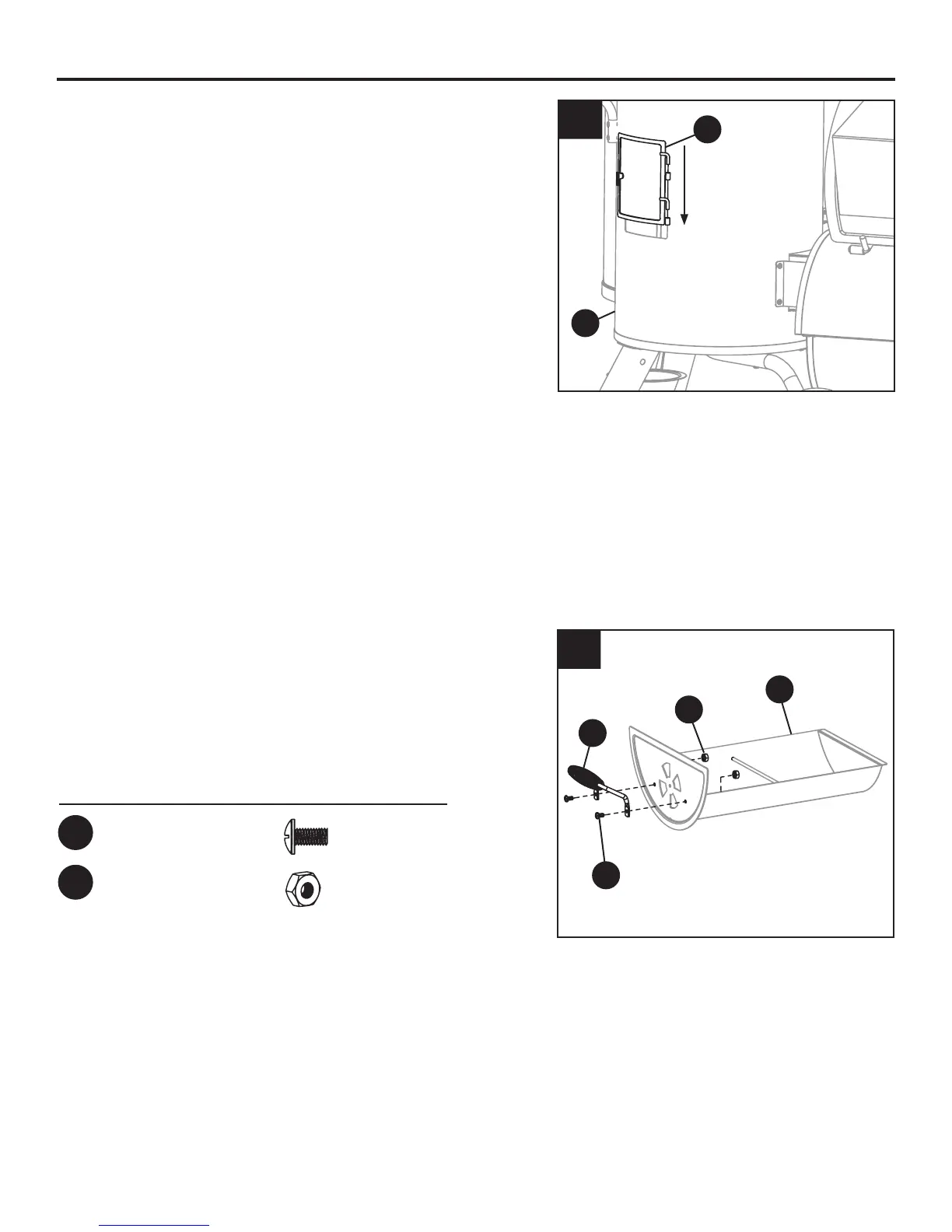

ASSEMBLY INSTRUCTIONS
19. Install the side access door (D) onto the
smoker body (A).
20. Attach the side handle (S) to the access tray (T)
using two M6 x 12 bolts (BB) and two M6 nuts (DD).
A
19
20
D
Hardware Used
BB
M6 x 12mm
Bolt
x 2
DD
M6 Nut
x 2
S
DD
BB
T
