Dyna-Glo DGSS1382VCS - Assembly Instructions - Smoker Body; Smoker Door Removal; Side Handle Installation

6

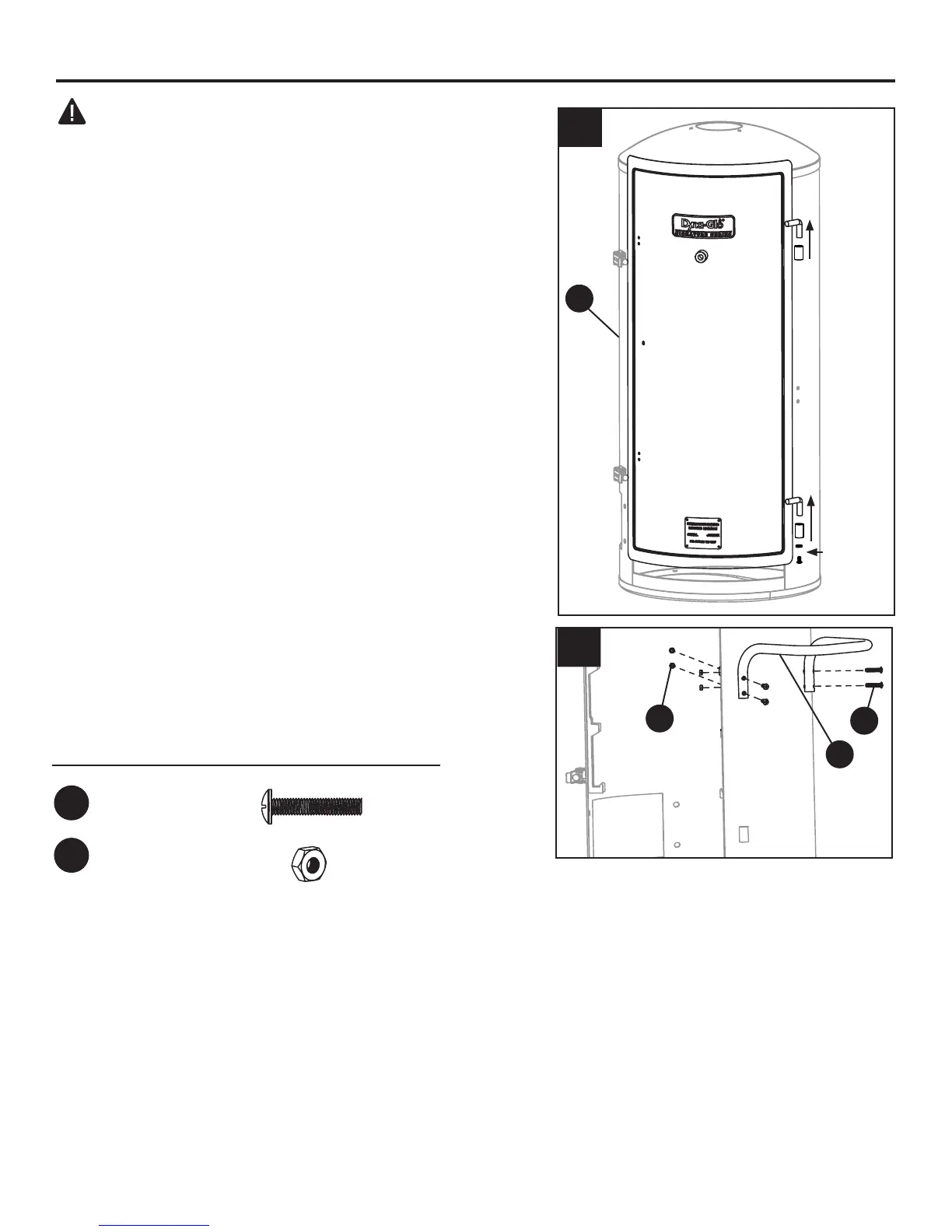

ASSEMBLY INSTRUCTIONS
CAUTION: This unit is HEAVY! Do not attempt to
stand the unit upright without assistance!
1. Remove the preinstalled bolt and washer from
the bottom door hinge on the smoker body (A).
Unlatch the smoker door and remove the door by
pulling up from hinges on smoker body (A).
2. Attach the side handle (F) using four M6 x 30 bolts
(AA) and four M6 nuts (DD).
Hardware Used
AA
M6 x 30mm
Bolt
x 4
1
2
F
DD
A
AA
Preinstalled
bolt and
washer
DD
M6 Nut
x 4
