Dyna-Glo DGSS1382VCS - Assembly Instructions - Offset Lid; Offset Lid Bracket Mounting; Offset Lid Section Assembly

8

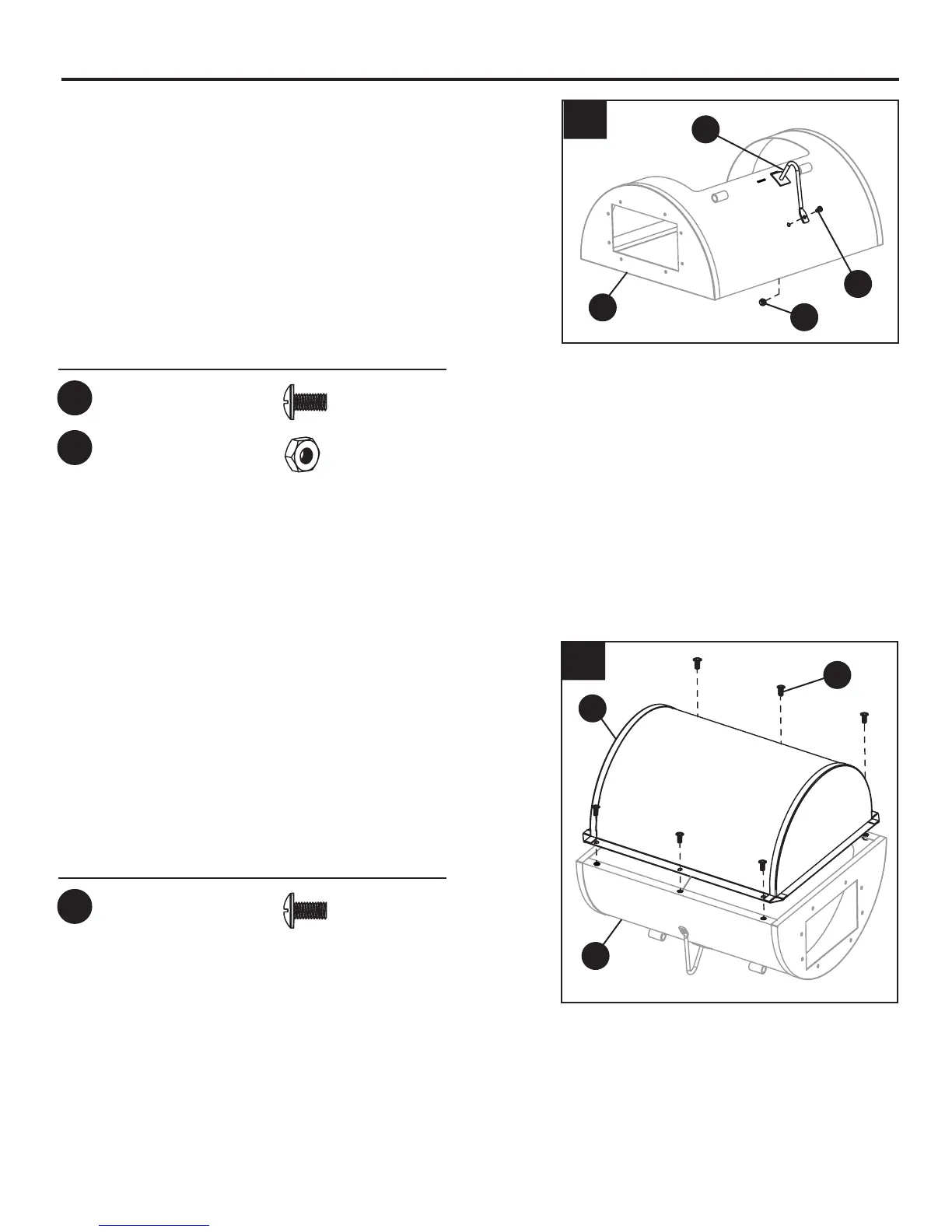

ASSEMBLY INSTRUCTIONS
5. Insert the edge of the offset lid bracket (Y) into
the slotted opening on the offset top section (W).
Attach using one M6 x 12 bolt (BB) and one
M6 nut (DD).
6. Attach the offset bottom section (U) to the top
section (W) using six M6 x 12 bolts (BB).
W
U
6
Hardware Used
BB
M6 x 12mm
Bolt
x 1
Y
W
BB
5
DD
M6 Nut
x 1
DD
BB
Hardware Used
BB
M6 x 12mm
Bolt
x 6
