The lithium ion battery pack may explode if not fitted, operated, handled, or disposed
correctly. Dispose always the used battery pack in accordance with the laws and
ordinances of your local authority.
Use only the batteries approved by Dynabook.
Check the battery’s terminals visually. If they are dirty, wipe them clean with a dry
cloth.
Take care not to press on the top or bottom of a SSD. Pressure may cause the data
loss or damage to the device.
4.12.2
Installing the Battery pack
To install the battery pack, follow the steps below.
1. Set the battery pack to the COVER ASSY and secure it with the screws.
2. Connect the BATTERY HARNESS to the connector CN8021 on the
System board.
4.13
SSD
4.13.1
Removing the SSD
To remove the SSD, follow the steps below .
1. Remove the the following screw and disconnect the SSD from the
connector CN1900 on the System board.

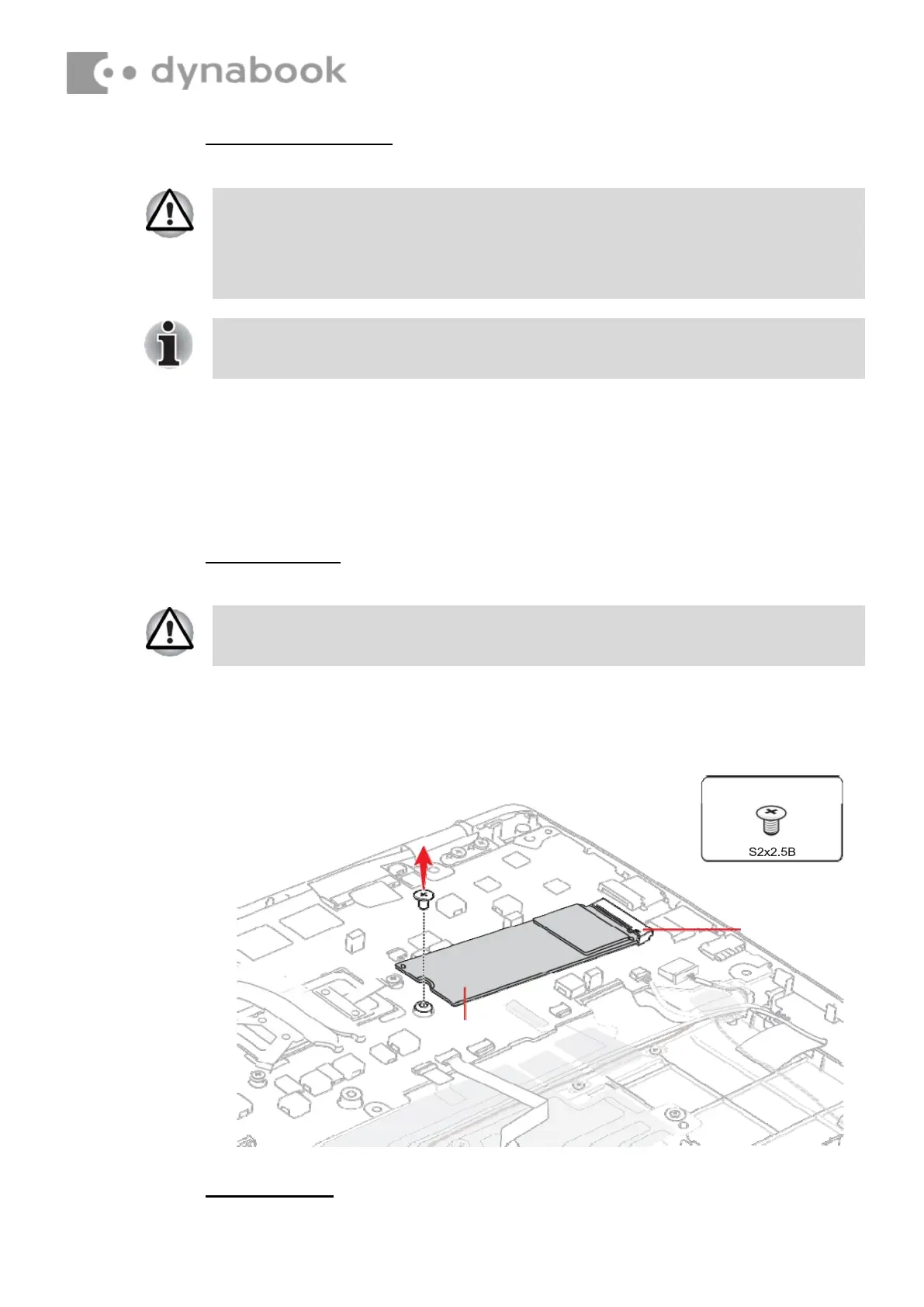

Figure 4-7 Removing the SSD
4.13.2
Installing the SSD
To install the SSD, follow the steps below.
