dynabook Portege X30L-K Series User Manual

Do not reuse the removed camera module. Be sure to use new camera module.

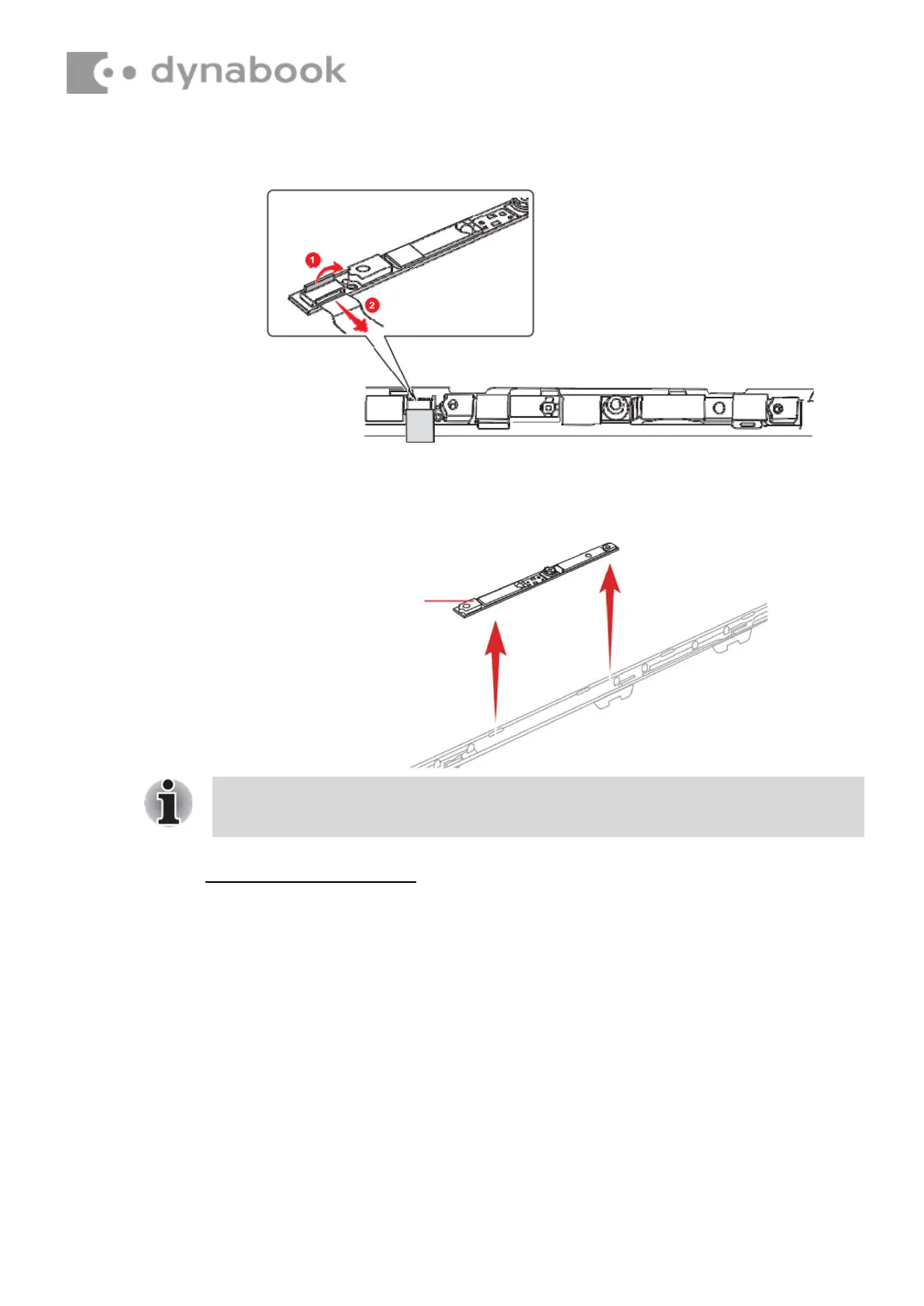

Figure 4-47 Removing the camera module (2)
4. Peel off the camera module from the slot of the LCD cover.
Figure 4-48 Removing the camera module (3)
Camera module
4.26.2 Installing the Camera module
To install the camera module, follow the steps below.
1. Peel off a protection sheet from a new camera module.
2. Stick the new camera module to the LCD cover.
3. Connect the HD web CAM FPC/IR CAM FPC to the connector on the
camera module and stick the HD web CAM FPC/IR CAM FPC to the
LCD cover in place.
4. Stick two pieces of AL TAPE and GASKET on the new camera
module.
