Open

Lock

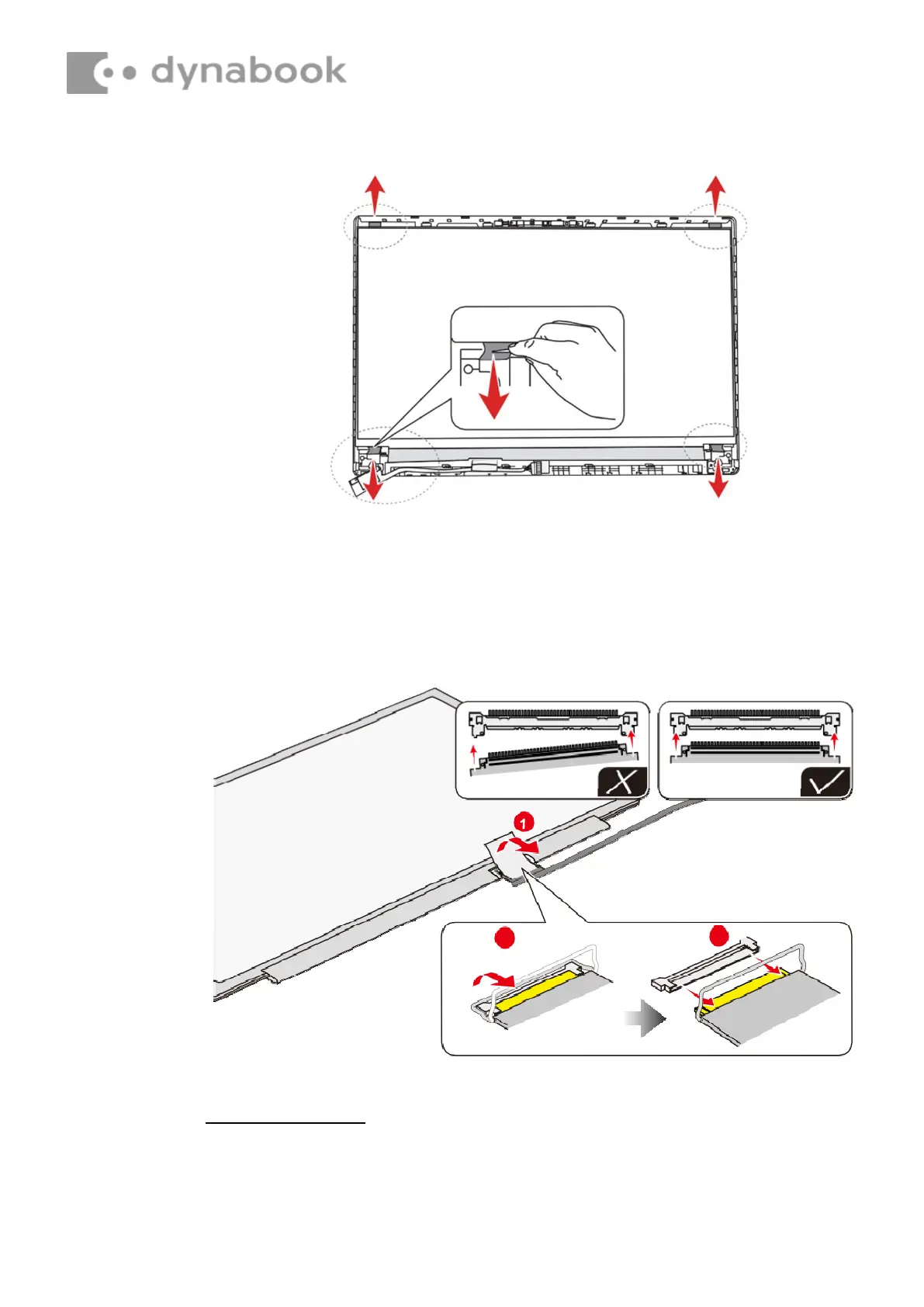

Figure 4-40 Removing the LCD unit (4)

6. Take out the LCD unit.

Be careful that the LCD harness is connected to the connector on the back of the LCD

unit.

7. Peel the pull tape and disconnect the LCD harness from the connector on

the LCD unit.

Figure 4-41 Removing the LCD unit (5)

4.25.2

Installing the LCD unit

To install the LCD unit, follow the steps below.
